Section 02 TROUBLESHOOTING
Sub-Section 04 (TRANSMISSION AND BRAKE SYSTEMS)
02-04-6

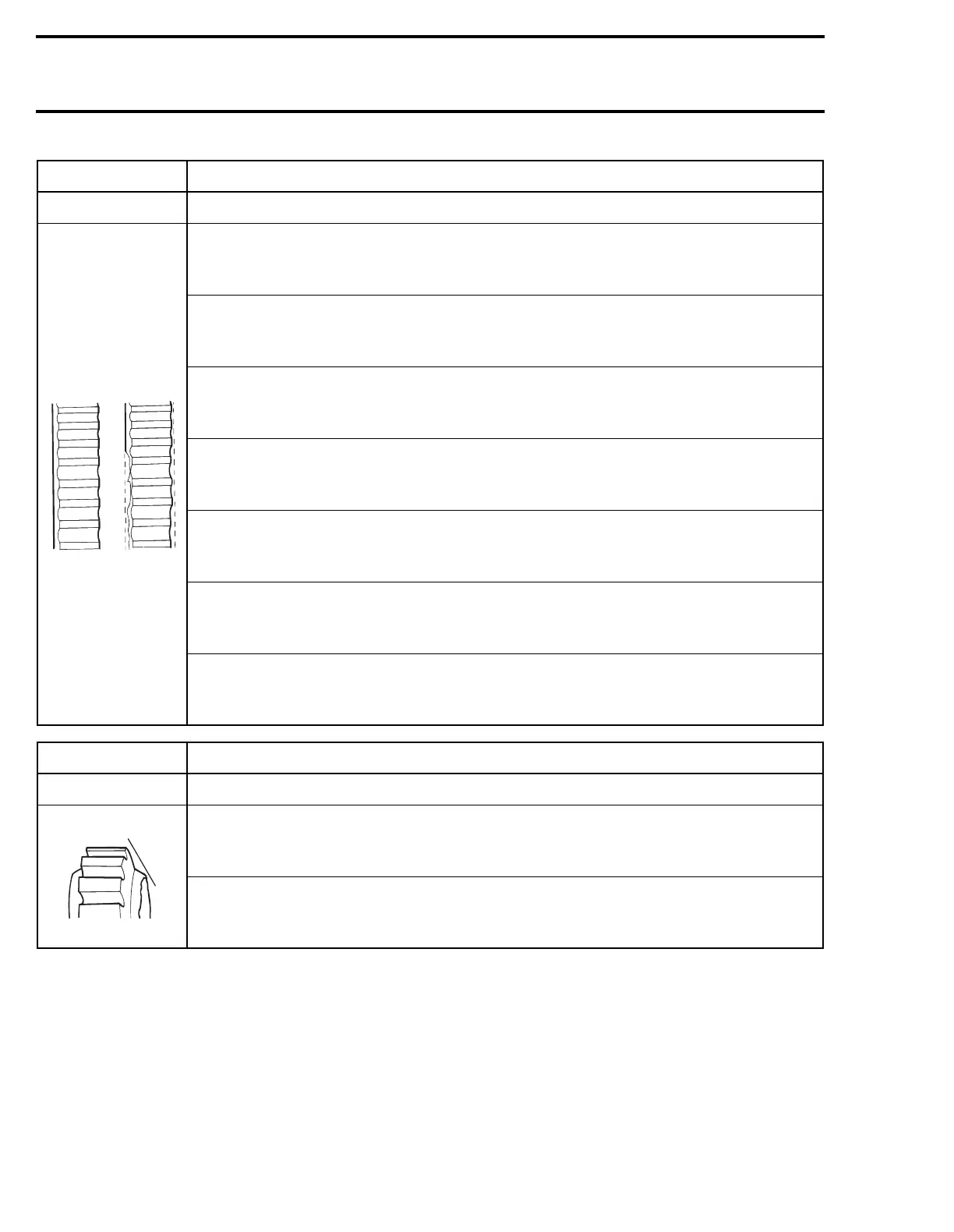

SYMPTOM BELT WORN NARROW IN ONE SECTION
CONDITION NORMAL USE
Test/Inspection 1. Check if parking brake is released.
a.Parking brake is engaged.
Release parking brake.
2. Check track tension/alignment.
a.Frozen or too tight track.
Liberate track from ice or check track tension and alignment.
3. Check drive pulley.
a.Drive pulley not functionning properly.
Repair or replace drive pulley.
4. Check idle speed.
a.Engine idle speed too high.
Adjust according to specification.
5. Check drive belt length.
a.Incorrect belt length.
Replace belt with an appropriate drive belt (refer to TECHNICAL DATA 09).
6. Check distance between pulleys.
a.Incorrect pulley distance.
Readjust according to specification.
7. Check belt deflection.
a.Deflection is too small.
Adjust according to specification.
SYMPTOM BELT SIDES WORN CONCAVE
CONDITION NORMAL USE
Test/Inspection 1. Check pulley half surfaces.
a.Rough or scratched pulley half surfaces.
Repair or replace.
2. Check drive belt identification number.
a.Unspecified type of belt.
Replace belt with an appropriate drive belt (refer to TECHNICAL DATA 09).
