Section 03 ENGINE
Sub-Section 02 (443 AND 503 ENGINE TYPES)
03-02-10

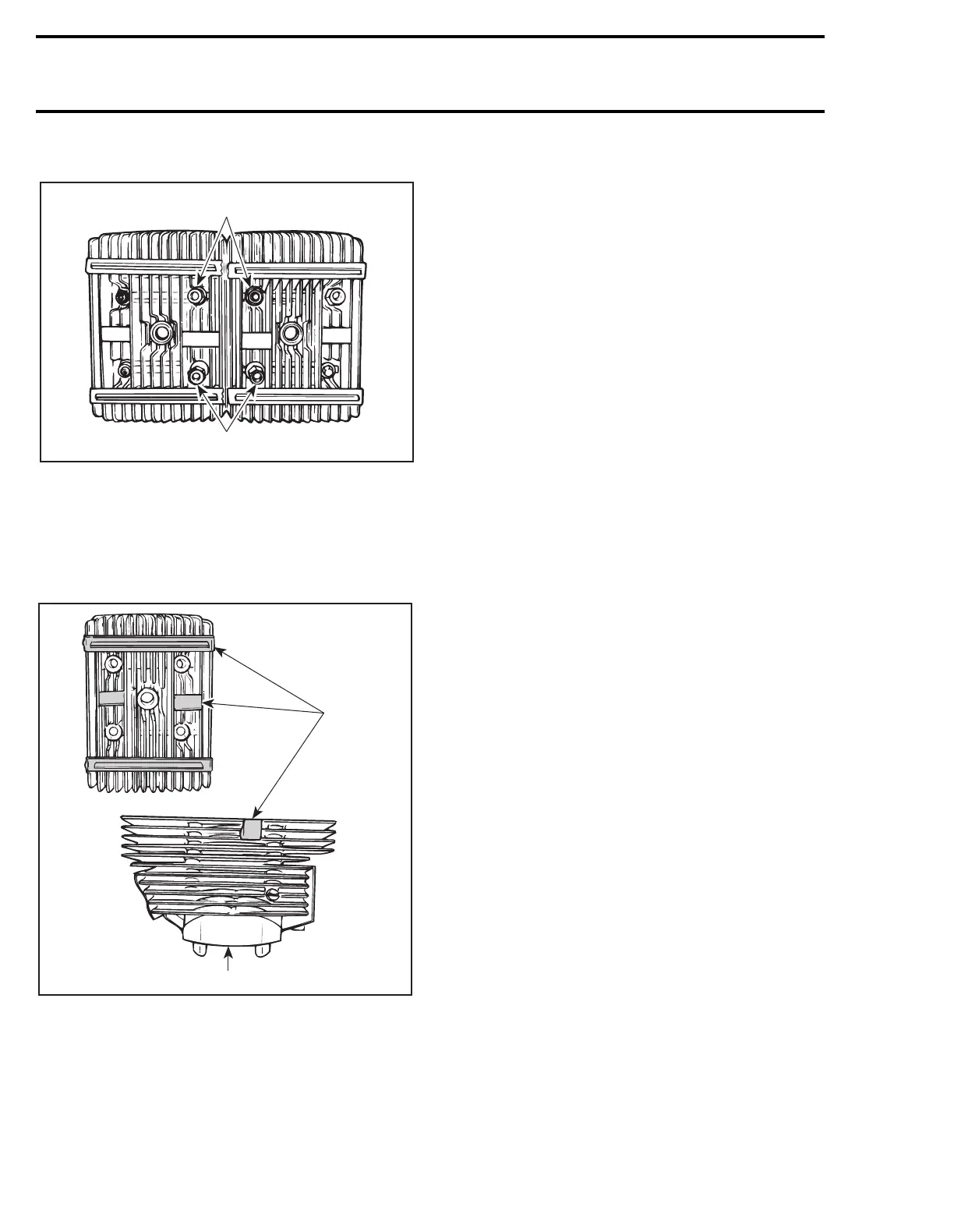

Position distance nuts
no. 2
as illustrated.
1. Distance nuts
Cross torque cylinder head nuts
nos. 1
and
2
to
22 N•m (16 lbf•ft); torque each cylinder head indi-
vidually.
For proper position of noise dampers
nos. 3, 4
and
6
, refer to the following illustrations.
1. Noise dampers
2. PTO side cylinder
Install armature plate, fan housing and then air de-
flector.
Install a gasket on each side of the air deflector.
Torque intake socket bolts to 22 N•m (16 lbf•ft).
A17C06A
1
1
1
A17C0SA
2
