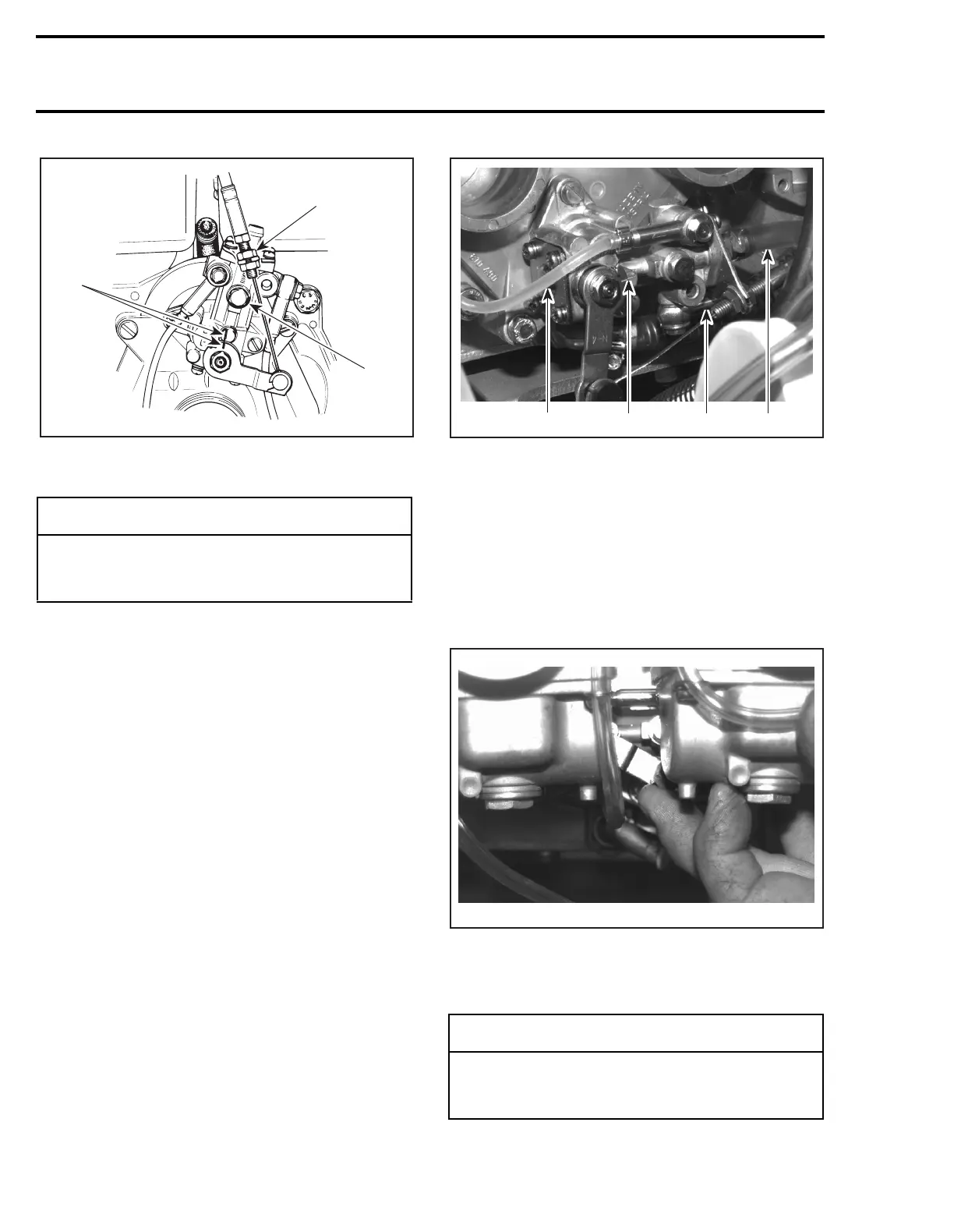

Section 03 ENGINE
Sub-Section 06 (OIL INJECTION SYSTEM)
03-06-4
1. Adjuster nut
2. Bleeder screw
3. Marks in line
To Bleed Oil Lines
S-Series Only
Remove air silencer and move carburetors aside.
All Models
Bleed main oil line (between tank and pump) by
loosening the bleeder screw until air has escaped
from the line. Add injection oil as required.
Check also for proper pump lever adjustment.
Marks must aligned when throttle lever is activat-
ed just enough to take all cable play.
1. Small oil line
2. Marks aligned
3. Main oil line
Reinstall all parts except air silencer.
Bleed the small oil line between pump and intake
manifold by running engine at idle while holding
the pump lever in fully open position.
NOTE:
If the air silencer has been rein-
stalled, make a J hook out of mechanical
wire to lift the lever.
TYPICAL ā ENGINE AT IDLE
S-Series Only
Reinstall air silencer.
-
CAUTION
Proper oil injection pump adjustment is very
important. Any delay in the opening of the
pump can result in serious engine damage.
A13C0PA
1
2
3
ā
WARNING
Ensure not to operate carburetor throttle
mechanism. Secure the rear of the vehicle
on a stand.
A15C2DA
1 213
A03C1AA
To Next Page
