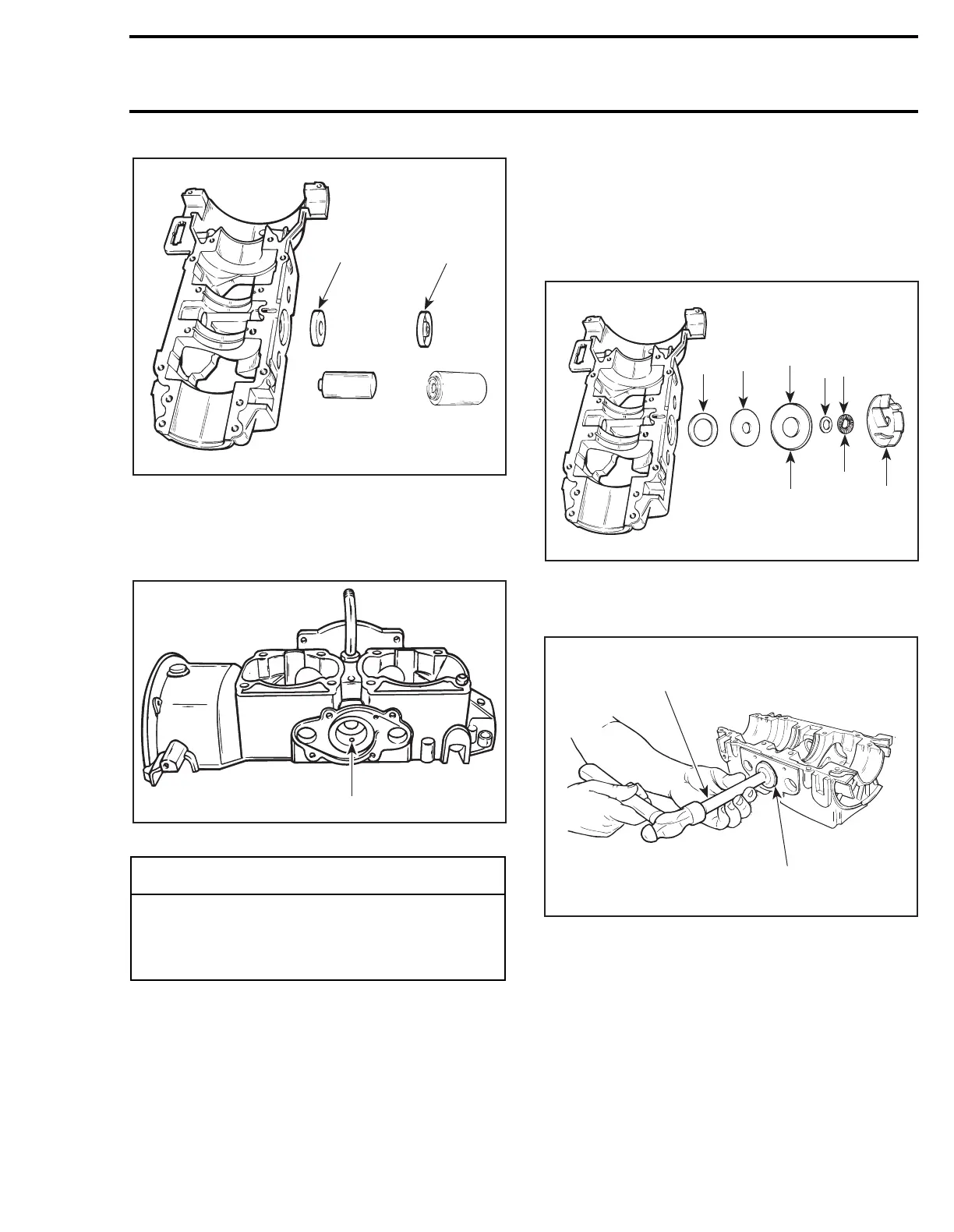

1. Rotary valve side
2. Oil seal
3. Coolant seal
Make sure not to obstruct draining hole. Position
seals so that hole is between them.
1. Draining hole
NOTE:
The draining hole is used to detect
seal malfunction. If you notice oil or coolant
at the exit of the draining hole, this means that oil
seal or coolant seal leaks.
– Install large shim and pack space with
Molykote 111 (P/N 413 7070 00).
– Install rubber washer then support plate with
its flange towards pump impeller. Use impeller
support plate pusher (P/N 529 0207 00) for
proper installation.
– Install small thrust washer then friction washer
positioning its grooves against pump impeller.
1. Large shim 5. Friction washer
2. Rubber washer 6. Flange this side
3. Support plate 7. Grooves this side
4. Small thrust washer 8. Pump impeller
1. Support plate
NOTE:
After seals installation, check if the
water pump end bearing is correctly posi-
tioned with bearing pusher (P/N 420 8765 00).
-
CAUTION
Failure to position the seals as specified may
cause the seal spring to be corroded by cool-
ant. Severe damage may occur if these no-
tices are disregarded.
A16C0WA
1
2
3
420 8765 12
420 8770 50
A16C0RA
1
'
A16C0XA
1
2
3
4
5
6
7
8
A16C15A
529 0207 00
1
'
