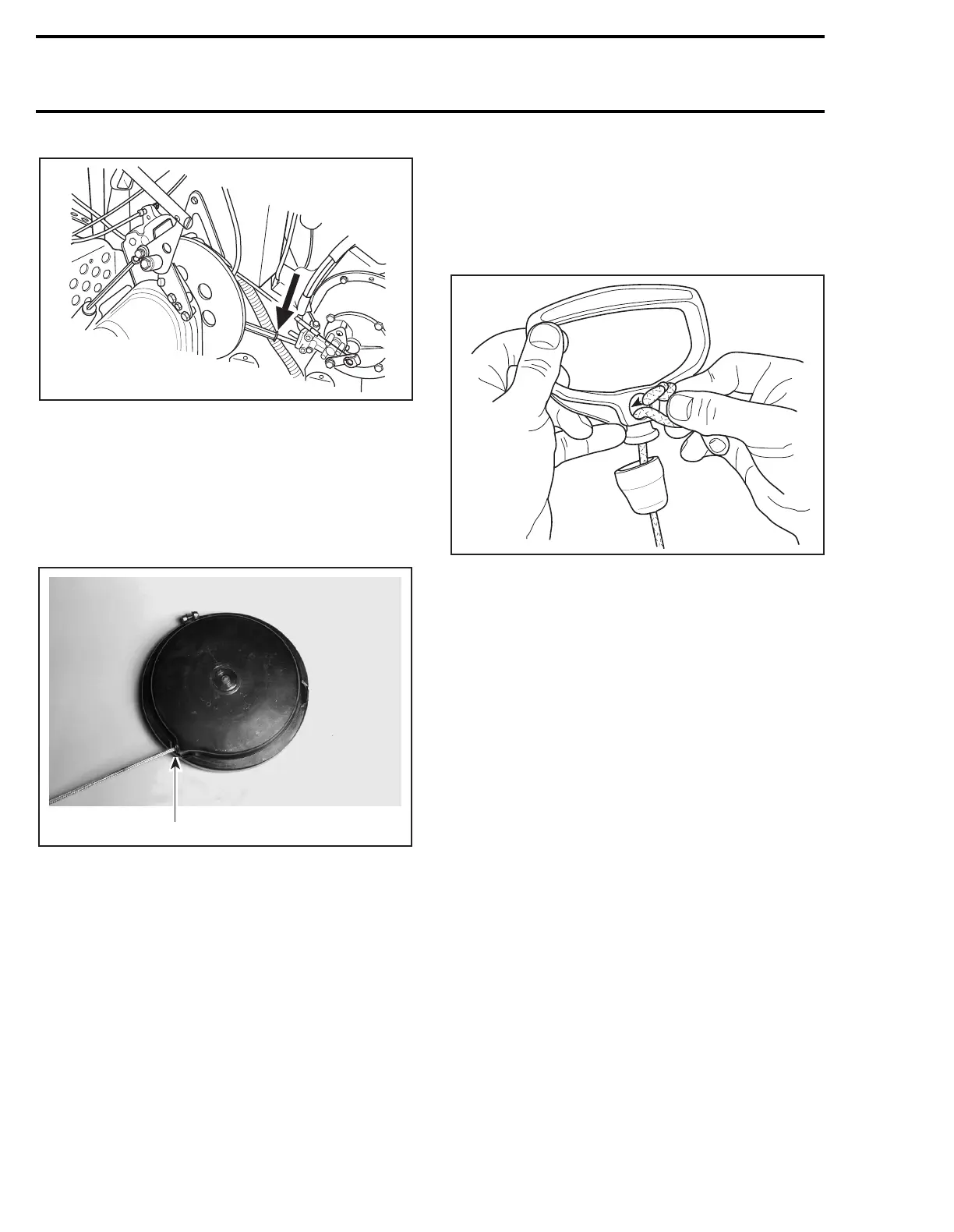

Section 03 ENGINE
Sub-Section 10 (REWIND STARTER)
03-10-4
All Engines Except 583 MX Z, 583 Summit and
670
Reinstall rewind starter assembly on engine.
583 MX Z, 583 Summit and 670 Only
Install rewind starter on damper ring matching
notches and embosses.
1. Notch
Prior to installing starter grip
no. 16
on new rope,
it is first necessary to fuse the rope end with a lit
match. pass rope through rubber buffer
no. 15
and starter grip and tie a knot in the rope end. fuse
the knot with a lit match then insert rope end
down and pull the starter grip over the knot.
TYPICAL
A03C0VA
A01C56A
1
A01C18A
