Section 05 ELECTRICAL
Sub-Section 03 (IGNITION TIMING)
05-03-6

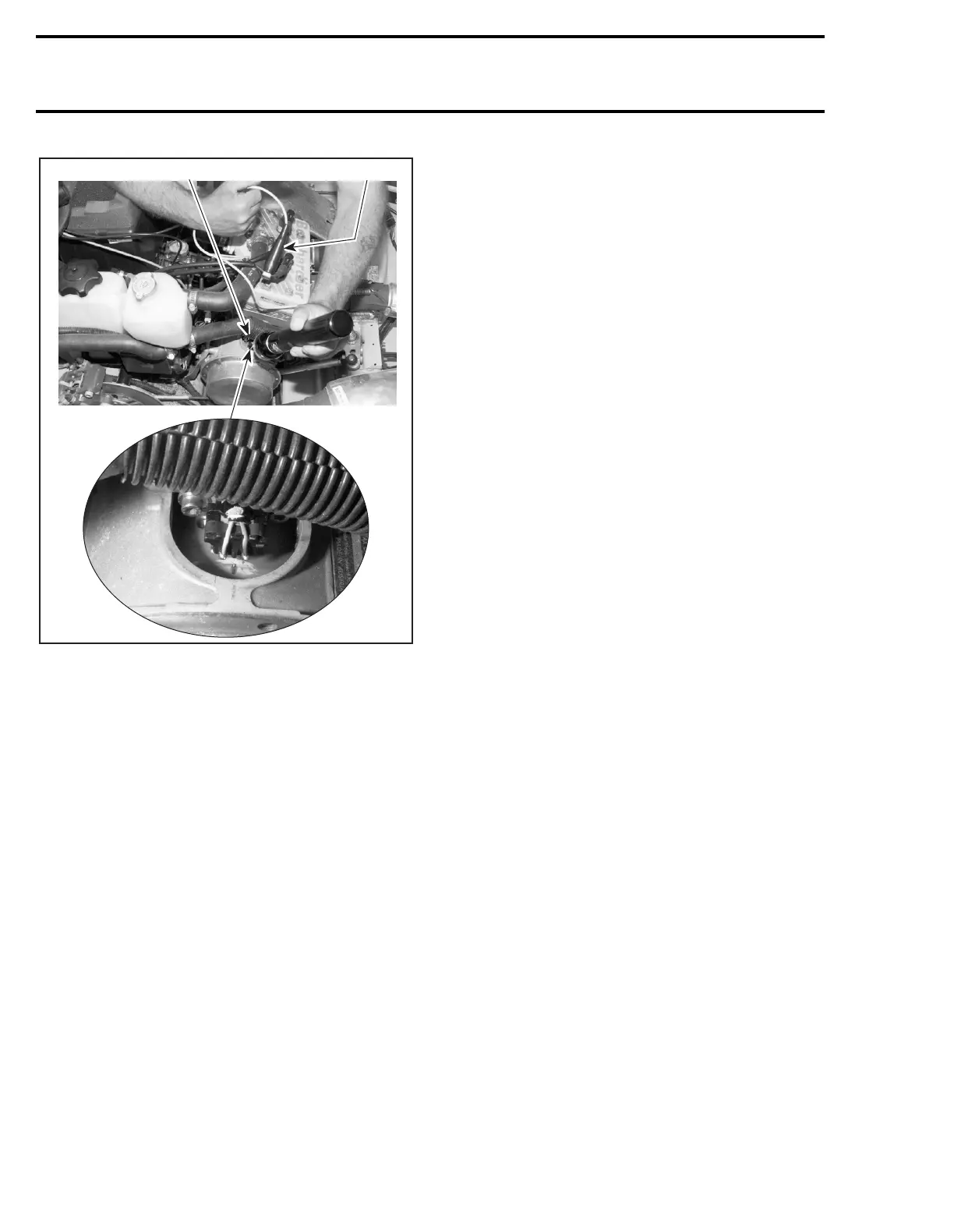

TYPICAL
1. Timing light pick-up on MAG side
2. Timing inspection hole
The magneto/damper mark must be aligned with
center mark. If not, move trigger coil as explained
above and recheck ignition timing. Tolerance is ±
1°.
If the marks still do not align, a faulty trigger coil
(check proper grounding of coil) or a faulty CDI
module could be the cause: substitute one part at
a time and recheck timing marks (check connec-
tors condition prior to substituting any part).
