Section 06 REAR SUSPENSION
Sub-Section 02 (SC-10 SUSPENSIONS (ALL VERSIONS))
06-02-7
25, ACM Support
Remove threaded rod ass’y. Loosen rear axle
screw on one side and rear shackle screws.
Unbolt MCA support and remove it.
Remove cup.
15, Rear Shock
Lift rear of vehicle.
Slightly turn adjusting cam to expose spring end.

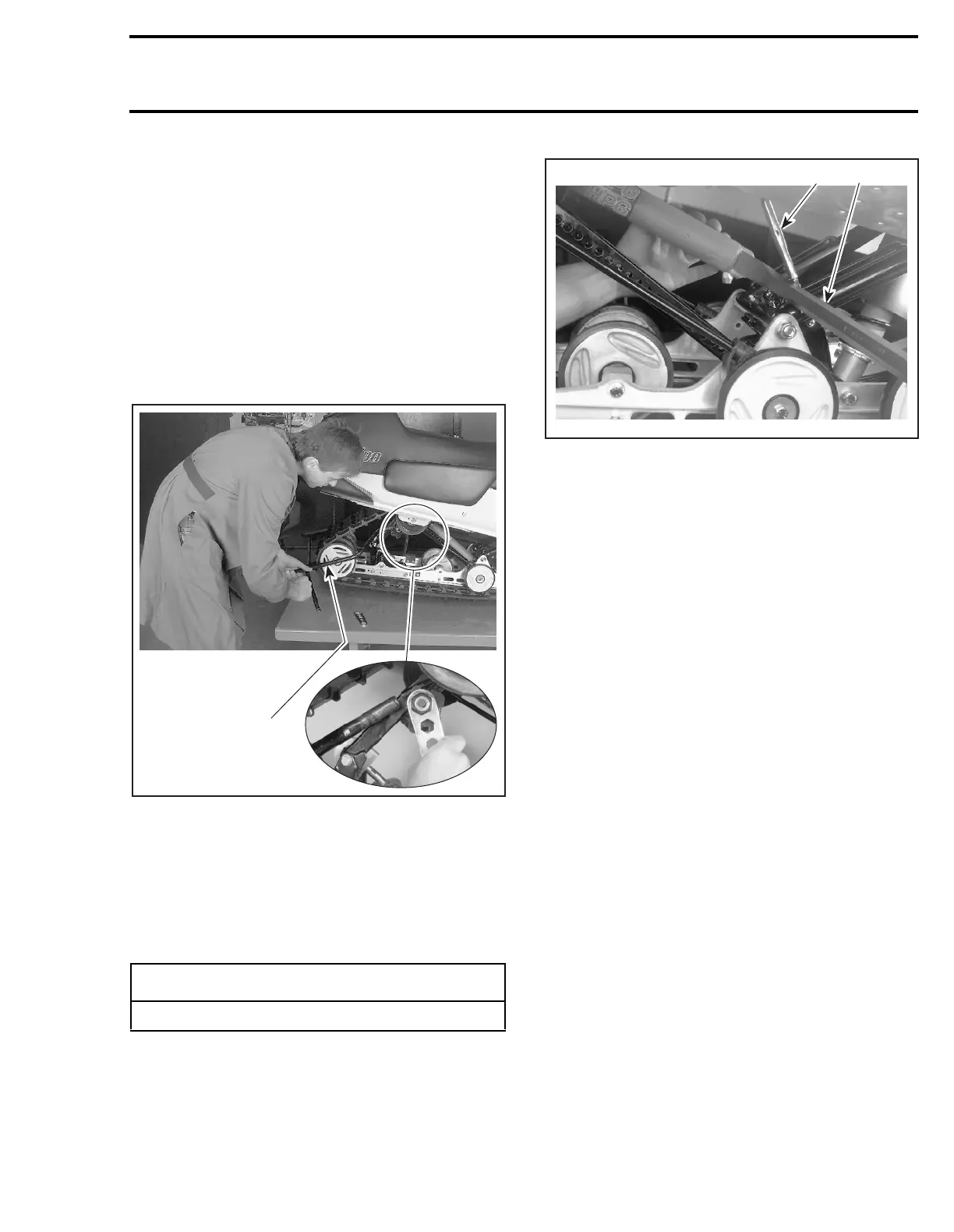

Using spring installer (P/N 529 0050 00), remove
left spring from adjusting cam.
Remove nut on top end of shock.
Remove nut on bottom end of shock. Pry up
shock bottom end to ease removing bolt (gas
shock only). See installation illustration below.
Installation is reverse of removal procedure. To
easily compress gas shock absorber, use a pry bar
and locking pliers as a stopper.
1. Locking pliers
2. Pry bar
All Models
12, Front Shock
Unfasten one end of stopper strap.
Unbolt shock and remove it.
MX Z 440 Only
At installation, Schrader valve must face rearward
and rubber boot opening forward.
All Models
2, Rear Spring
Remove spring ends from adjusting cams.
Unbolt rear arm top axle from chassis.
All Liquid Cooled Models
Unscrew set screws from locking ring at each end
of top axle.
All Models
Remove locking rings (spacers on fan cooled
models) and top idler wheels.
Remove springs.
-
CAUTION
Take care not to damage grease fitting.
529 0050 00
A03F2FA
A03F1PA
1
2
