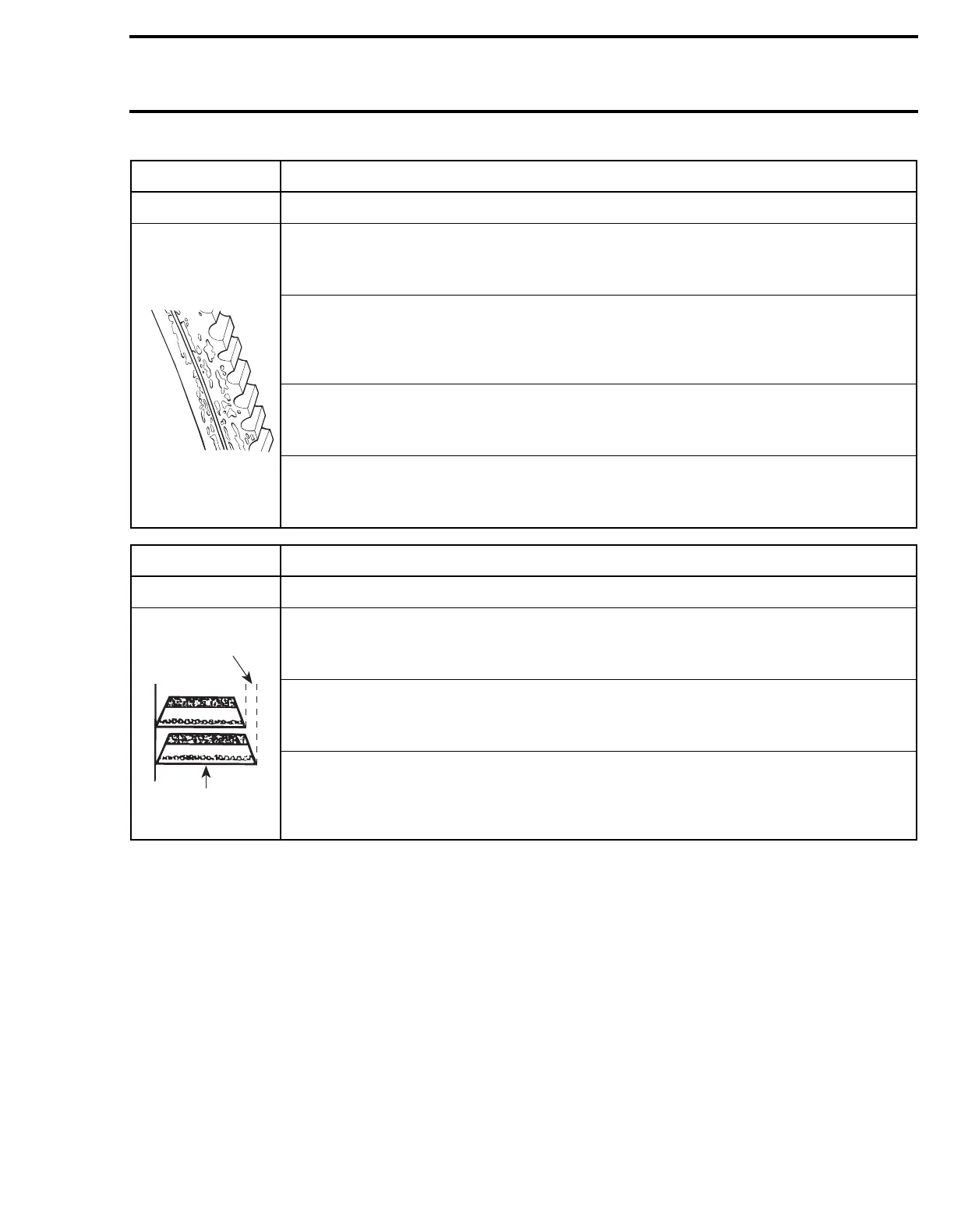

Section 02 TROUBLESHOOTING
Sub-Section 04 (TRANSMISSION AND BRAKE SYSTEMS)
02-04-5
SYMPTOM BELT GLAZED EXCESSIVELY OR HAVING BAKED APPEARANCE
CONDITION NORMAL USE
Test/Inspection
A00D0AY
1. Check if drive pulley bushings are worn.
a.Insufficient pressure on belt sides.
Replace bushing.
2. Check condition of drive pulley fixed half shaft.
a.Rusted drive or driven pulley shafts.
Clean shaft with fine steel woof and lubricate with anti-seize lubricant
(If applicable only).
3. Check if pulley halves are clean.
a.Oil on pulley surfaces.
Clean pulley halves.
4. Check pulley calibration.
a.Improper pulley calibration.
Calibrate according to specification.
SYMPTOM BELT WORN EXCESSIVELY IN TOP WIDTH
CONDITION NORMAL USE
Test/Inspection
A00D0BY
1. Check drive pulley.
a.Excessive slippage due to irregular outward actuation movement of drive pulley.
Carry out drive pulley inspection.
2. Check drive belt identification number.
a.Improper belt angle. (wrong type of belt).
Replace belt with an appropriate drive belt.
3. Check drive belt width.
a.Considerable use.
Replace belt if 3 mm (1/8”) less than recommended width
(refer to TECHNICAL DATA 09).
Considerable
use
New belt
