Section 02 TROUBLESHOOTING
Sub-Section 04 (TRANSMISSION AND BRAKE SYSTEMS)
02-04-7

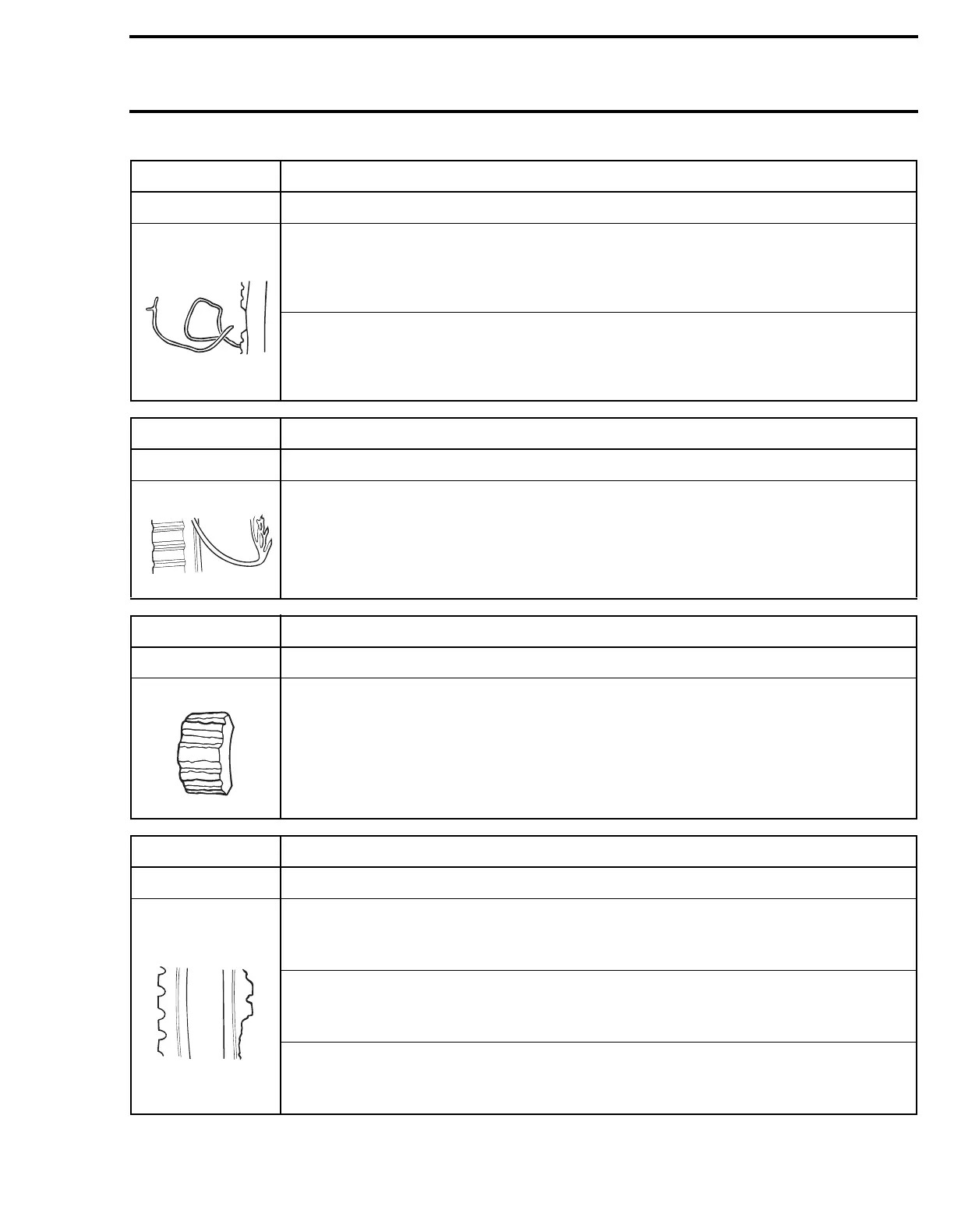

SYMPTOM BELT DISINTEGRATION
CONDITION NORMAL USE
Test/Inspection
A00D0EY
1. Check drive belt identification number.
a.Excessive belt speed.
Using unspecified type of belt. Replace belt with proper type of belt
(refer to TECHNICAL DATA 09).
2. Check if pulley halves are clean.
a.Oil on pulley surfaces.
Clean pulley surfaces with fine emery cloth and wipe clean using Loctite Safety
Solvent (P/N 413 7082 00) and a cloth.
SYMPTOM BELT EDGE CORD BREAKAGE
CONDITION NORMAL USE
Test/Inspection
A00D0FY
1. Check pulley alignment.
a.Pulley misalignment.
Align pulley according to specifications (refer to TECHNICAL DATA 09).
SYMPTOM FLEX CRACKS BETWEEN COGS
CONDITION NORMAL USE
Test/Inspection
A00D0GY
1. Check drive belt condition.
a.Considerable use, belt wearing out.
Replace.
SYMPTOM SHEARED COGS, COMPRESSION SECTION FRACTURED OR TORN
CONDITION NORMAL USE
Test/Inspection
A00D0HY
1. Check drive belt rotational direction.
a.Improper belt installation.
Replace.
2. Check if drive belt rubs against components.
a.Belt rubbing on stationary object.
Relocate components.
3. Check drive pulley.
a.Violent engagement of drive pulley.
Check drive pulley engagement speed, drive pulley bushings and components.
