Also check for proper cylinder alignment.

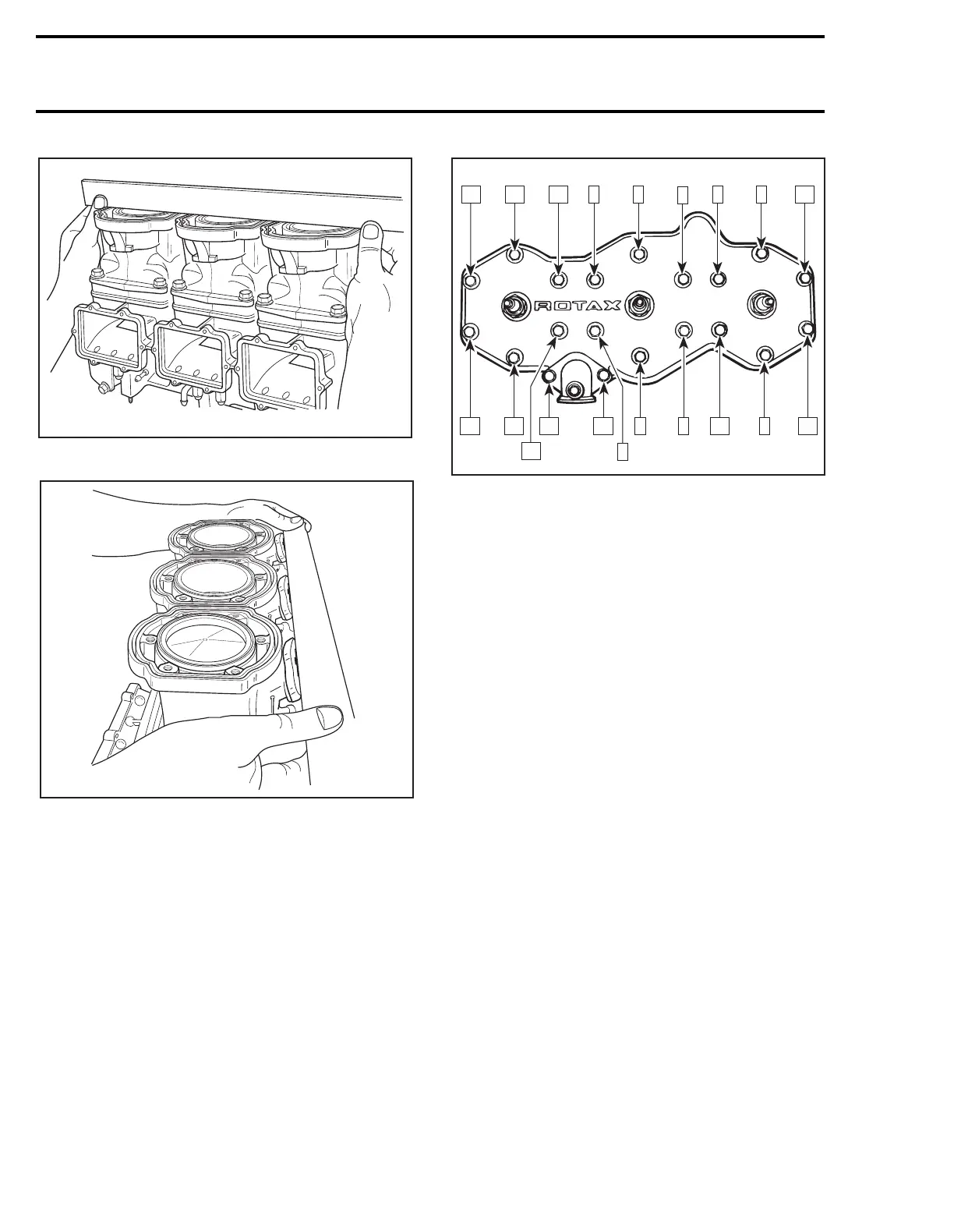

At assembly, torque cylinder head screws in the
following illustrated sequence. Tightening torques
are:
M6 screws: 12 N•m (106 Ibf•
in
)
M8 screws: 30 N•m (22 Ibf•ft)
