Section 03 ENGINE
Sub-Section 08 (CARBURETOR AND FUEL PUMP)
03-08-9
Throttle Slide Adjustment
All Models Except Mach Z/Z LT
For maximum performance, correct carburetor
throttle slide adjustment is critical.
The following method should be used with engine
turned off:
–
Idle speed
screw must be completely un-
screwed. It must not contact throttle slide.
Turn the
idle speed
screw clockwise until it con-
tacts the throttle slide then continue turning 2 ad-
ditional turns.
Repeat on the other carburetors. This will ensure
identical throttle slide preliminary idle setting. Re-
check carburetor synchronization. Adjust idle by
turning all idle speed screws of the same amount.
All Models Except Mach Z/Z LT
Throttle slide must be flush or 1.0 mm (.040 in)
lower than the top of carburetor
oulet
bore (en-
gine side).

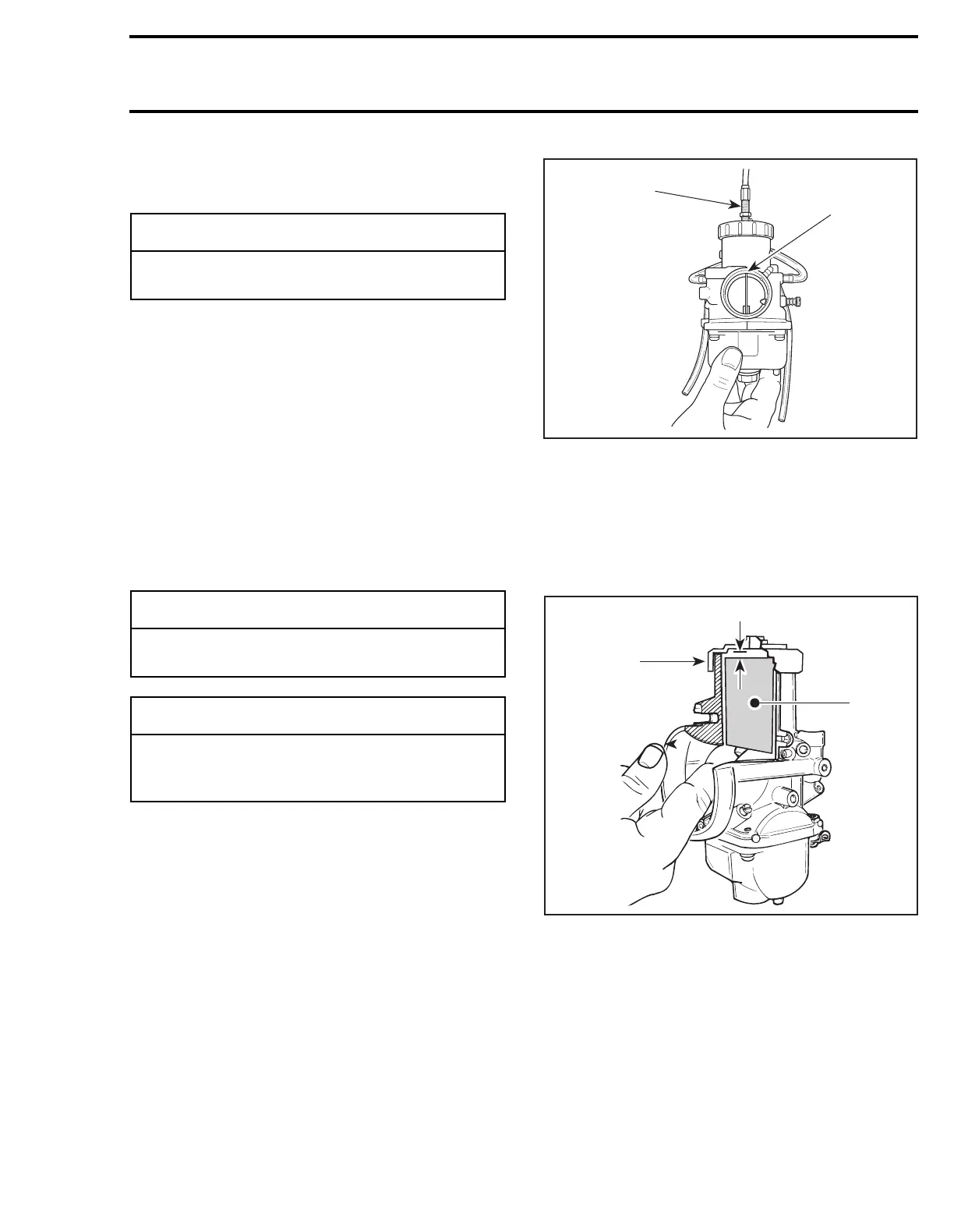

THROTTLE LEVER AGAINST HANDLE GRIP
1. Throttle cable adjuster
2. Throttle slide flush or 1.0 mm (.040 in) lower than carburetor
oulet bore (engine side)
Once carburetor adjustment is performed, check
that
with the throttle lever fully depressed
,
there is a free play between the carburetor cover
and top of throttle slide.
THROTTLE LEVER AGAINST HANDLE GRIP
1. Cover
2. Free play
3. Throttle slide
◆
WARNING
Ensure the engine is turned OFF, prior to per-
forming the throttle slide adjustment.
-
CAUTION
Make sure all carburetors start to operate
simultaneously.
-
CAUTION
The oil injection pump adjustment must be
checked each time carburetor is adjusted.
Refer to OIL INJECTION SYSTEM 03-05.
A01C3MA
1
2
A00C3FA
1
2
3
