Section 04 TRANSMISSION
Sub-Section 04 (DRIVEN PULLEY)
04-04-6
Pulley Alignment and Drive Belt
Deflection
Refer to PULLEY DISTANCE AND ALIGNMENT
04-05 and DRIVE BELT 04-02 to perform adjust-
ments.

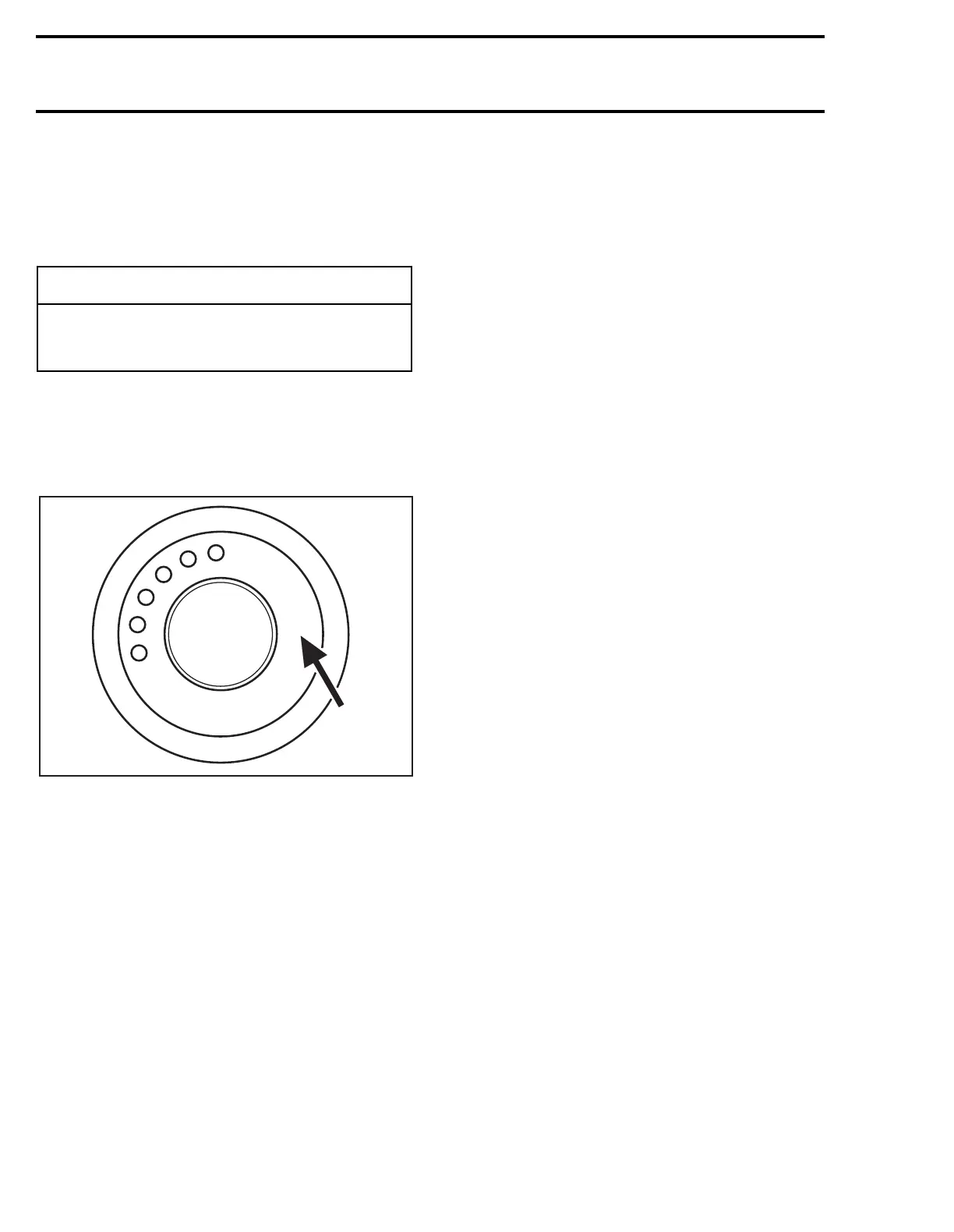

3, Outer Cam
Make sure to install proper cam. Refer to TECHNI-
CAL DATA 09-03.
Cam angle is identified on cam.
NOTE:
For high altitude regions, the
High Altitude
Technical Data
Booklet
(P/N 484 0648 00 and 484
0545 00 for binder) gives information about cali-
bration according to altitude.
-
CAUTION
Drive belt and pulley adjustments must always
be checked whenever pulleys have been re-
moved, replaced or disassembled.
B
O
M
B
A
R
D
I
E
R
6
5
4
3
2
1
44°
A24D06A
