Ski-Doo TOURING E LT 1997 - Page 818

Section 06 REAR SUSPENSION
Sub-Section 03 (DRIVE AXLE)
06-03-3
F-Series

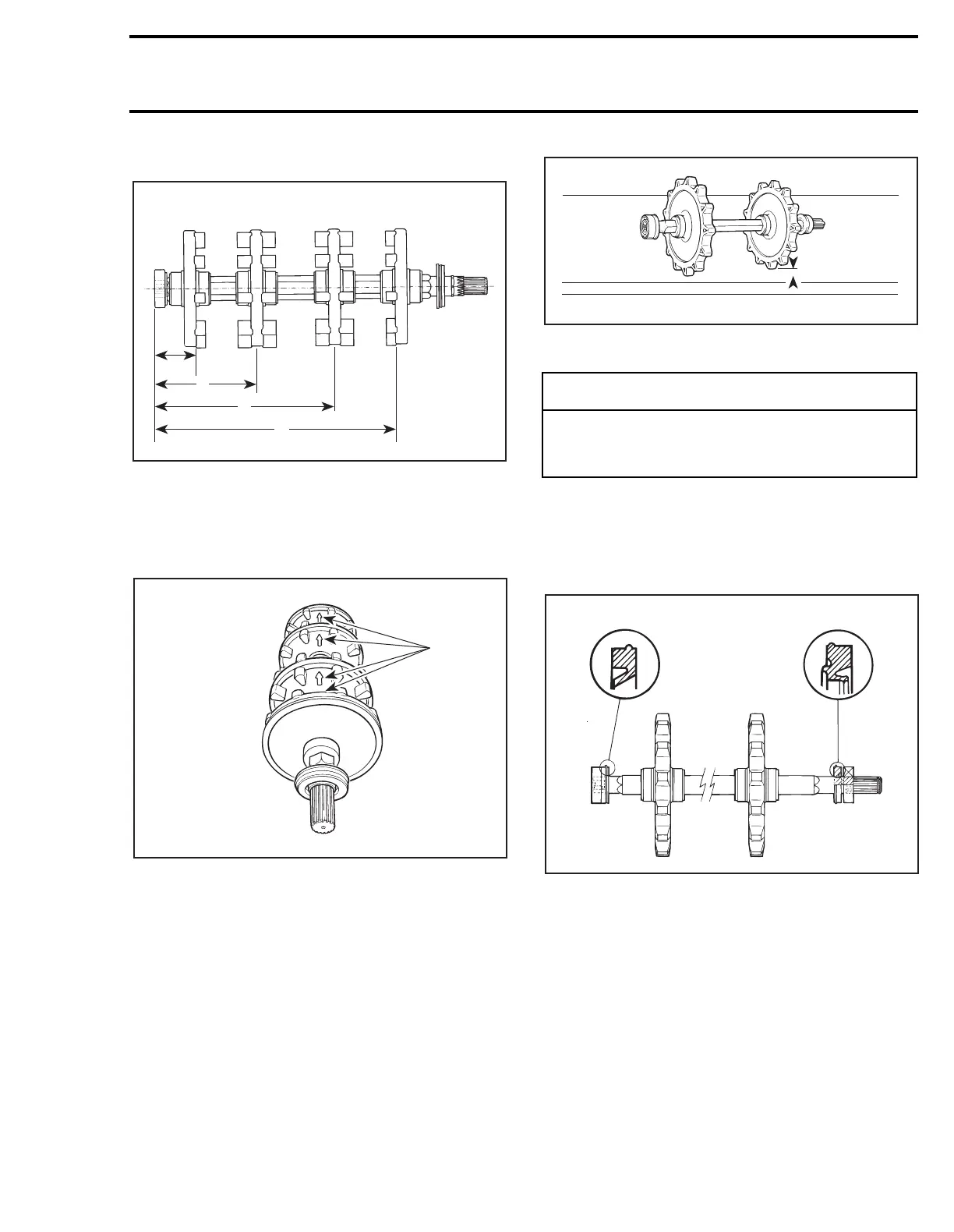

A. 65.8 mm (2-19/32 in)
B. 159.3 mm (6-17/64 in)
C. 282.3 mm (11-7/64 in)
D. 375.8 mm (14-51/64 in)
Ensure to align indexing marks of each sprocket
when assembling.
TYPICAL
1. Indexing marks aligned
The maximum desynchronization for the sprock-
ets is 1.5 mm (1/16 in).
To check this tolerance, place axle assembly on a
plane surface and measure the gap between
sprocket tooth and surface.
1. Plane surface
A. 1.5 mm (1/16 in) MAXIMUM
6,8, Drive Axle and Seal
When assembling drive axle, always position a
new seal on each end of drive axle (if applicable).
Locate seal lip as illustrated.
1. Grease seal type
2. Oil seal type
11, Bearing Protector
At assembly, flat side of bearing protector must
be against bearing.
A06D1XA
A
BB
C
D
A24D05A
1
-
CAUTION
The same sprocket must not be pressed
twice on the axle. If synchronization is found
to be defective, use a new sprocket.
A00F0AA
1
A
A00F0CA
1
2
