Section 05 DIGITAL PERFORMANCE MANAGEMENT (DPM) SYSTEM
The compensation ratio will depend on the air
temperature and the atmospheric pressure.
The higher the air temperature, the leaner the
air/fuel mixture.
The lower the atmospheric pressure, the leaner
the air/fuel mixture.
NOTE:
The atmospheric pressure decreases as
the altitude increases.

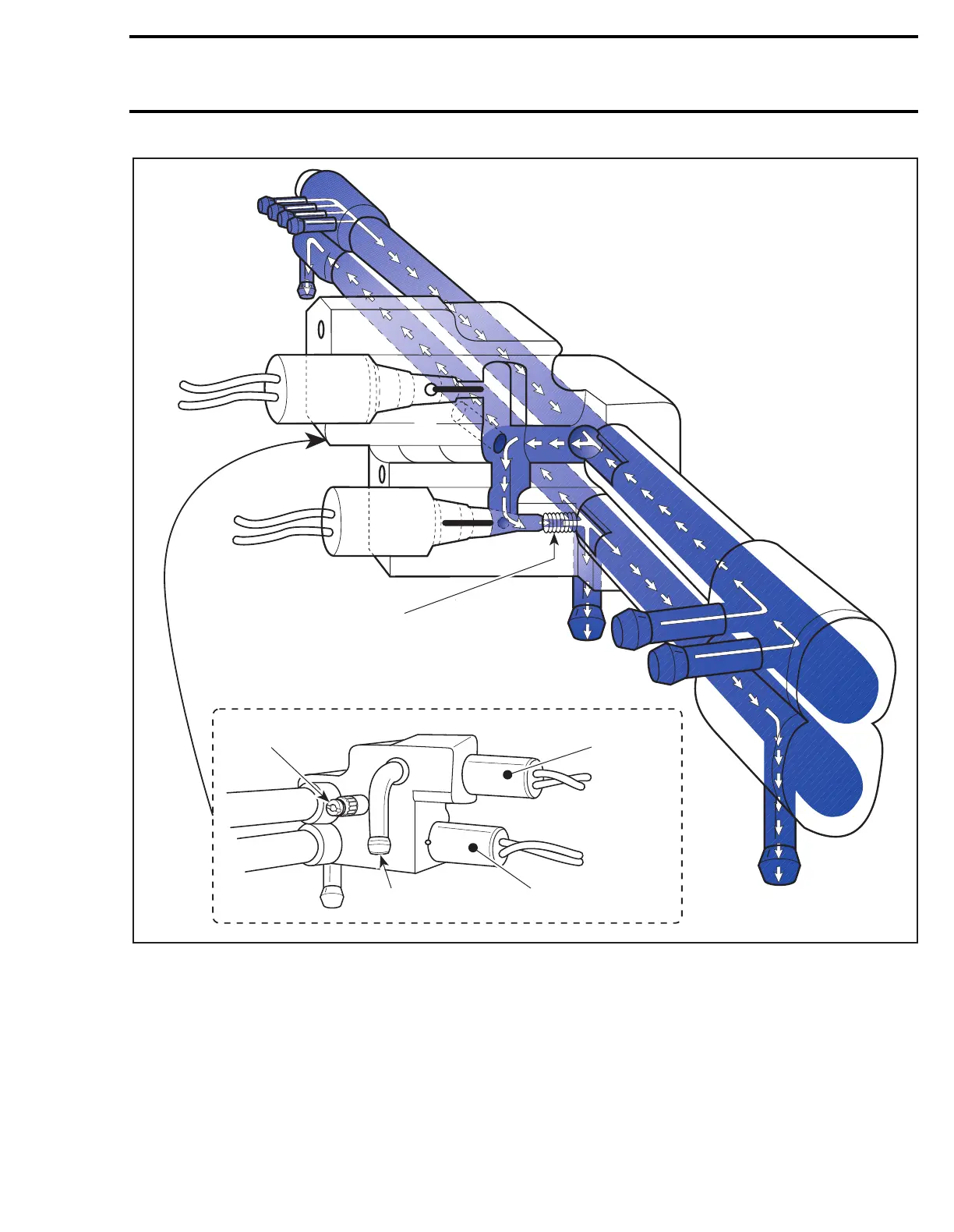

A06I0MS
FROM
CARBURETOR
(VENTURI)
CALIBRATED JET
AIR JET
ENRICHMENT
SOLENOID
FROM AIR
PUMP
REAR VIEW
ACTIVE
FROM
CARBURETOR
(VENTURI)
FROM
CARBURETOR
(VENTURI)
COMPENSATION
SOLENOID
