4-98
PDW-700/V1 (E)
The result appears.
3. Select “YES” by turning the MENU knob, and press
the MENU knob.
A confirmation screen appears.
If failed:
The following screen appears.
ACCELERATION OFFSET
ADJUSTING...FAILED
ACCELERATION OFFSET
PLACE DRIVE
HORIZONTALLY.
ARE YOU SURE?
*YES
NO
ACCELERATION OFFSET
ADJUSTING...COMPLETED
4-10-21. ACCELERATION OFFSET
This menu allows you to perform the offset adjustment of
the acceleration sensor.
n

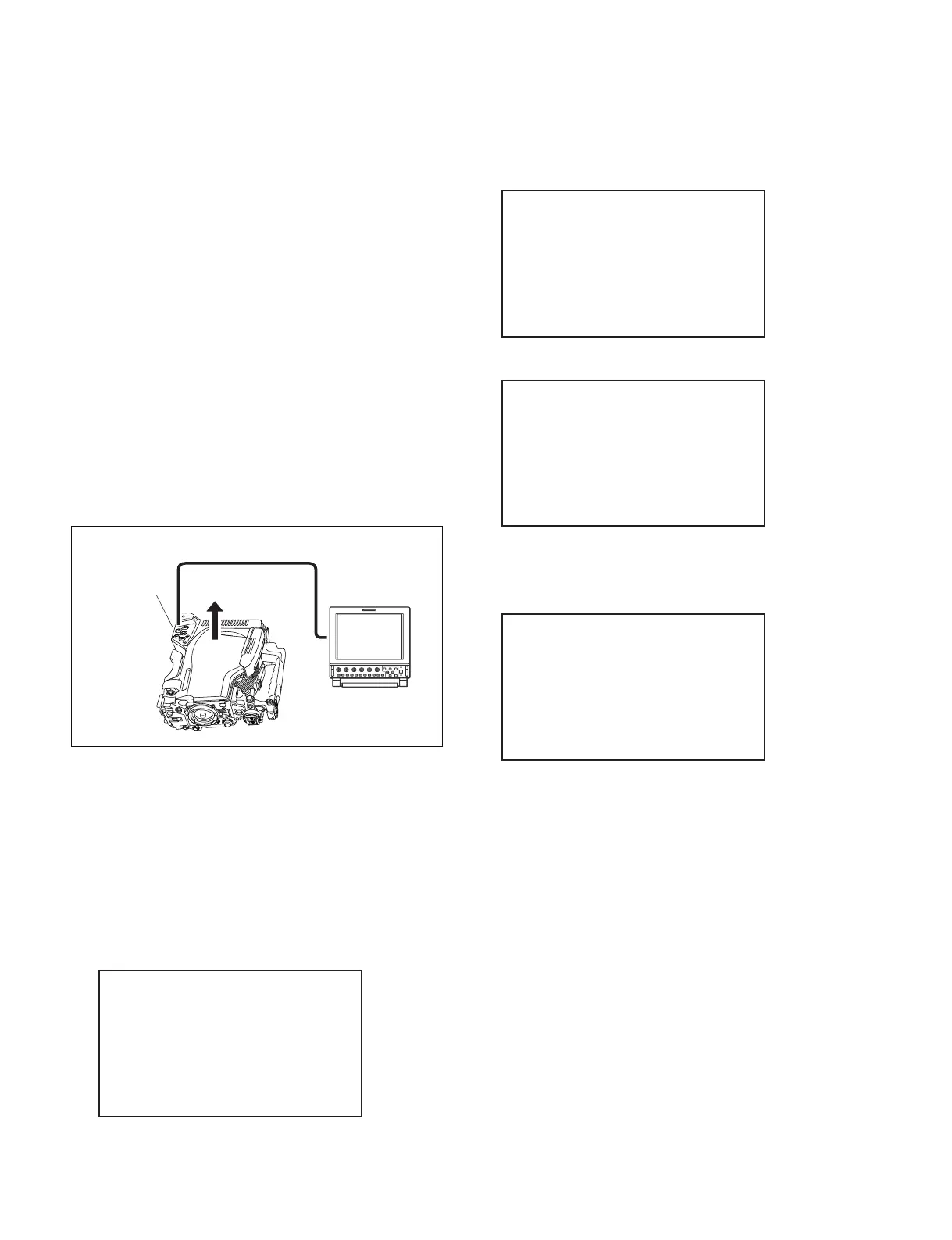

Be sure to place the unit horizontally with the outside
panel facing upward as shown in the figure when checking
the sensor.
The servo operation is not ensured if the optical drive is
incorrectly placed.
Preparation:
1. Place the unit with the outside panel facing upward as
shown in the figure.
2. Connect the component cable to the TEST OUT
connector and the monitor.
3. Select VIDEO OUT MENU from the VIDEO OUT
page in the OPERATION menu.
The menu appears on the connected monitor.
Menu hierarchy:
[DRIVE MAINTENANCE]
→ [ADJUST]
→ [OTHER ADJUST]
→ [ACCELERATION OFFSET]
1. A confirmation screen appears.
2. Select “YES” by turning the MENU knob, and press
the MENU knob.
ACCELERATION OFFSET
ADJUST START?
*YES
NO
DRIVE MAINTENANCE
*CHECK
ADJUST
ERROR LOGGER
OTHERS
TEST OUT
Component cable
Monitor
Outside panel
To Next Page
