Sony CBK-HD01 - Replacing the Flat Cables, Flexible Card; Wires;Boards

1-45
PDW-700/V1 (E)
1-9. Replacing the Flat Cables, Flexible
Card Wires/Boards
n
The flat cables, flexible card wires and boards are used to
connect between the following boards. Life of flexible card
wire will be significantly shortened if it is folded. Be very
careful not to fold the flat cables, flexible card wires and
boards.
The six types of different shape connectors are used in this
unit.
Because the direction of the flat cables, flexible card wires
and boards are different depending on the shape of the
connector, be careful when connecting the flat cables,
flexible card wires and boards.
Disconnecting
1. Turn off the power.

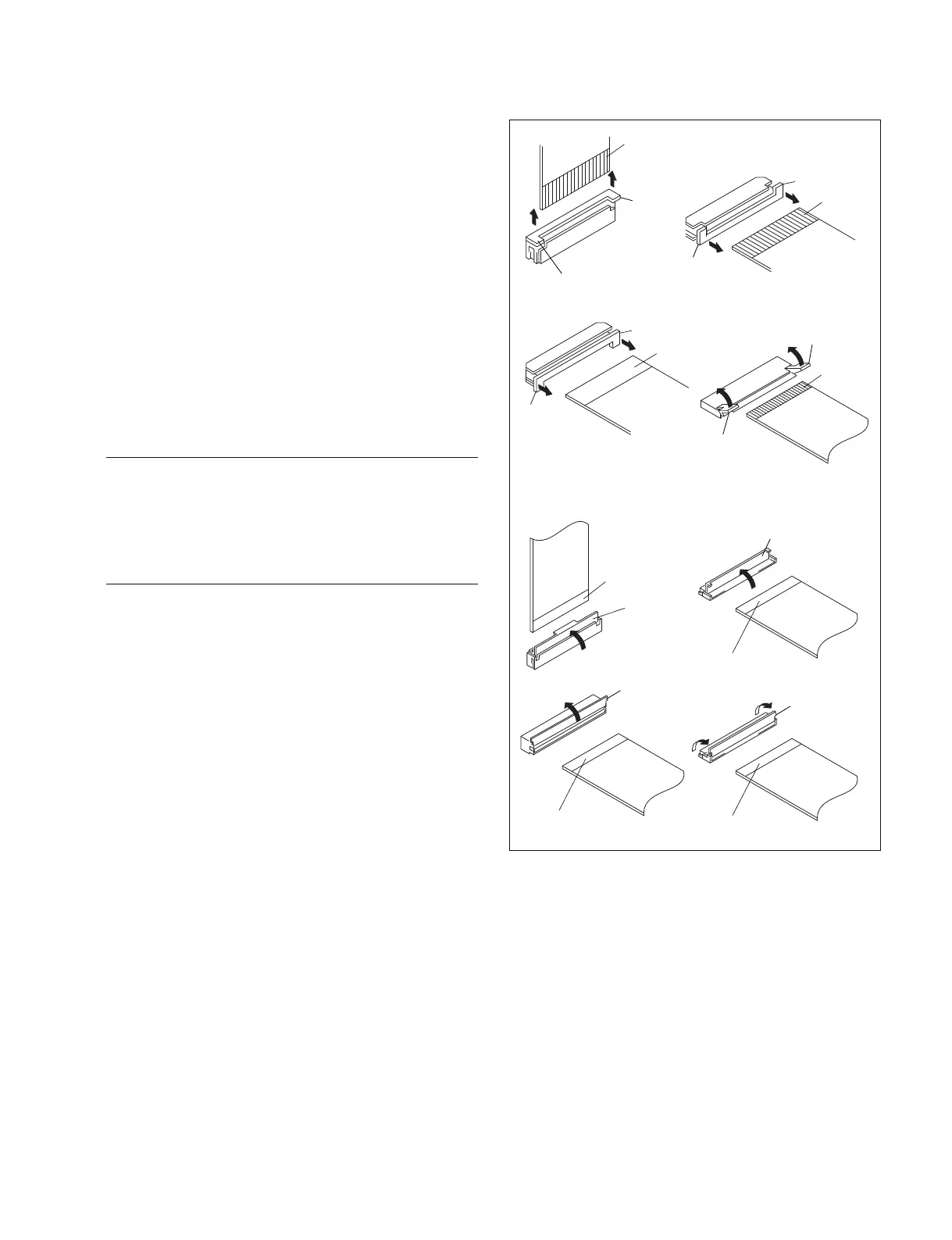

2. Slide or lift up the portion A in the direction of the
arrow to unlock and pull out the flexible card wire.
Connecting
m
. Do not insert the flexible card wire sideways.
. Confirm that there is no stain or dust on the contact
surface of the flexible card wire.
1. Slide or lift up the portion A in the direction of the
arrow and securely insert the flexible card wire into
the deep end of the connector.
2. Return the portion A to its original position and lock
the connector.
n
When connecting the flexible card wire, check the connec-
tor shape, and great care should be taken for the direction
of the contact surface or isolation surface (blue).
A
A
A
A
A
A
A
A
A
A
A
A
Contact surface
Contact
surface
Contact
surface
Isolation surface
Isolation surface
Isolation surface
Isolation surface
Isolation surface
