Sony CBK-HD01 - Board and SY-355 Board; SW-1391 Board

PDW-700/V1 (E)
7-29

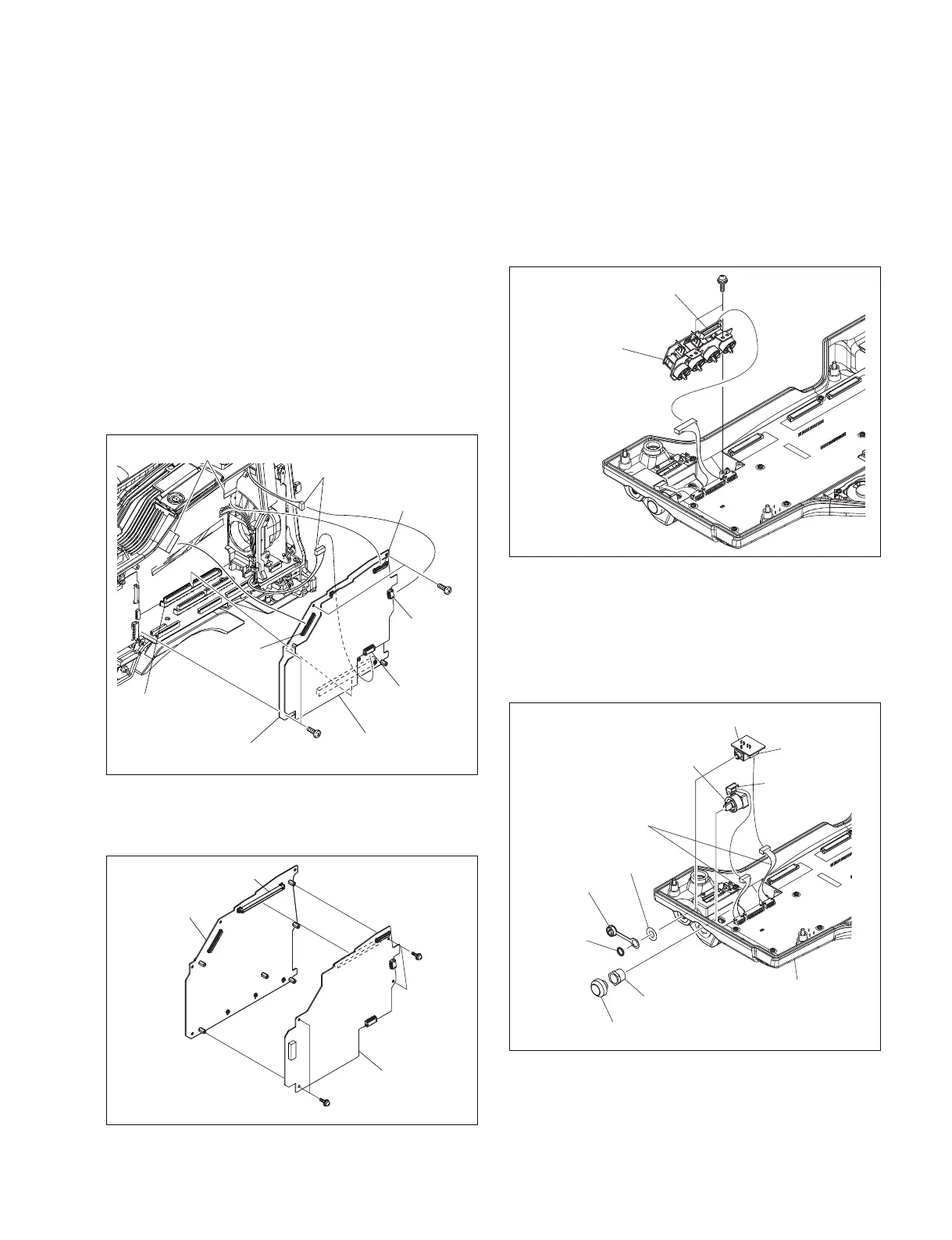

7-7-3. DVP-45 Board and SY-355 Board
1. Remove the inside panel. (Refer to Section 1-7-3.)
2. Remove the CN-2947 board. (Refer to Section 7-7-1.)
3. Remove the DCP-44 board. (Refer to Section 7-7-2.)
4. Disconnect the harnesses from the two connectors
(CN600, CN1500) on the SY-355 board.
5. Disconnect the flexible card wire form the connector
(CN1300) on the SY-355 board.
6. Disconnect the flexible card wire form the connector
(CN1700) on the DVP-45 board.
7. Remove the four screws (B2.6 x 5) .
8. Disconnect the DVP-45 board (The SY-355 board is
included.) from the connector (CN101) on the MB-
1111 board.
7-7-4. ENC-118 Board, HP-148 Board and
SW-1391 Board
1. Remove the inside panel. (Refer to Section 1-7-3.)
2. Remove the two screws (PSW2 x 5) .
3. Disconnect the harness from the connector (CN1) , and
remove the SW-1391 board.
DVP-45 board
Flexible card wire
CN101
(MB-1111 board)
SY-355 board
B2.6 x 5
CN1500
CN1300
CN1700
CN600
B2.6 x 5
Harness
DVP-45 board
SY-355 board
PSW2 x 5
CN2300
PSW
2 x 5
SW-1391 board
CN1
PSW2 x 5
Washer
Inside panel
Jack cover
Harness
Nut
Sleeve
RE knob
HP-148 board
ENC-118 board
CN113
CN101
10. Reinstall the removed parts by reversing steps 1 to 9 of
removal.
9. Remove the four screws (PSW2 x 5) and disconnect
the SY-355 board from the connector (CN2300) on the
DVP-45 board.
4. Remove the RE knob and sleeve.
5. Disconnect the harness form the connector (CN113) ,
and remove the ENC-118 board.
6. Open the jack cover and remove the fixing nut.
7. Disconnect the harness from the connector (CN101) ,
and remove the HP-148 board.
8. Reinstall the removed parts by reversing steps 1 to 7 of
removal.
