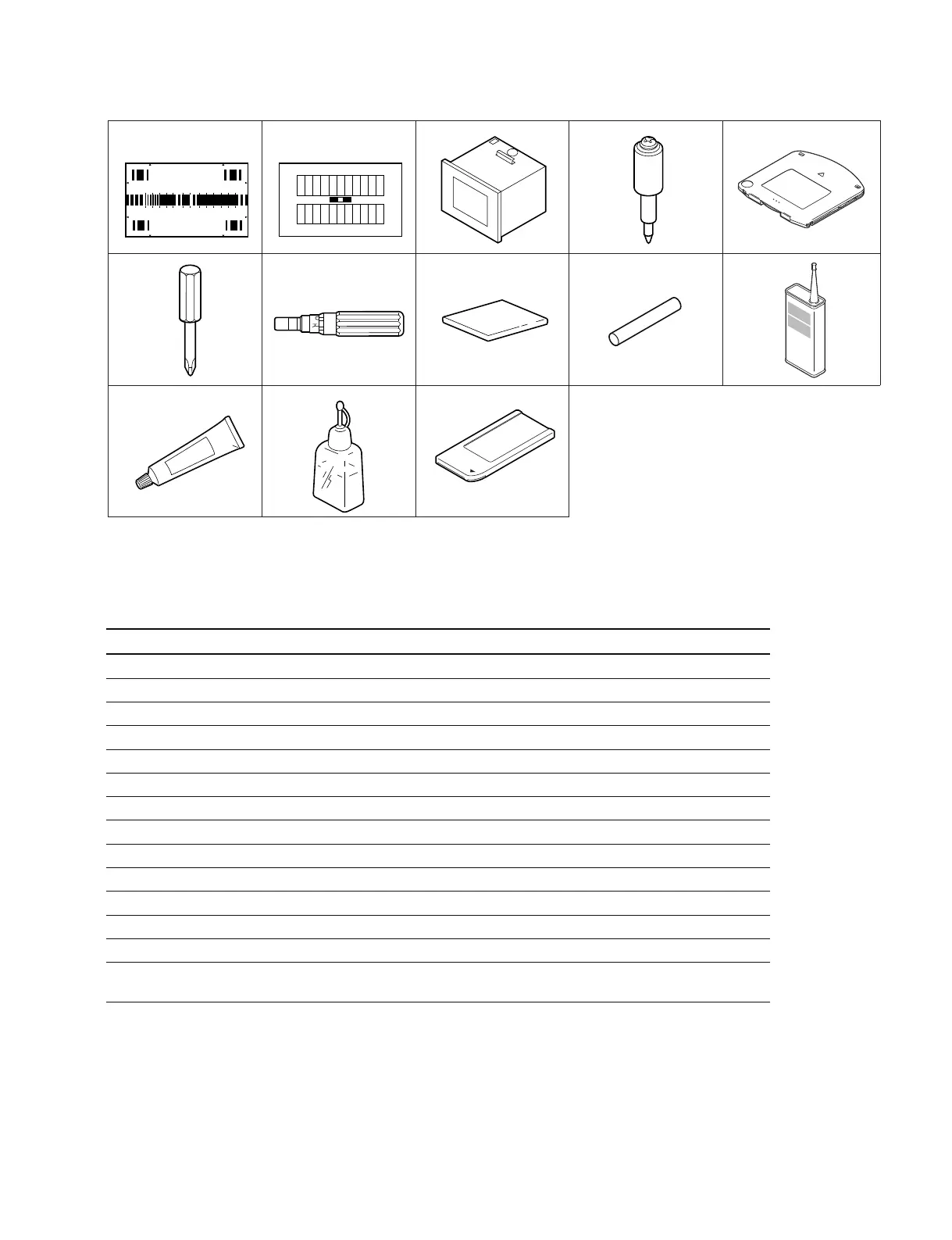

1-10-2. Measuring Equipment
Use the calibrated equipment or equivalent as listed below for the adjustments.
Equipment Model name
AC adaptor Sony AC-DN10
Viewfinder Sony HDVF-20A
Disc Sony professional disc PFD23A-RS
Oscilloscope Tektronix TDS3054 or equivalent (150 MHz or more)
HD waveform monitor LEADER ELECTRONICS CORP.LV5152DA or equivalent
SD waveform monitor Tektronix 1755A or equivalent
Frequency counter Advantest TR5821AK or equivalent
Digital voltmeter Advantest TR6845 or equivalent
Color monitor Sony HDM-20E1U/14E1U/14E5U or equivalent
Signal generator Tektronix SG-5010/TG-2000 or equivalent
Luminance meter Konica Minolta LS-110 or equivalent
Luxmeter Konica Minolta T-10 or equivalent
Regulated power supply (Output current: More than 10 A)
Audio level-meter Tektronix AM700 or Audio Precision System Two Cascade Plus 2722 or
equivalent
