1-37
PDW-700/V1 (E)

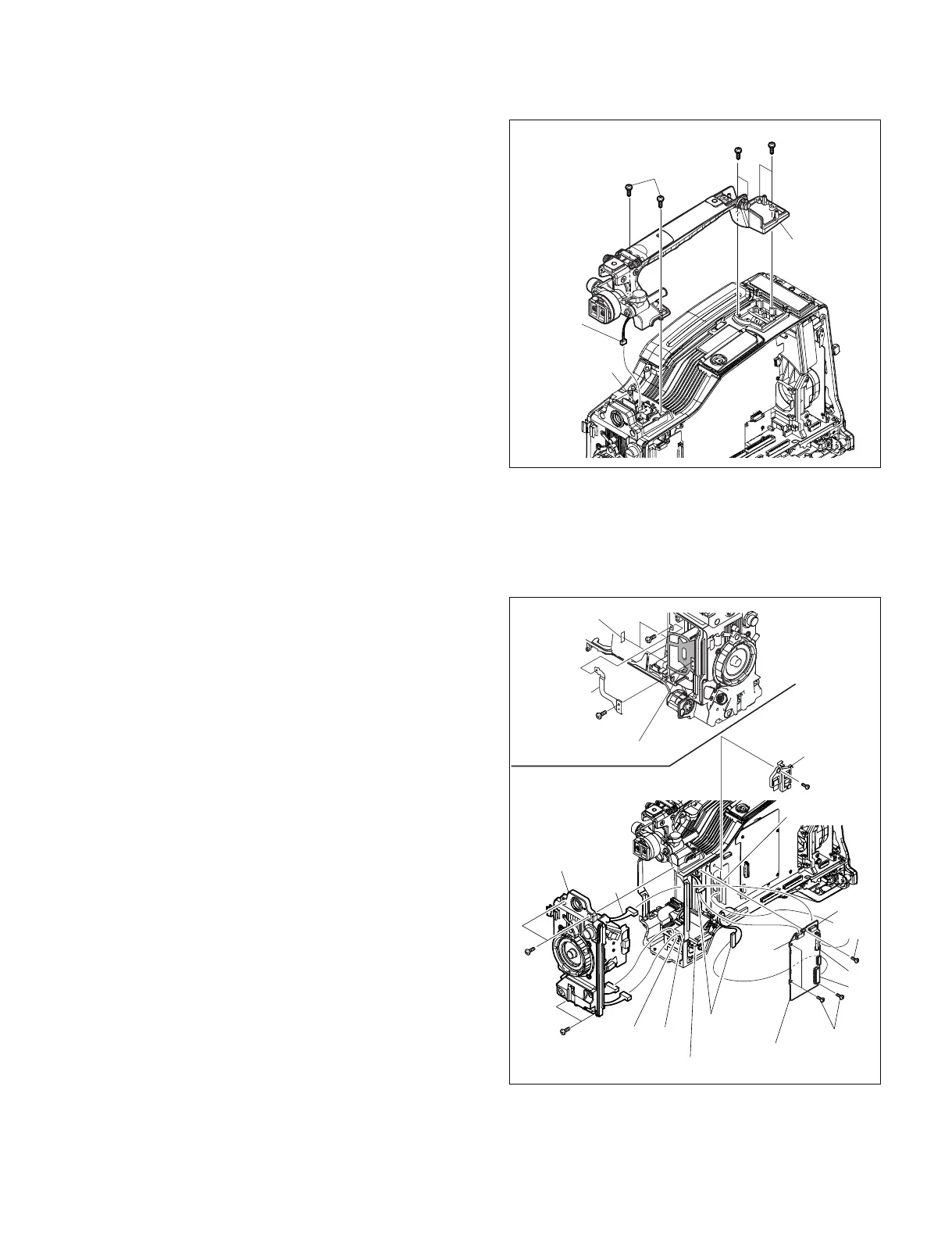

14. Remove the six screws (B3 x 8) .
15. Disconnect the harness from the connector (CN2) on
the CN-3005 board while slightly lifting up the handle
assembly, and remove the handle assembly.
B3 x 8
B3 x 8
B3 x 8
CN2
(CN-3005 board)
Handle assembly
Harness
1-7-5. Front Panel
1 Remove the outside panel. (Refer to Section 1-7-1.)
2. Remove the inside panel. (Refer to Section 1-7-3.)
3. Remove the screw, and remove the connector retainer.
4. Disconnect the CN-2947 board from the connector
(CN3) on the TG-260 board.
n
The CN-2947 board is fragile and can be easily
broken. Handle it with care.
5. Disconnect the harnesses from the three connectors
(CN2, CN4, CN6) of the TG-260 board.
6. Remove the four screws (B2.6 x 5) , and remove the
TG-260 board.
7. Remove the two screws, and remove the stay (OUT).
8. Remove the tape, and peel the GND sheet (OUT) from
the main frame.
n
The GND sheet can be broken during removal. Handle
it with care.
9. Remove the four screws (B3 x 8) .
10. Take off the front panel, disconnect the harness from
the two connectors (CN2, CN3) on the MS-86 board,
and remove the front panel.
CN4
CN6
CN2
CN3
CN2
CN3
B2.6 x 5
B3 x 8
B3 x 8
B2.6 x 5
Harnesses
Harness
CN-2947 board
Front panel
B2.6 x 5
Connector retainer
Tapes
GND sheet (OUT)
Stay (OUT)
B2.6 x 5
B2.6 x 5
TG-260 board
MS-86 board
To Next Page
