6-2. Cleaning
To make the most of the functions, fully realize the
performance of this unit, and to lengthen the life of the unit
and cartridge, clean the components often.
6-2-1. General Information for the Use of
Cleaning Cloth
1. Cautions
. Be sure turn the power off before cleaning.
. Each block in the drive consists of precision parts and is
adjusted precisely. Be careful not to damage the parts
and to apply excessive force during cleaning.
. Do not insert a cartridge before cleaning fluid complete-
ly evaporates after cleaning.
2. Preparation
(1) Turn the power off.
(2) Remove the loader assembly.
(Refer to Section 7-1-1.)
6-2-2. Cleaning Loader Assembly
Precautions
The loader assembly consists of precision parts.
Be careful not to damage and give excessive force to the
parts.
Cleaning Procedure
Tools
. Cleaning cloth (or cotton swab)
. Cleaning fluid (alcohol)
Procedure
1. Clean the eject levers in the loader assembly using the
cleaning cloth (or cotton swab) with the cleaning fluid
soaked.

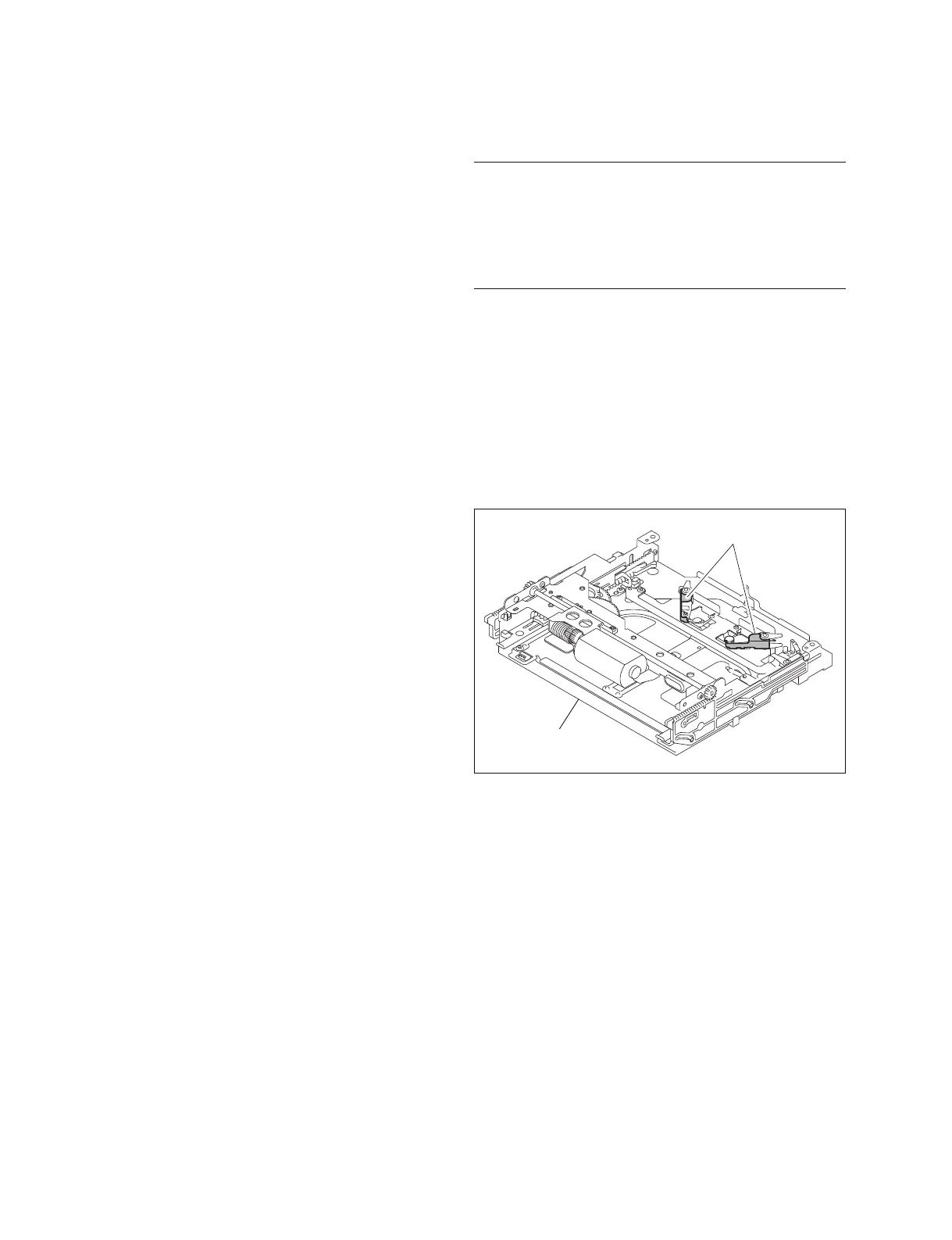

Loader assembly
Eject levers
