9-1
PDW-700/V1 (E)
9-1. Preparation
9-1-1. Fixtures and Equipment
[Fixtures]
. Pattern box PTB-500
Part No.: J-6029-140-B
. Grayscale chart
Commercially available on the market Reflective type (16:9)
. White window chart
[Equipment]
. Oscilloscope: Tektronix TDS3054 or equivalent (150 MHz or more)
. HD waveform monitor: LEADER ELECTRONICS CORP.LV5152DA or equivalent
. SD waveform monitor: Tektronix 1755A or equivalent
. Frequency counter: Advantest TR5821AK or equivalent
. Color monitor: Sony HDM-20E1U/14E1U/14E5U or equivalent
. Signal generator: Tektronix SG-5010/TG-2000 or equivalent
. AC adapter: Sony AC-DN10
. Luminance meter: Konica Minolta LS-110 or equivalent
. Luxmeter: Konica Minolta T-10 or equivalent

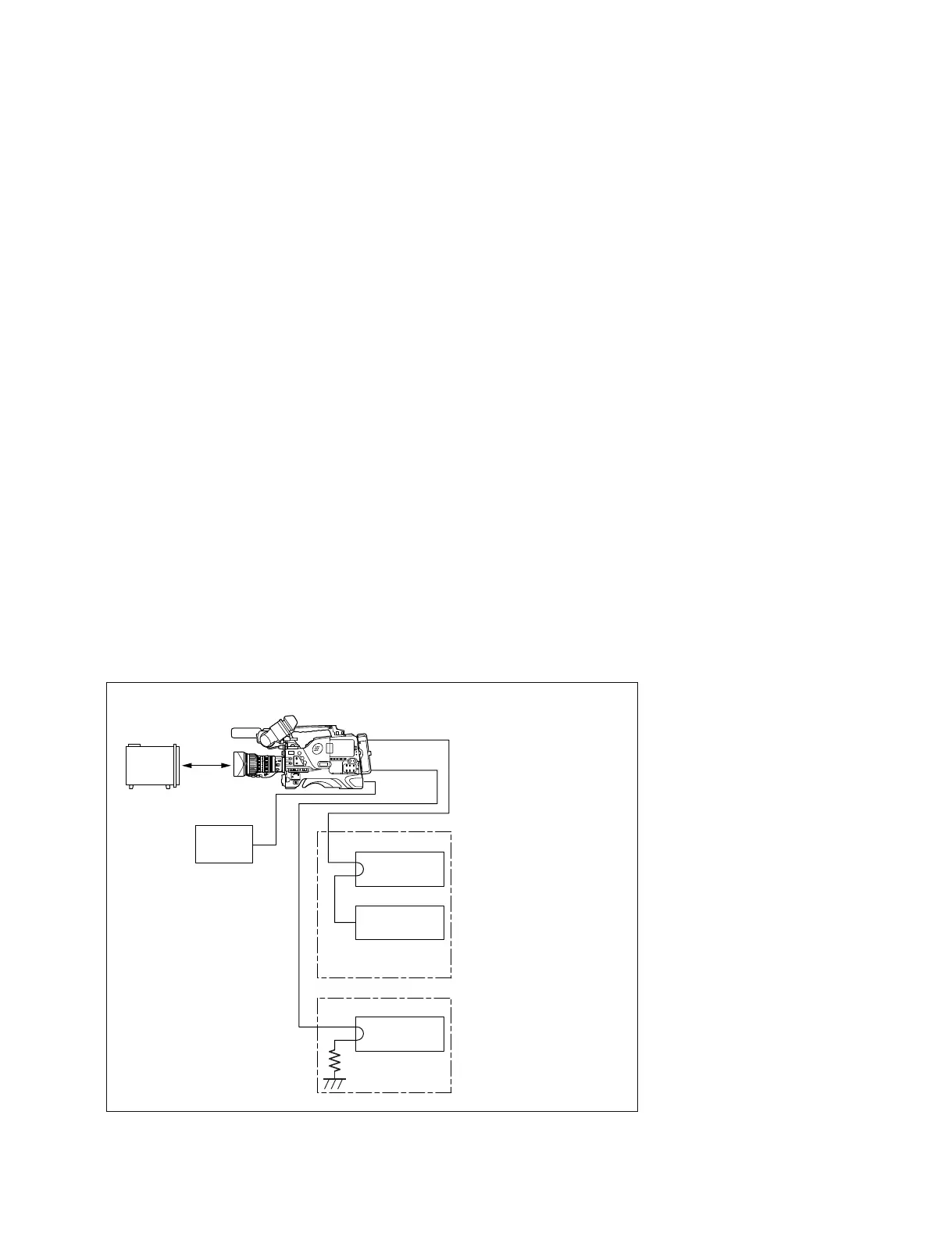

9-1-2. Connection
Section 9
Electrical Alignment
AC-DN10
DC IN
PTB-500
75Z
HD-SDI
HDSDI OUT
Composite
(HD-SDI)
(Composite)
2 to
3 m
AC adapter
SD vector monitor
HD vector monitor
Color monitor
TEST OUT
PDW-700
To Next Page
