3. Clearing the preset value of the ALL PRESET object items. (CLEAR ALL PRESET)
When executing CLEAR ALL PRESET on the ALL FILE page under the FILE menu page 3 <F03>,
the value of the ALL FILE items (corresponding items among OPERATION, PAINT, MAINTE-
NANCE and FILE) are initialized to the factory default value
*1
.

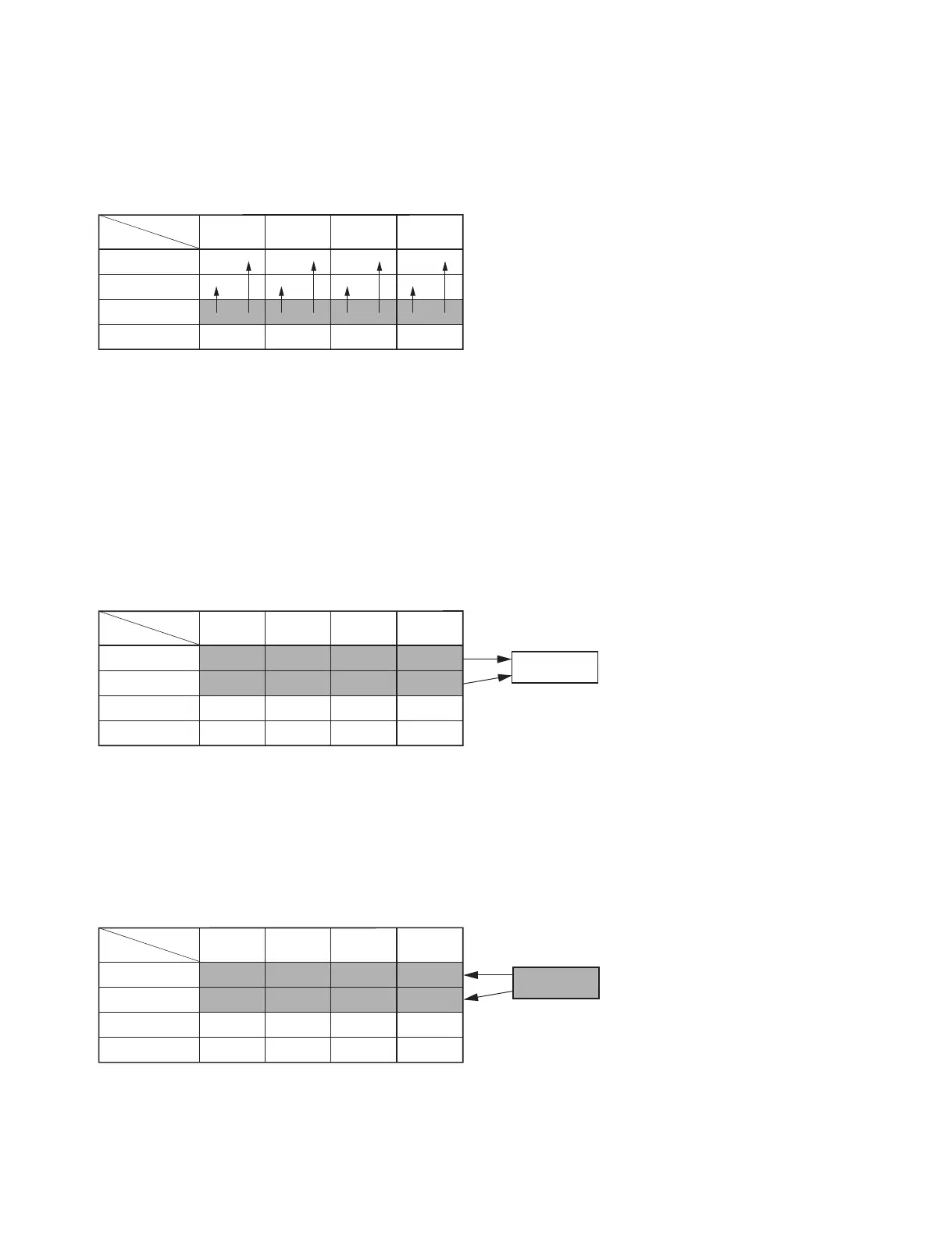

Executing CLEAR ALL PRESET:
Copy the data stored in the SERVICE layer of the ALL PRESET object items to the USER and
PRESET layers.
*1: As the users will use the values set in the service mode as the factory default value, be sure to
handle the setup values with care in the service mode.
4. Saving the setups of the ALL FILE object items in the memory stick. (ALL FILE SAVE)
When executing ALL FILE SAVE on the ALL FILE page under the FILE menu page 3 <F03>, the
data of the USER and PRESET layers of ALL FILE object items (corresponding items among
OPERATION, PAINT, MAINTENANCE and FILE) are saved to the memory stick as ALL FILE.
Executing ALL FILE SAVE:
Save the data of the USER and PRESET layers of the ALL FILE object items in the memory stick.
5. Calling the ALL FILE saved in the memory stick. (ALL FILE LOAD)
When executing ALL FILE LOAD on the ALL FILE page under the FILE menu page 3 <F03>, ALL
FILE stored in the memory stick are called to the USER layer and the PRESET layer of the ALL
FILE object items (corresponding items among OPERATION, PAINT, MAINTENANCE and FILE).
Executing ALL FILE LOAD:
Call ALL FILE stored in the memory stick to the USER and PRESET layers of the ALL FILE object
items.
USER layer
PRESET layer
SERVICE layer
FACTORY layer
PAINT FILE
OPERA-
TION
MAINTE-
NANCE
Data
Structure
Menu
USER layer
PRESET layer
SERVICE layer
FACTORY layer
PAINT FILE
OPERA-
TION
MAINTE-
NANCE
Data
Structure
Menu
Memory stick
USER layer
PRESET layer
SERVICE layer
FACTORY layer
PAINT FILE
OPERA-
TION
MAINTE-
NANCE
Data
Structure
Menu
Memory stick
