Flexible board
(DR-SE858)
Motor
Flexible board
(DR-SE858)
Flexible board
(DR-OP)
Flexible board
(DR-SE857)
CN600/
SE-858 board
Connector/
Optical block
CN600/
SE-857 board

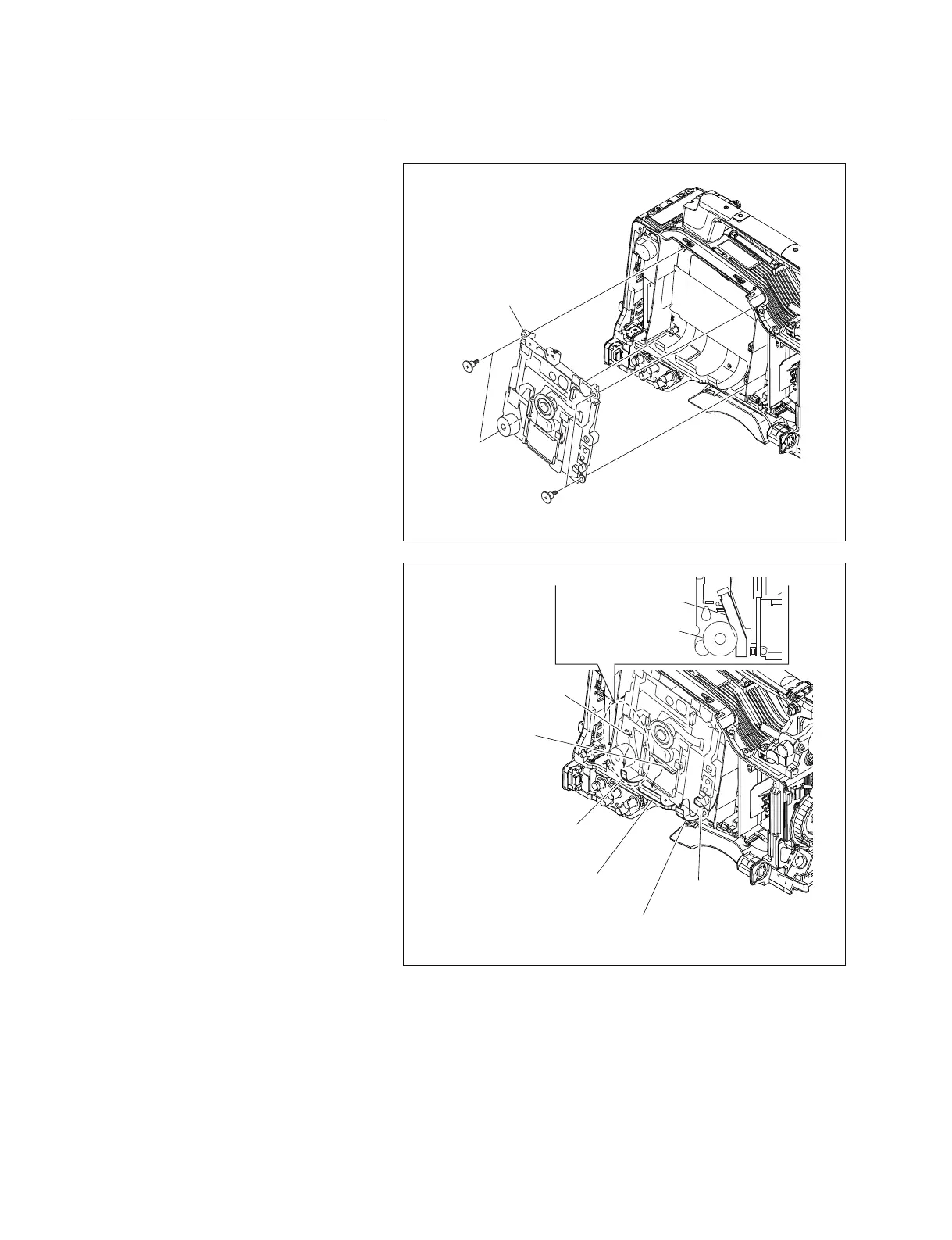

Reinstallation
1. Reinstall the drive sub assembly with the four
step screws.
Tightening torque:
53 x 10
_2
± 0.01 N.m (5.3 x 0.1 kgf.cm)
2. Connect the flexible board (DR-OP) to the
connector on the optical block assembly.
3. Connect the flexible board (DR-SE858) to
the connector (CN600) on the SE-858 board.
n
Place the flexible board (DR-SE858) in the
way that it is routed in between the motor and
the chassis.
4. Connect the flexible board (DR-SE857) to
the connector (CN600) on the SE-857 board.
5. Reinstall the loader assembly.
(Refer to Section 7-1-1.)
6. Reinstall the SW guard assembly.
(Refer to Section 1-7-6.)
7. Reinstall the corner block.
(Refer to Section 7-1-1.)
8. Reinstall the laser caution sheet.
(Refer to Section 1-6-2 step 2.)
9. Reinstall the outside panel.
(Refer to Section 1-7-2.)
Step
screws
Step
screws
Drive sub assembly
