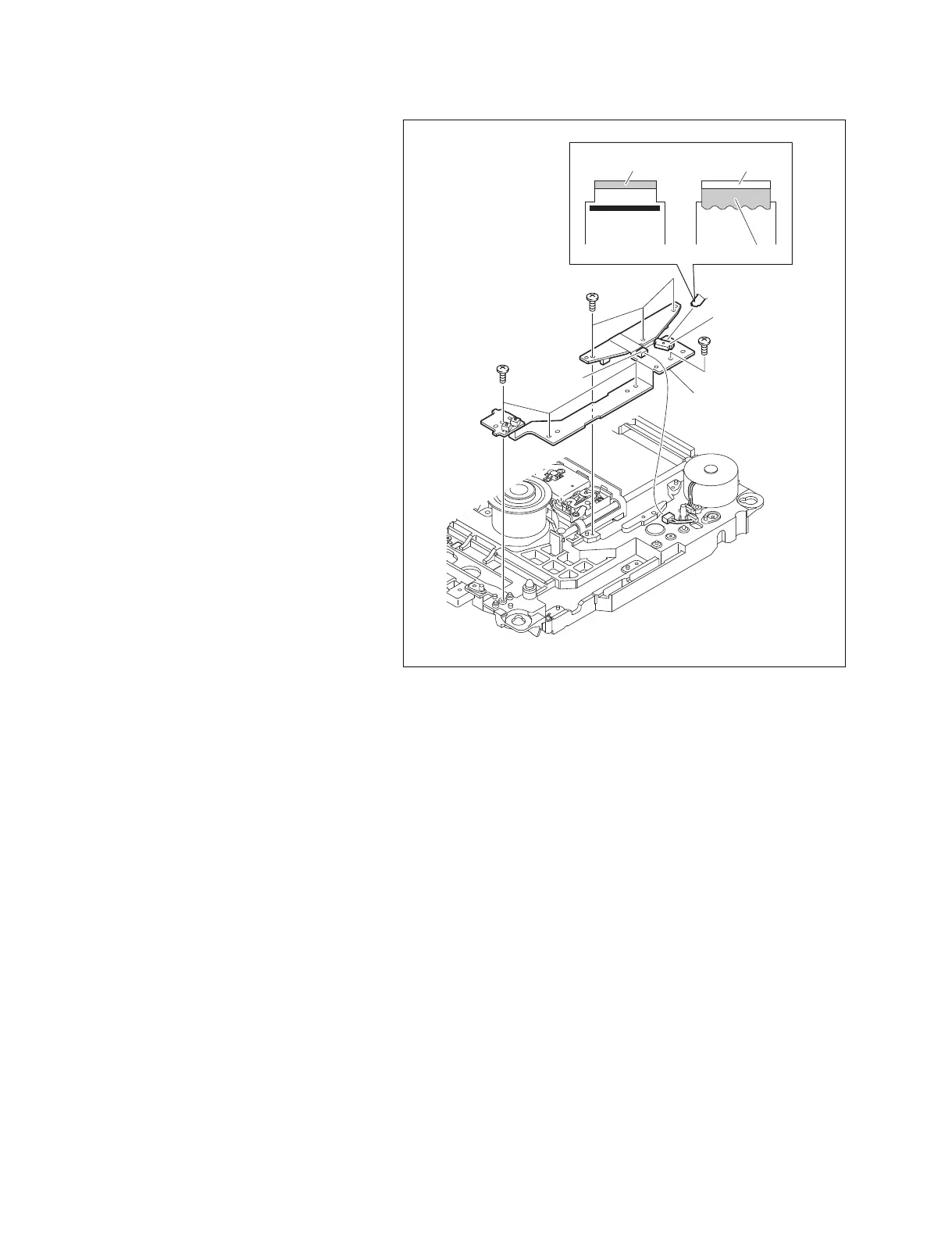

2. Install the SE-858 board with seven screws in
the order of the numbers shown in the figure.
Tightening torque:
10 x 10
_2
± 0.01 N.m (1.0 ± 0.1 kgf.cm)
3. Connect the flexible card wire to the connec-
tor CN600.
n
The flexible card wire connected to CN600
has a conductive area on both sides, and the
tip on the reverse side is insulated. Insert the
flexible card wire into the connector as far as
it will go, and then lock it.
4. Connect the harness to the connector CN2.
5. Reinstall the removed parts by reversing
steps 1 to 5 of removal.
SE-858 board
CN600
CN2
Screws (M1.7)
Screw
(M1.7)
Screws
(M1.7)
Obverse side Reverse side
Conduction
Conduction
Insulation
1
2
4
5
6
3
7
