Sony CBK-HD01 - Page 31

1-21
PDW-700/V1 (E)
14
32
1
2
3
4
5

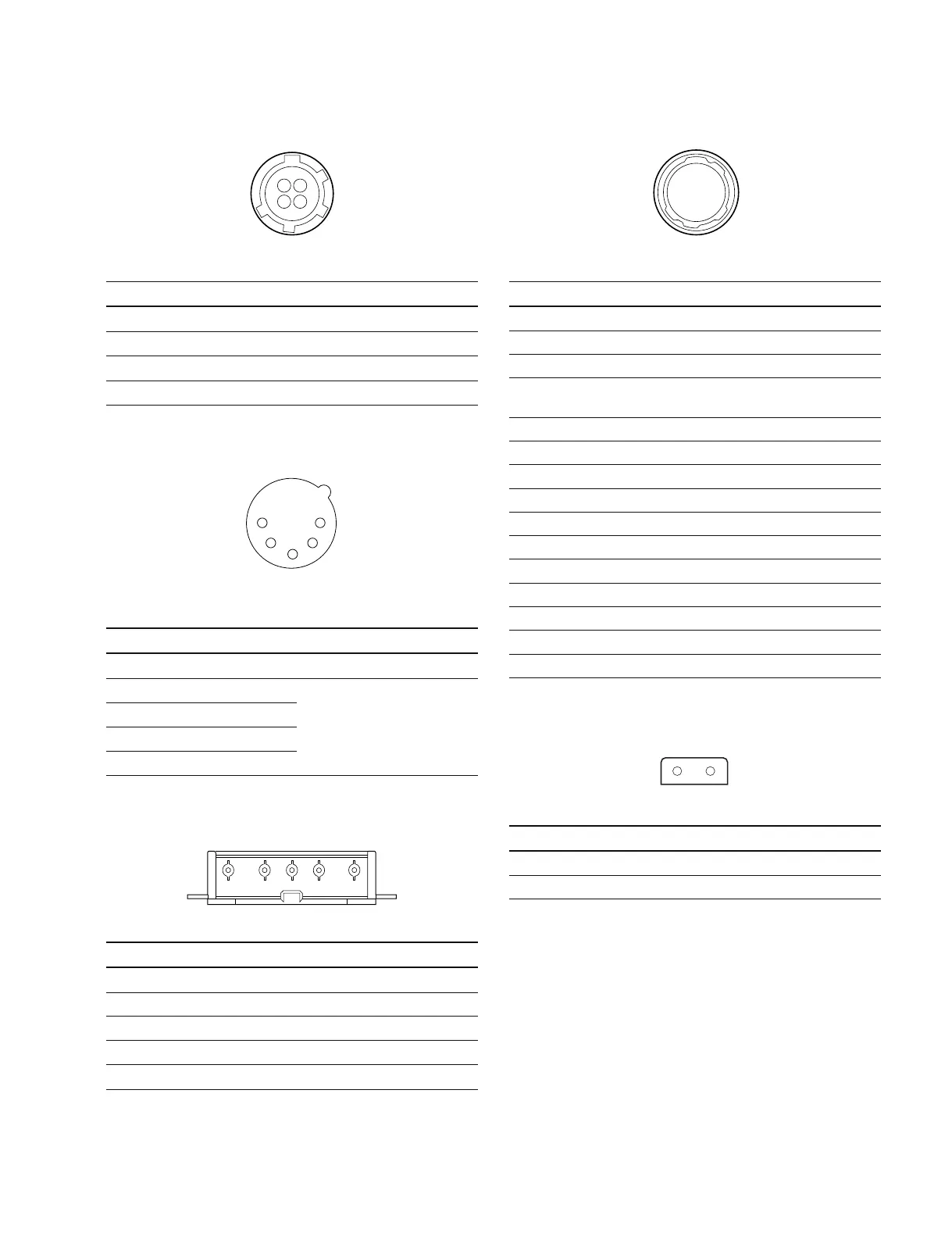

LENS : 12-pin (Female)
__
__
_ EXT VIEW
__
__
_
No. Signal I/O Specifications
1 RET (SW) IN ON : 0 V, OFF : OPEN
2 VTR TRIG IN ON : 0 V, OFF : OPEN
3 LENS GND _
4 AUTO +5 V OUT AUTO : +5 V,
MANU : 0 V or OPEN
5 IRIS CONT OUT +3.4 V (F16) to +6.2 V (F2.8)
6 UNREG +12 V OUT +11 V to 17 V
7 IRIS PSTN IN +3.4 V (F16) to +6.2 V (F2.8)
8 REMOTE/LOCAL OUT AUTO IRIS : 0 V
MANUAL IRIS : +5 V
9 EXTENDER IN EX 2 ON : 0 V
EX 0.8 ON : +1.8 V
OFF : +4.8 V
10 ZOOM PSTN IN WIDE : 2 V, TELE : 7 V
11 LENS RX
12 LENS TX
LIGHT : 2-pin (Female)
__
__
_ EXT VIEW
__
__
_
No. Signal Specifications
1 LIGHT +12 V OUT 50 W MAX
2 GND
1
2
3
4
5
6
7
8
9
0
!-!=
12
12345
DC OUT 12 V : DIN, 4-pin (Female)
__
__
_ EXT VIEW
__
__
_
No. Signal I/O Specifications
1 UNREG GND _ GND for POWER
2 _ No connection
3 _ No connection
4 UNREG +12 V OUT +11 to 17 V dc
AUDIO OUT : XLR, 5-pin (Male)
__
__
_ EXT VIEW
__
__
_
(0 dBu = 0.775 V rms)
No. Signal I/O Specifications
1 ANALOG GND _
2 AUDIO CH-1 (X) OUT 0 dBm (600 Z terminated)
3 AUDIO CH-1 (Y) OUT
4 AUDIO CH-2 (X) OUT
5 AUDIO CH-2 (Y) OUT
BATT IN : 5-pin (Male)
__
__
_ EXT VIEW
__
__
_
No. Signal I/O Specifications
1 BATT (_)IN
2 BATT ID IN
3 BATT REM IN
4 LIGHT CONT OUT
5 BATT (+)IN+11 to 17 V dc
