1-23
PDW-700/V1 (E)
MAINTENANCE
__
__

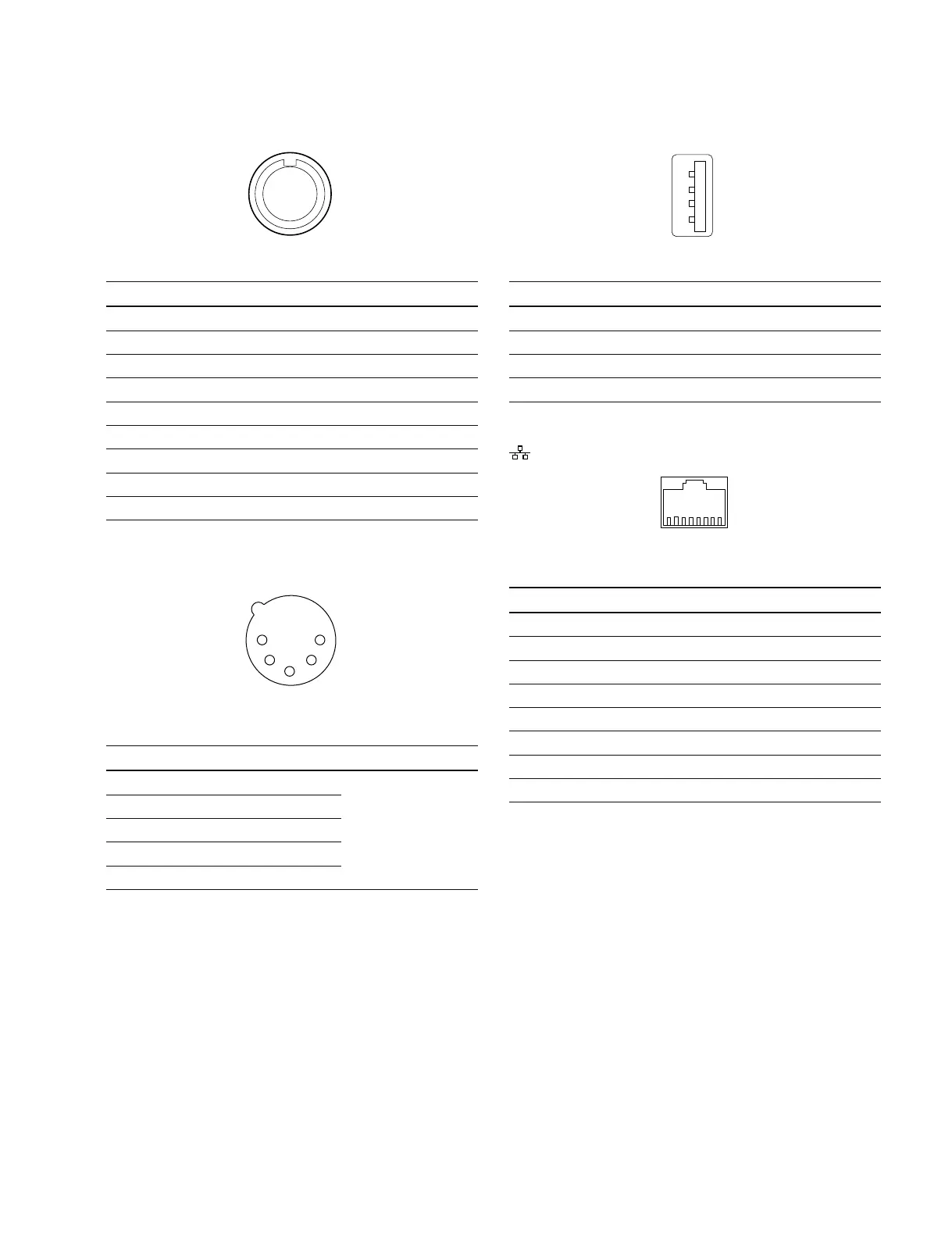

_ EXT VIEW
__
__
_
No. Signal
1 USB_VBUS
2 USB_D_
3 USB_D+
4 GND
(NETWORK)
__
__
_ EXT VIEW
__
__
_
No. Signal I/O Specifications
1 TX (+) I/O Transmitted data (+)
2 TX (_) I/O Transmitted data (_)
3 RX (+) I/O Received data (+)
4 __No connection
5 __No connection
6 RX (_) I/O Received data (_)
7 __No connection
8 __No connection
4
1
8
1
REMOTE : 8-pin (Female)
__
__
_ EXT VIEW
__
__
_
No. Signal I/O Specifications
1 TX RCP DATA (X) OUT SERIAL DATA OUT
2 TX RCP DATA (Y) OUT SERIAL DATA OUT
3 RX RCP DATA (X) IN SERIAL DATA IN
4 RX RCP DATA (Y) IN SERIAL DATA IN
5 VIDEO (G) _ GND for VIDEO
6 UNREG +12 V OUT +11 V to 17 V
7 UNREG (GND) _ GND for UNREG
8 VIDEO (X) OUT 1.0 V p-p, Zo = 75 Z
CHASSIS GND _ CHASSIS GND
MIC IN : XLR, 5-pin (Female)
__
__
_ EXT VIEW
__
__
_
(0 dBu = 0.775 V rms)
No. Signal Specification
1 MIC IN (G) _50 dBu High
2 MIC1 IN (X)
impedance balance
3 MIC1 IN (Y)
4 MIC2 IN (X)
5 MIC2 IN (Y)
1
8
27
36
45
5
4
3
2
1
