1-25
PDW-700/V1 (E)
S600

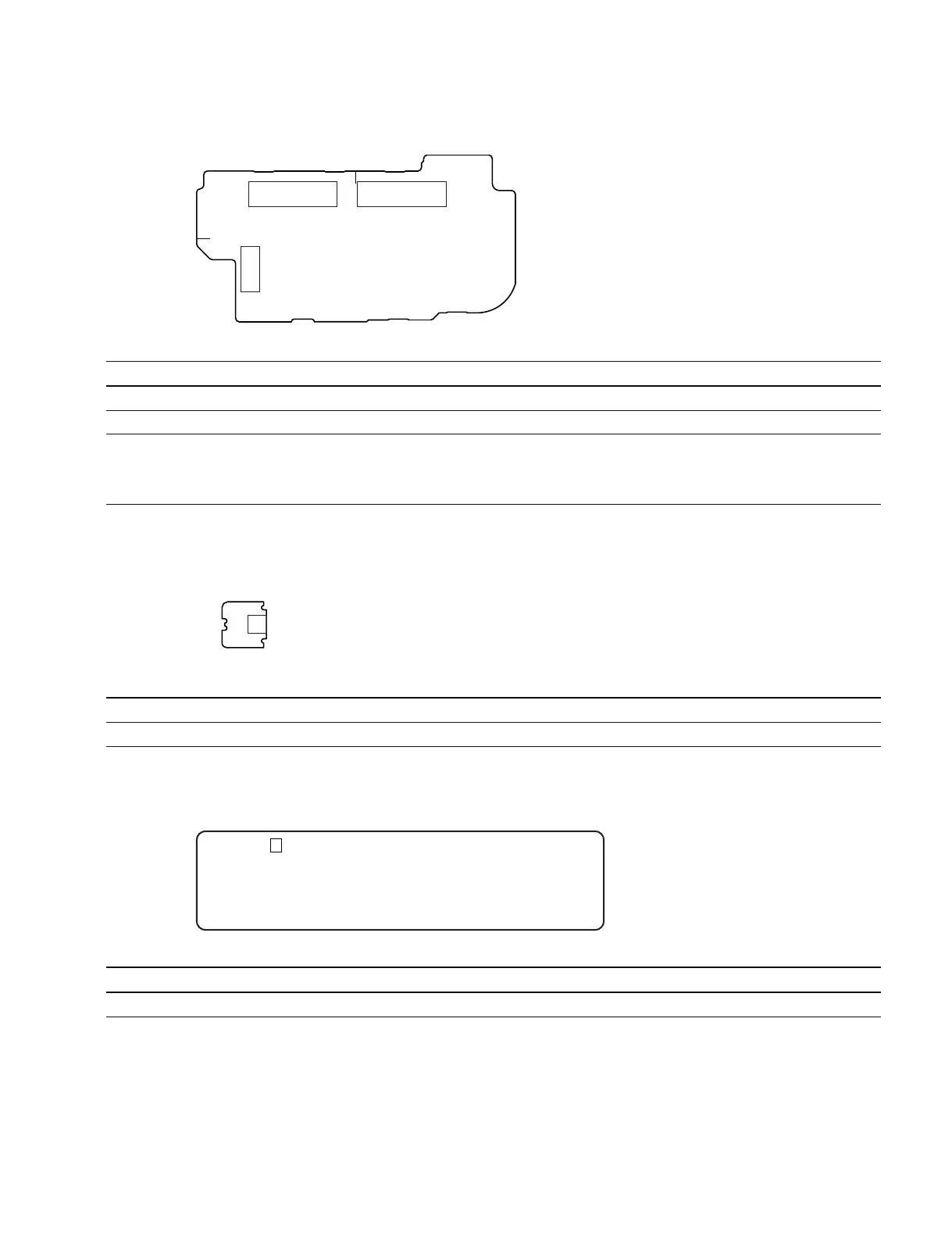

AXM-38 board
Ref.No. Name Function Factory setting
S101 AUDIO IN (CH1) LINE/AES/EBU/MIC/(CH1) select switch
*
_
S201 AUDIO IN (CH2) LINE/AES/EBU/MIC/(CH2) select switch
*
_
S203 INPUT REFERENCE Sets the input reference level +4 dB
+4 dB : Sets the input reference level to +4 dB
0 dB : Sets the input reference level to 0 dB
_3 dB : Sets the input reference level to _3 dB
* : Refer to the “Operation Manual”.
DET-45 board
Ref.No. Name Function Factory setting
S1 SW Color LCD turn switch _
DR-606 board
Ref.No. Name Function Factory setting
S600 System reset Factory-use _
S203
S101 S201
B
A
1
2
S1
