Basic Setup Welcome Kit Contents
Page 13
© Copyright 2021 Stratasys. All rights reserved.

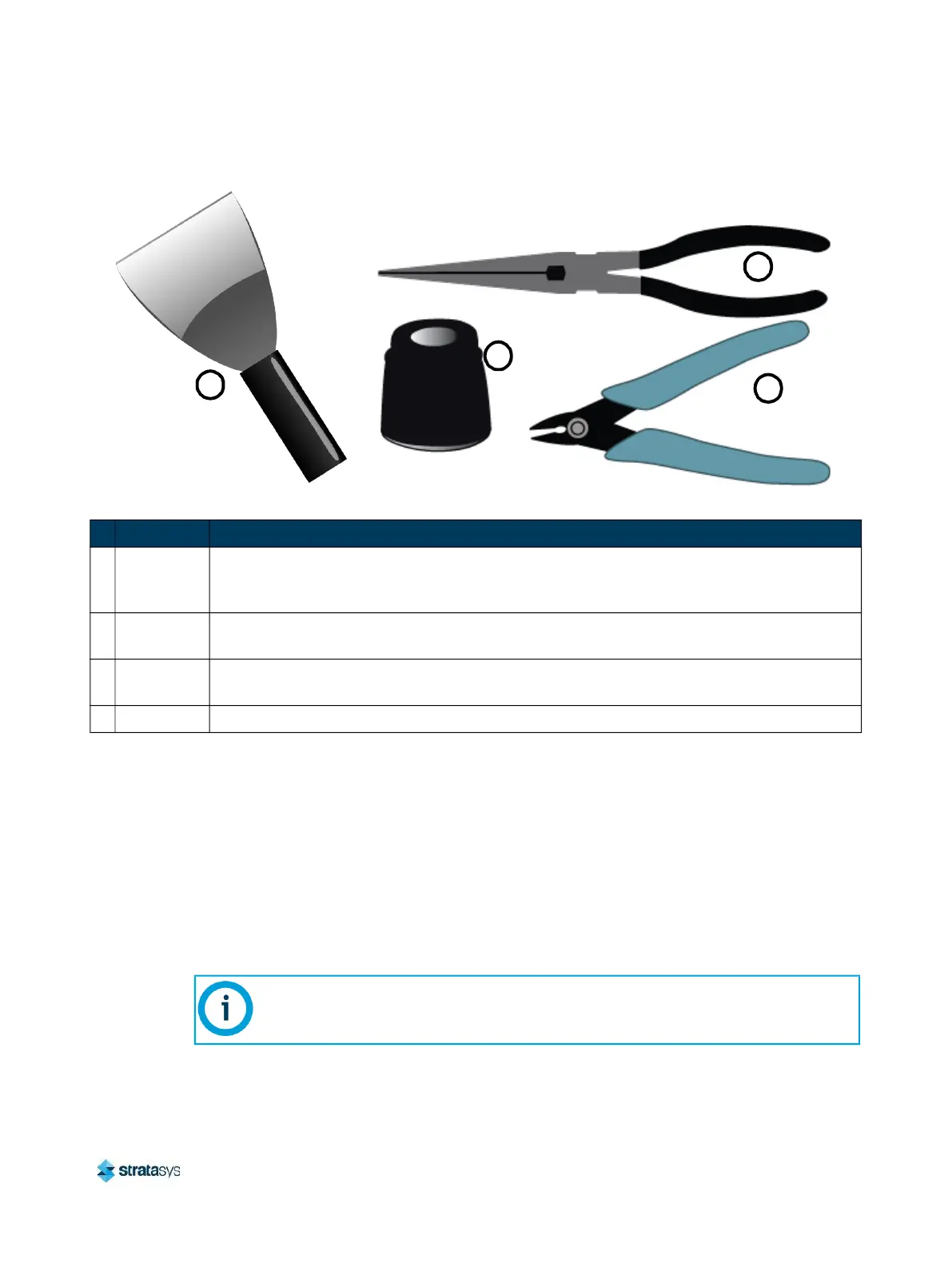

Figure 2: Welcome Kit Contents - Tools
Basic Setup
Follow the Site Preparation Guide to ensure that your facility is effectively and safely prepared
for printer installation. Do not proceed with the following sections until the “Unpacking the
Printer” section of the Site Preparation Guide has been completed. When installation is
complete, open all four top covers to access and remove tie wraps securing the gantry against
X and Y travel. See “Opening Top Access Doors Left/Right” (page 183) and “Opening Top
Access Doors Front/Rear” (page 184).
1
2
3
4
Table 2: Key for Figure 2
# Item Description
1
Needle
Nose Pliers
(extra slim)
Occasionally, you may need to use pliers to aid in the clearing of debris which have
accumulated on the head and/or tips (see “Clean/Inspect Tip Wipe Assemblies” (page 178)).
2 5” Cutter
These are used to cut a material coil box’s filament when unloading and removing materials
from the printer. See “Unloading Material” (page 118).
3
Loupe
Magnifier
This tool is included to aid you with performing a Manual Tip Calibration which requires you
to view small toolpath relationships. See “Manual Tip Calibration” (page 154).
4 Scraper This tool is used to scrape parts or material off the substrate.
If any of the tie wraps are found broken, please contact Stratasys customer support.
