Working with the Tools Page Settings
Page 81
© Copyright 2021 Stratasys. All rights reserved.
To configure this setting, press anywhere within the row; the Keep Previous Job page will be
displayed. Use the radio buttons within the page to turn the setting On and Off as needed; On
is selected by default.

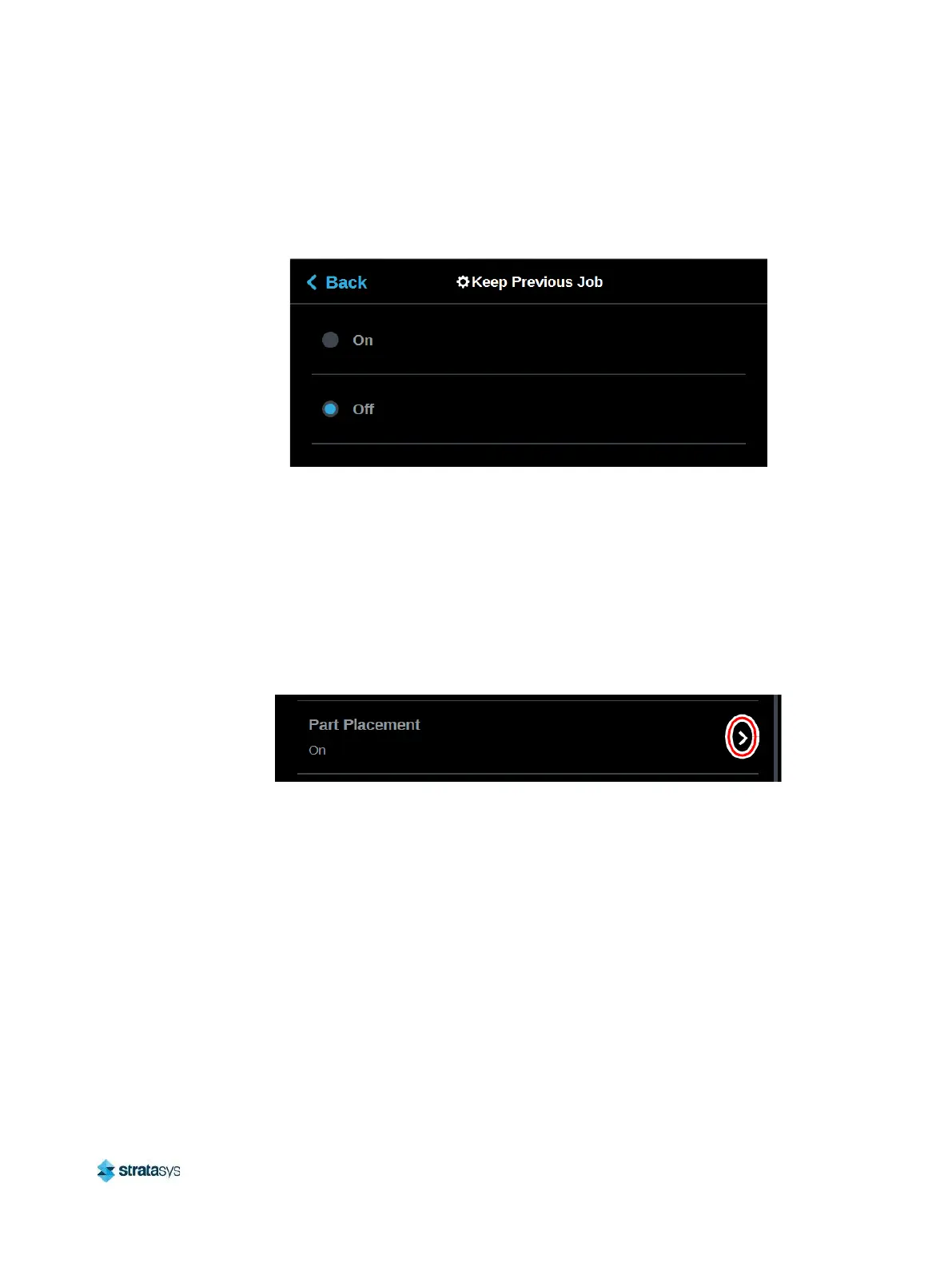

Figure 40: Configure Keep Previous Job
Part Placement
The Part Placement setting gives you the ability to select a job’s placement on a build sheet.
By default, single part jobs are built in the center of a build sheet while packs are built
according to their selected placement within GrabCAD Print. Therefore, when this setting is set
to Off, single part jobs will automatically be built in the center of the build sheet and packs will
be built according their selected placement within GrabCAD Print. To configure this setting,
press anywhere within the row; the Part Placement page will be displayed. Use the radio
buttons within the page to turn the setting On and Off as needed.
Figure 41: Part Placement
When this setting is set to On, you will be able to select a job’s location on the build sheet prior
to starting the build (see “Selecting a Job to Build” (page 126)). At the start of a build a dialog
will be displayed asking you to select the part’s build location (see Figure 42). The dialog will
contain a graphic representing your printer’s platen as well as a blue bounding box graphic (the
imaginary box surrounding the part).
