Oven Components Tip Wipe Assemblies
Page 32
© Copyright 2021 Stratasys. All rights reserved.
Tip Wipe Assemblies
Two tip wipe assemblies are located on the right side of the oven, one for model and one for
support. Each assembly consists of a flicker and a brush. The tip wipe assemblies keep the
printer’s tips and tip shields free of purged material debris and material buildup.The tip wipe
assemblies are mounted behind the purge chute and extend through the purge chute via two
slots cut into the chute’s exterior.
After material is purged from a tip, the tip passes across the tip wipe assembly. The flicker cuts
the purged material from the end of the tip and knocks it into the purge chute. The brush cleans
the tip and tip shield. Purged material debris is guided down from the tip wipe assemblies to the
bottom of the oven chamber via the purge chute.

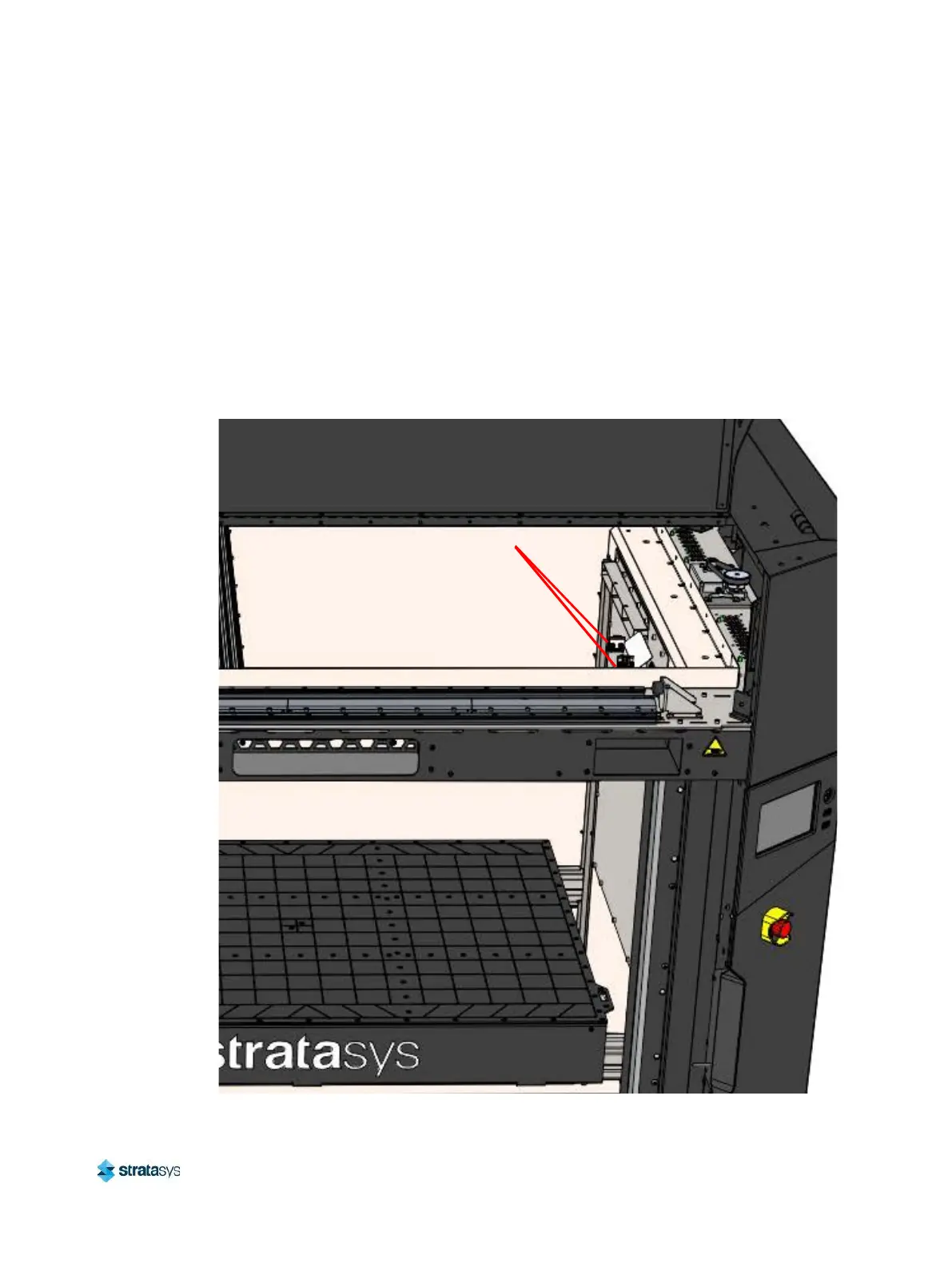

Figure 8: Tip Wipe Assemblies
Tip Wipe Assembly:
Model = left
Support = right
