Oven Components Platen
Page 31
© Copyright 2021 Stratasys. All rights reserved.
Platen
The aluminum platen provides the level surface on which parts are built. A build sheet is
securely affixed to the platen using a vacuum system. After placing a build sheet on the platen
with the smooth side down, turning On the vacuum control system will cause the build sheet to
attach to the platen. Turning the vacuum control system Off allows the build sheet to be easily
removed.
The tip offset calibration targets are located on the rear center portion of the platen. These
targets are used when determining the X and Y offset between model and support tips after
either head has been replaced (during an automatic Tip Offset Calibration).

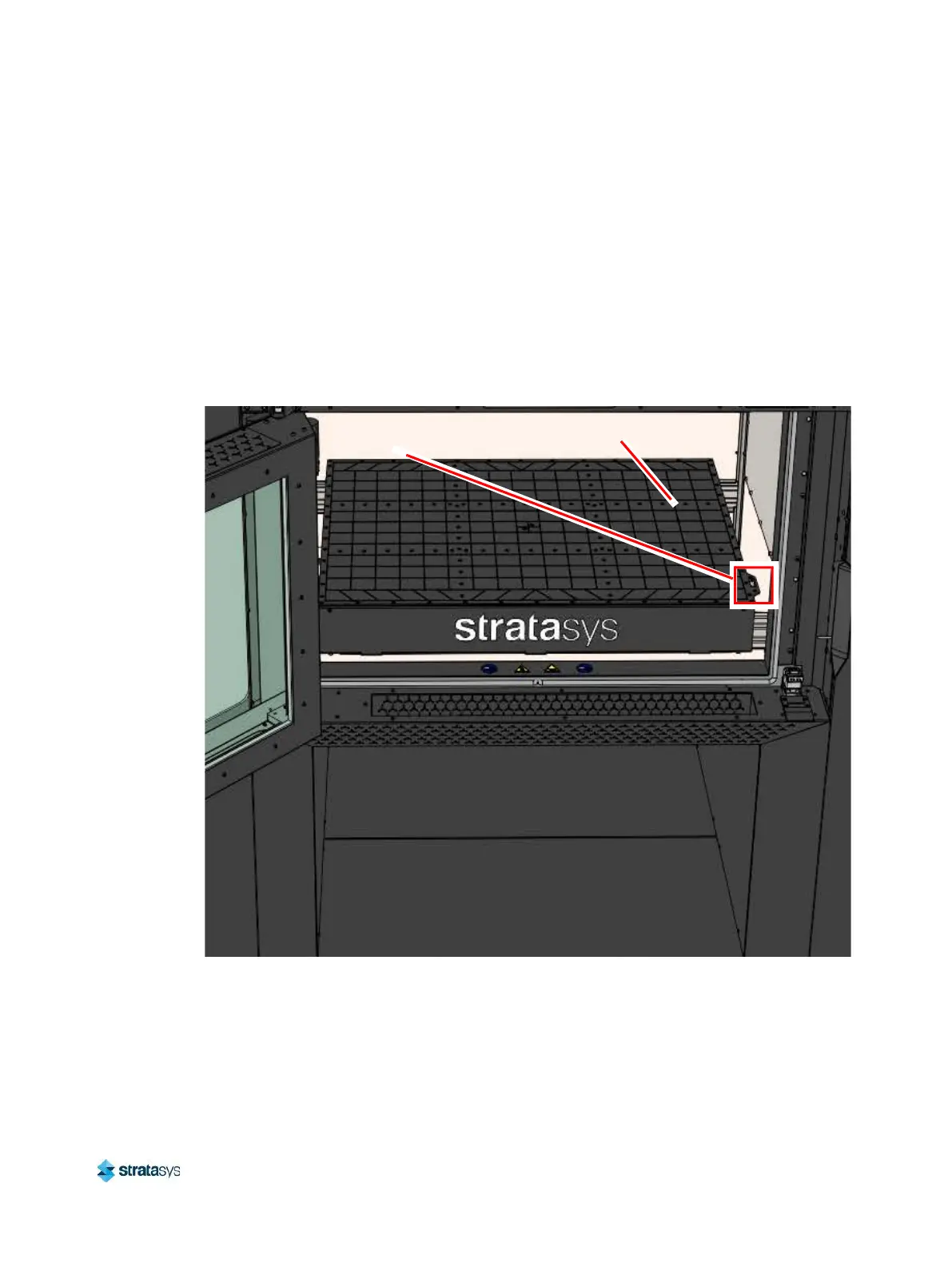

Figure 7: Platen Components
Platen
Tip Offset Calibration
Targets
