Customer Replaceable Units 3.3/5/12 VDC ATX Power Supply
Page 191
© Copyright 2021 Stratasys. All rights reserved.
3.3/5/12 VDC ATX Power Supply
Required Tools
• 3 mm hex wrench
Removing the 3.3/5/12 VDC ATX Power Supply
1. Power OFF the printer. See “Powering Off” (page 182).
2. Open the electronics bay access doors, see “Electronics Bay Access Doors” (page 184).
3. Disconnect the input power cable from the power supply.
4. Disconnect the power supply cables from the I/O board (J16, J19, J20, J29).
5. Using a 3mm hex wrench, remove the power supply bracket mounting screw. See
Figure 30.
6. Lift the bracket slightly to disengage it and remove the power supply from the electronics
bay.
7. Remove the power supply from the bracket.

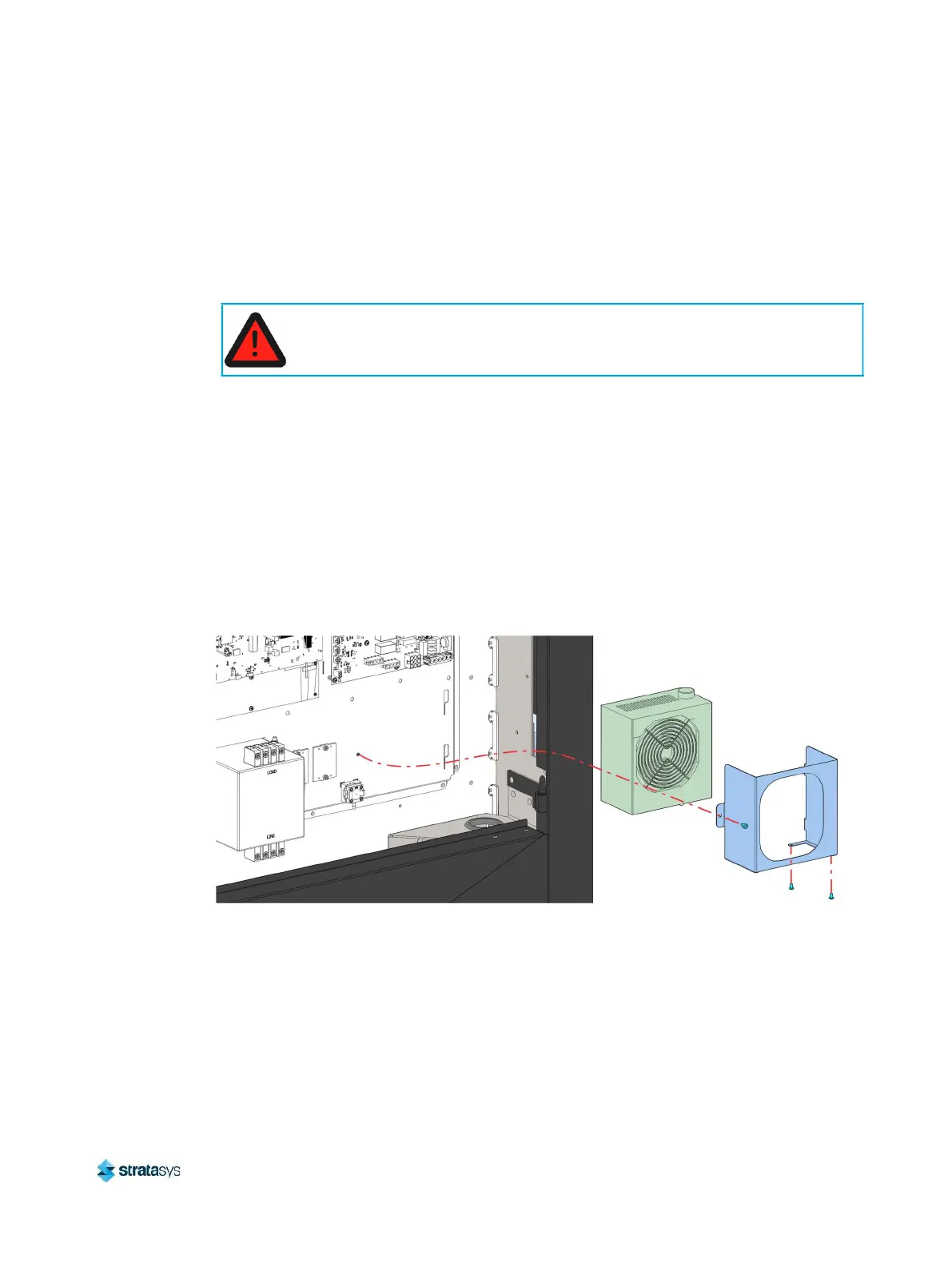

Figure 30: 3.3/5/12 VDC ATX power supply mounting location
Always perform lockout-tagout of the AC power cord in accordance with
customer site procedures.
