Working with the Materials Page Viewing Material Details
Page 70
© Copyright 2021 Stratasys. All rights reserved.
• Type: the type of material in the material coil box. If applicable, material color is also
indicated (material color is also indicated within the center of the Material Status Icon within
the left portion of the screen).
• Current Volume: current volume of material in the material coil box in cubic inches. This is
also indicated via the percentage displayed within the Material Status Icon within the left
portion of the screen.
• Total volume: total volume of material available, in cubic inches, when the material coil box
was initially installed.
The buttons directly below this information allow you to load or unload material as needed or
cancel a load/unload in process (see “Material Load Controls” (page 71) for details). Please
note that the functionality and visibility of these buttons will depend on the material load status.
The left portion of the screen displays the same Materials Status Icon as is displayed on the
Materials page (see Figure 25 (page 61)). The number displayed within the top of the icon
indicates which material port the material is loaded into. The colored bars (displayed within the
center of the icon) and percentage (displayed at the bottom the icon) indicate the current
volume and color of the material in the material coil box. As material is used to build a part, the
number of colored bars and the percentage will decrease to indicate the amount of material
consumed. The name of the type of material in the box is displayed at the bottom of the icon.
To close this page and return to the main Materials page, press the Back button within the
header of the page.

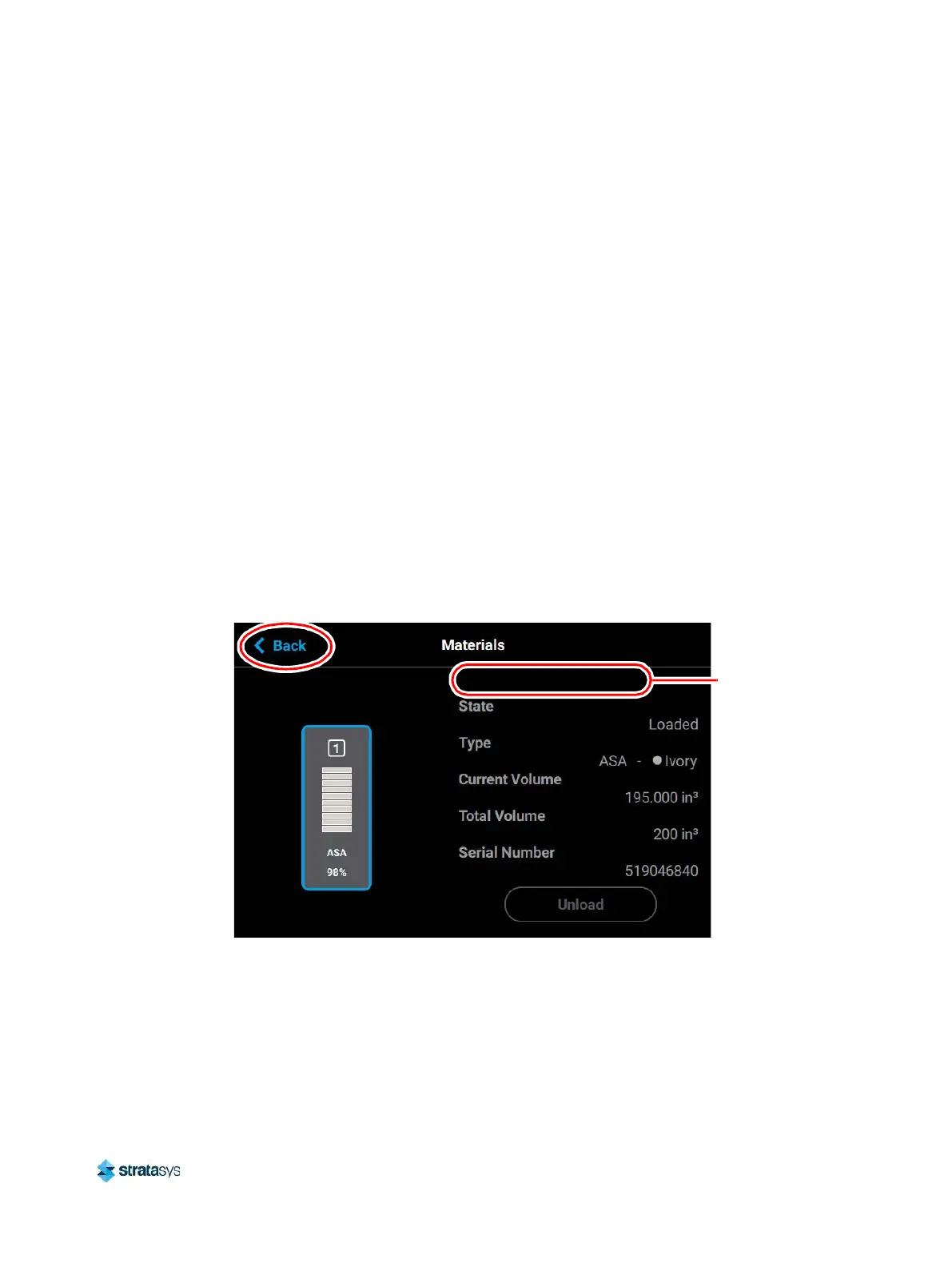

Figure 29: View Material Details
