Model 4200A-SCS Prober and External Instrument Control Section 6: Using a Model 82 C-V System
4200A-913-01 Rev. A December 2020 6-11
Place capacitance source values in a spreadsheet
(DisplayCableCompCaps82)
To place capacitance source values in a spreadsheet:
1. In the project tree, select display-cap-file or displaycablecomp. The parameter list for the
DisplayCableCompCaps82 user module is shown in the figure below.

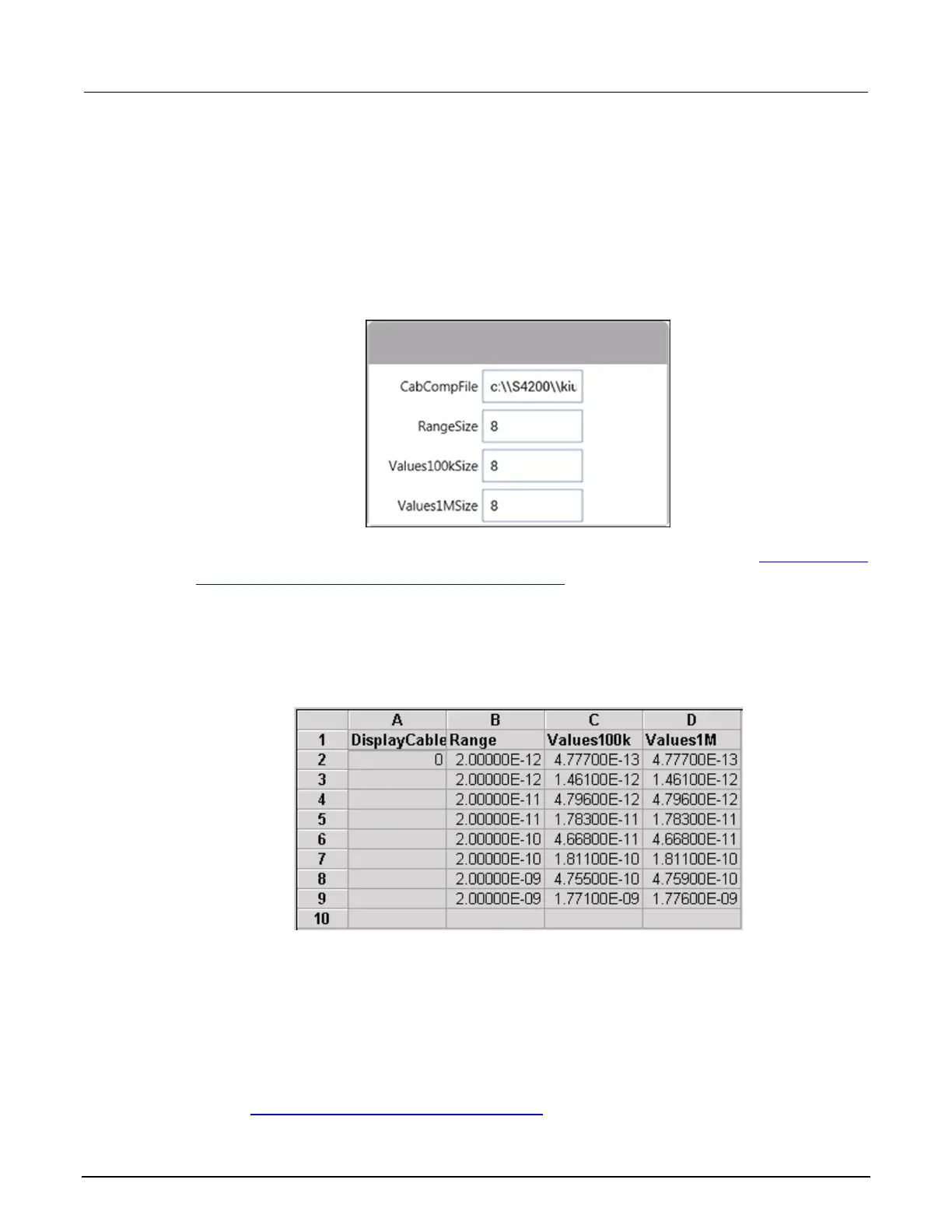

Figure 86: DisplayCableCompCaps82 user module
2. Ensure that the CabCompFile field has the same file directory path that is used in Enter and save
capacitance source values (SaveCableCompCaps82) (on page 6-10).
3. Set the other fields to 8.
4. Click Run. The calibration source values entered into the action are placed into its spreadsheet.
5. Select Analyze. The sheet displays the values. An example spreadsheet is shown here.
Figure 87: display-cap-file spreadsheet with capacitor source values
Compensate for cable capacitance (CableCompensate82)
To compensate for cable capacitance:
1. In the project tree, select cable-compensate or cablecomp.
2. Select Configure.
3. Ensure that the CabCompFile field of the parameter list has the same file directory path that is
used in Enter and save capacitance source values (on page 6-10).
