Tektronix Keithley 4200A-SCS User Manual

Section 3: Configure and use a Series 700 Switching System Model 4200A-SCS Prober and External Instrument Control
3-8 4200A-913-01 Rev. A December 2020
13. Open MTRX1 in the System Configuration list.
14. Select CARD1. The Properties for the 7072 Matrix Card are displayed, as shown in the following
figure.
15. Complete the Card Rows Assignments according to how you connected the instruments to the
7072. For this example, the assignments are:
▪ Row A - SMU1 Force
▪ Row B - SMU2 Force
▪ Row C - SMU3 Force
▪ Row E - GNDU Force
▪ Row G - CVU1 CVH_CUR
▪ Row H - CVU1 CVL_CUR
16. Under Card Columns Assignment, designate at least the first four columns with pin assignments
that match their column number. For example, Pin 1 Force to column 1.

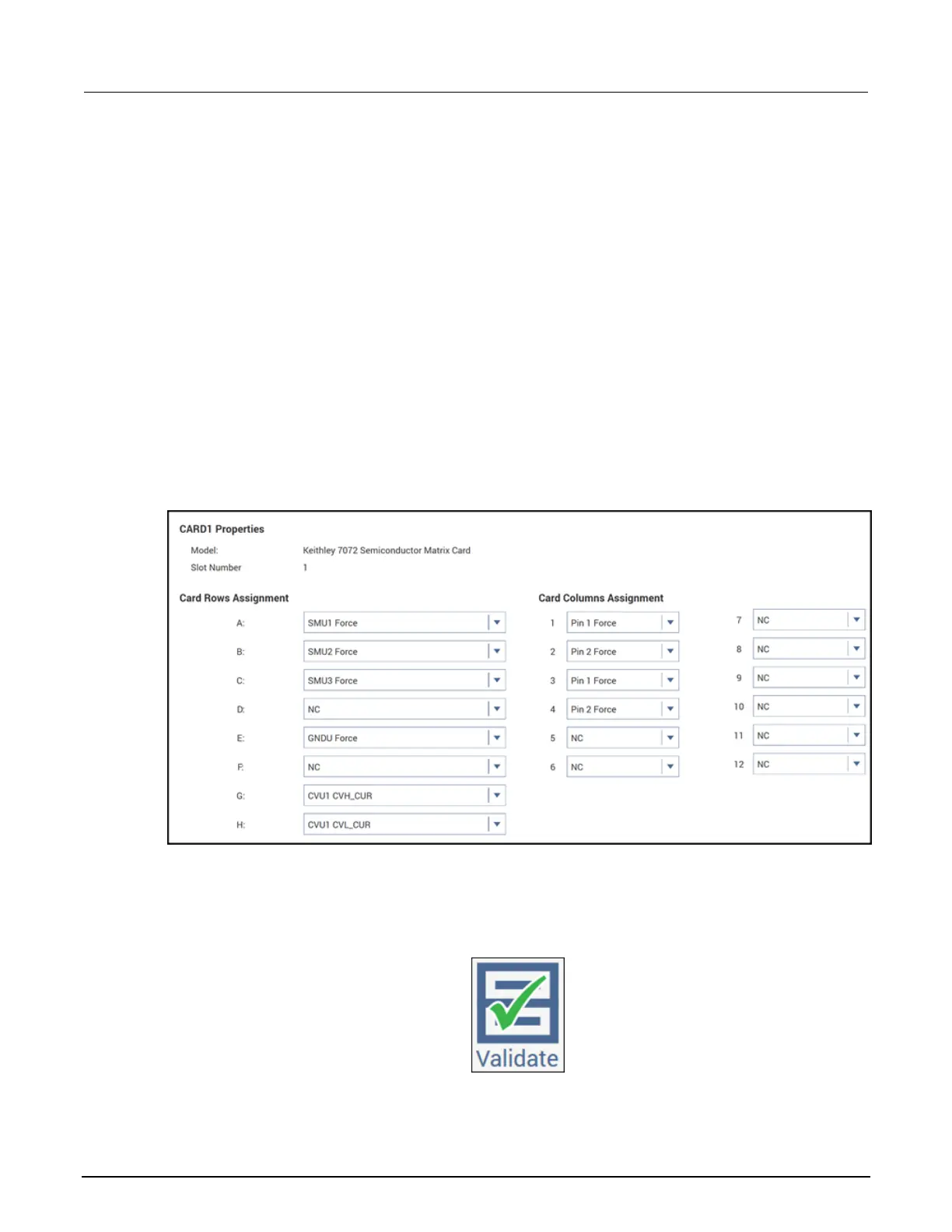

Figure 35: Completed Properties pane for the 7072 Matrix Card
17. From the KCon toolbar, select Validate to ensure that the switching system is connected
properly.
Figure 36: Validate icon
