17. Apply a bead of sealant to the edge of the right side
panel.

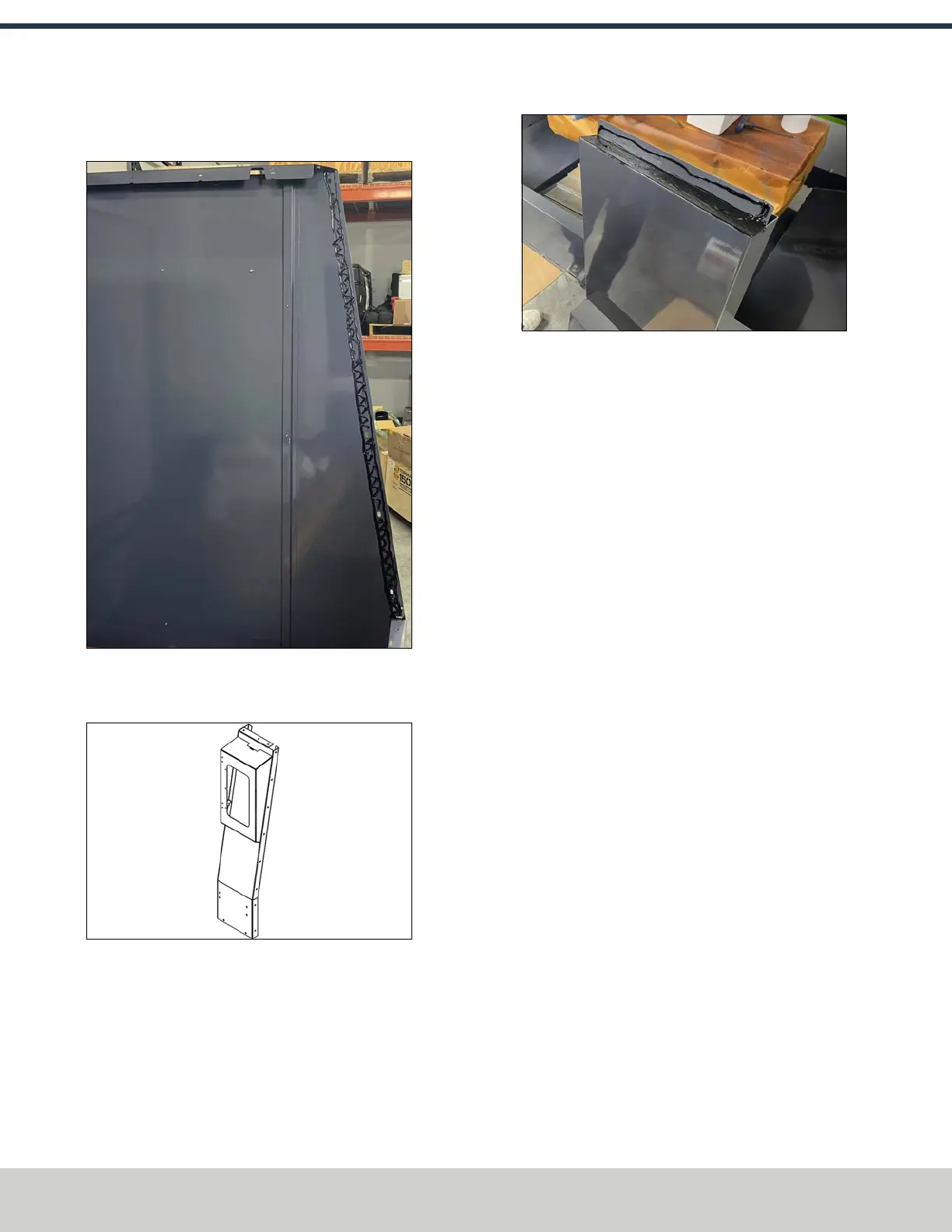

Figure 4-35: Example of sealant applied to the edge
of the right side panel.
18. Identify the front right panel (PN 51269).
Figure 4-36: Front right panel.
19. Apply a bead of sealant to the bottom edge of the front
right panel.
Figure 4-37: Example of sealant applied to the bottom
edge of the front right panel.
©Tormach® 2024
Specifications subject to change without notice.
Page 50 UM10811: 1500MX Operator's Manual (Version 0424A)
For the most recent version, see tormach.com/support
4: INSTALLATION
