7.1 Functions on the machine

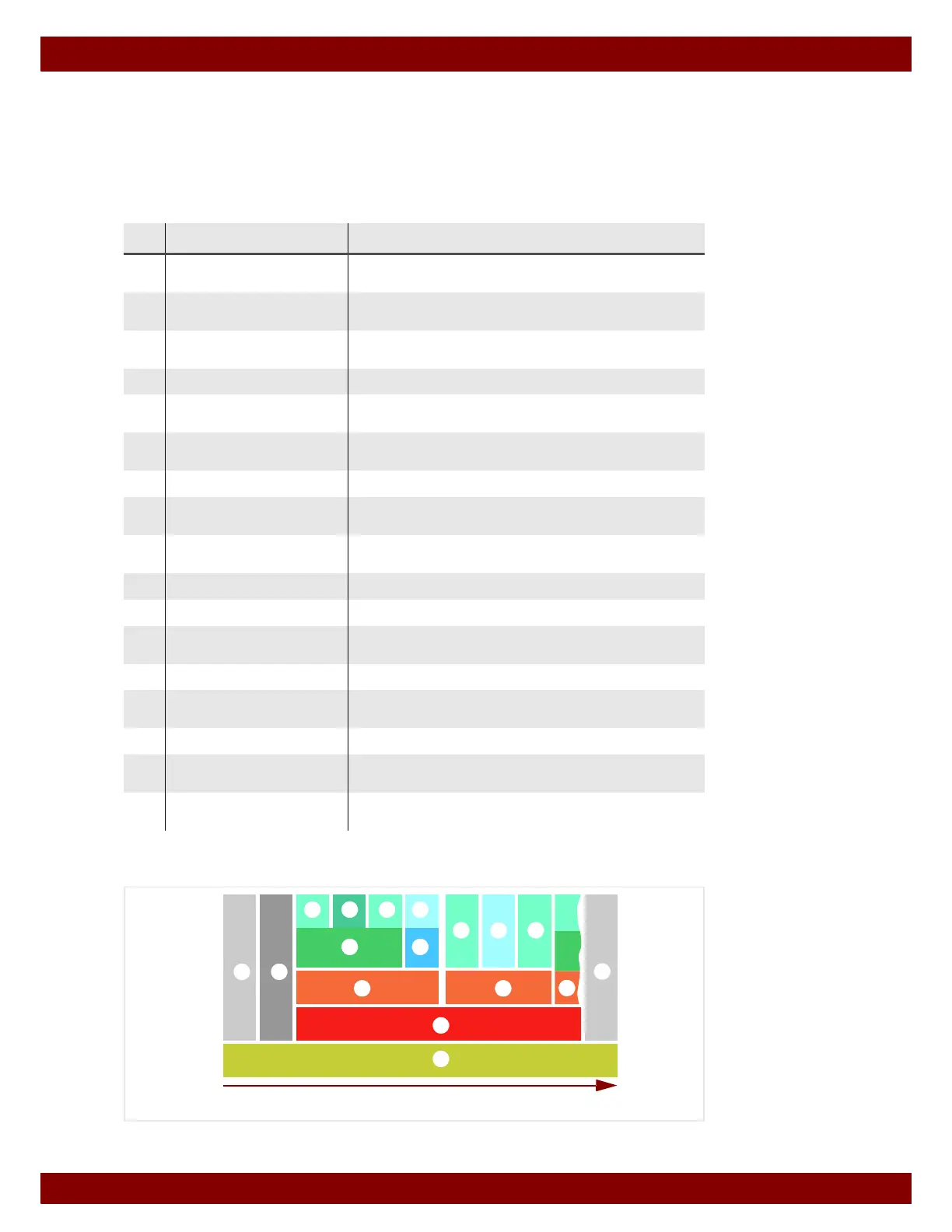

The illustration shows all individual actions in their chronological context.
Action Meaning
B
Workpiece pretreatment Pretreatment of the workpiece surface for better ink
absorption and ink adhesion.
C
Position workpiece Automatic transport of the workpiece to the printing posi-
tion.
D
Open cliché The ink cup is positioned so that the print image on the cli-
ché is exposed.
E
Cliché stroke Movement of the pad to the open cliché.
F
Close cliché The ink cup is positioned so that it is above the print image
on the cliché.
G
Ink absorption Entire process of the ink absorption of the pad from the cli-
ché.
H
Workpiece stroke Movement of the pad to the workpiece.
I
Ink release Movement of the pad with transfer of the ink to the workpi-
ece.
J
Print cycle Ink absorption and ink release. (The application of a single
colour).
K
Assume cleaning position The pad is positioned over the cleaning tape.
L
Cleaning stroke Movement of the pad to the cleaning tape.
M
Leave cleaning position The pad or the cleaning tape is moved to the home posi-
tion again.
N
Cleaning cycle Entire pad cleaning process.
O
Further printing and
cleaning cycles
Printing and cleaning cycles can be carried out several
times. (The ink can be applied several times.)
P
Print cycle Entire workpiece printing procedure.
Q
Workpiece after-treatment After-treatment of the ink application for drying or harde-
ning.
R
Work cycle Entire process with all upstream and downstream workpi-
ece processing steps.
B C
D E F H
G I
J
K
P
N
O
M
t
L
Q
R
