Cliché Assembly (EU) 67
15.3 Cliché installation
To allow the cliché to be assembled, the pad should not yet be installed in the machine.
See Chapter 15.2.1 "Remove pad" on page 64.
15.3.1 Insert cliché

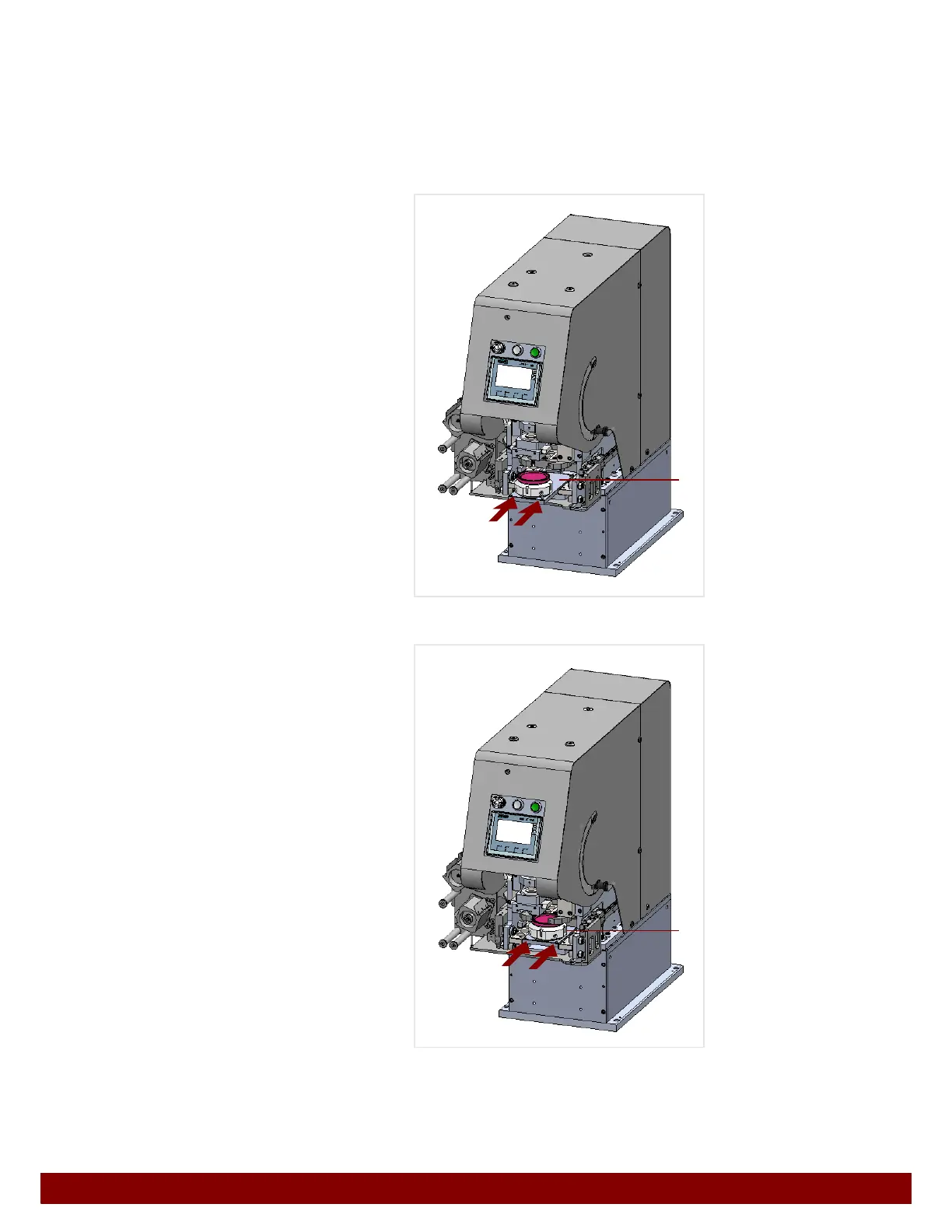

Insert the cliché B together with the ink
cup in the cliché holder and push it to the
back.
When dealing with clichés made from plas-
tic or thin steel, the cliché is inserted
together with the support plate.
See Chapter 17.1 "Cliché types" on
page 81.
Push the cliché
B back as far as the limit
stop.
B
B
