96 Express Liner Ink Cup

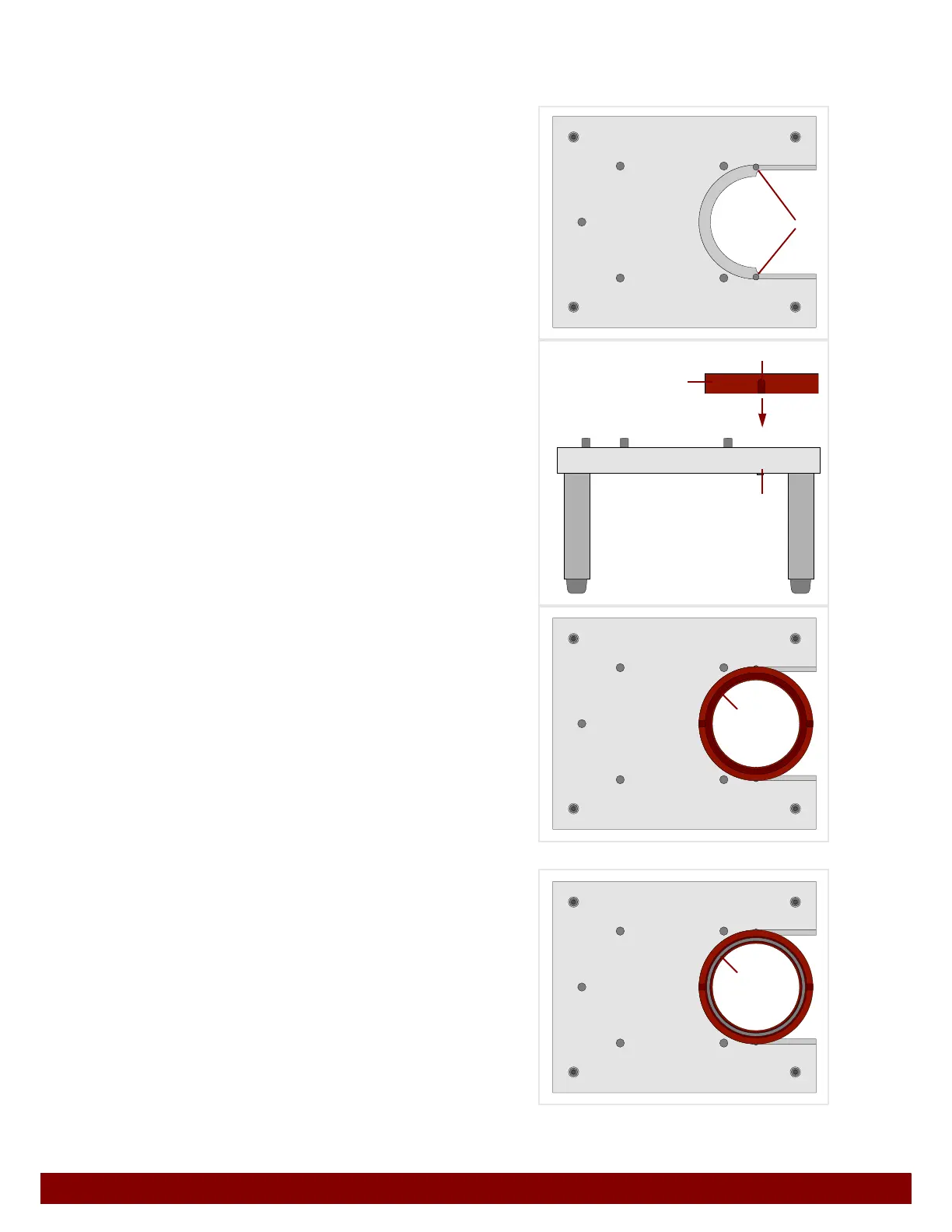

19.6 Ink cup assembly
The ink cup is assembled on the setup table.
In order to correctly position the ink cup, the
setup table is fitted with two pins
B.
During assembly the pins grip the lateral
grooves in the ink cup frame.
Insert the ink cup frame
C in the notch of
the setup table
D in such a way that the
pins insert into the lateral grooves
E.
The radial groove
F for the O-ring must be
positioned on the top.
Insert the O-ring
G into the frame’s radial
groove.
B
C
D
E
F
G
