54 Pad Assembly Magnetic Holder
14.2 Overview
The pad printers can be equipped with pad sliding couplings and pads of different sizes
and designs.
In the majority of cases, the principle structure of the pad sliding couplings is identical.
Slight deviations from the illustrated images are possible.

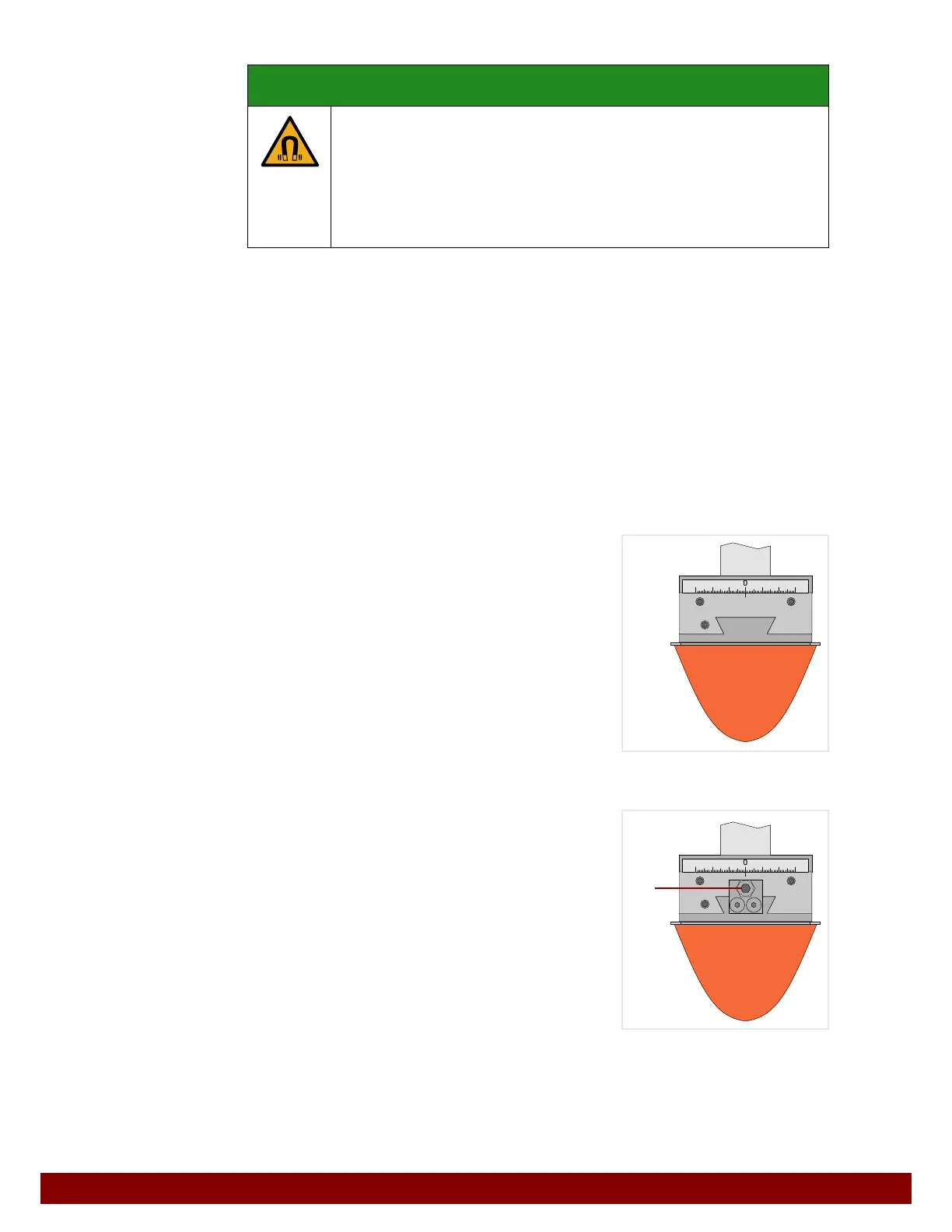

14.3 Versions
14.3.1 Pad coupling without limit stop
When inserting the pad coupling, the pad position is not
fixed in a reproducible manner.
Manual setting of the pad position is required.
14.3.2 Pad coupling with limit stop
The set tampon position can be fixed in a reproducible
manner with the limit stop screw
B.
Once the limit stop screw has been correctly set, the pad
coupling can be removed and, when inserting, can sim-
ply be pushed into the guide until the limit stop is
reached.
SAFETY INSTRUCTION
Malfunctions may be caused by magnetic fields.
Magnets generate a wide-reaching and strong magnetic field. Amongst
other things, they can damage televisions, notebooks, computer hard dri-
ves, credit and debit cards, data carriers, mechanical clocks, hearing aids
and speakers.
• Keep magnets away from all devices and objects that can be damaged
by strong magnetic fields.
B
