52 Pad Assembly Screw Fastening
13.4.3 Pad position setting

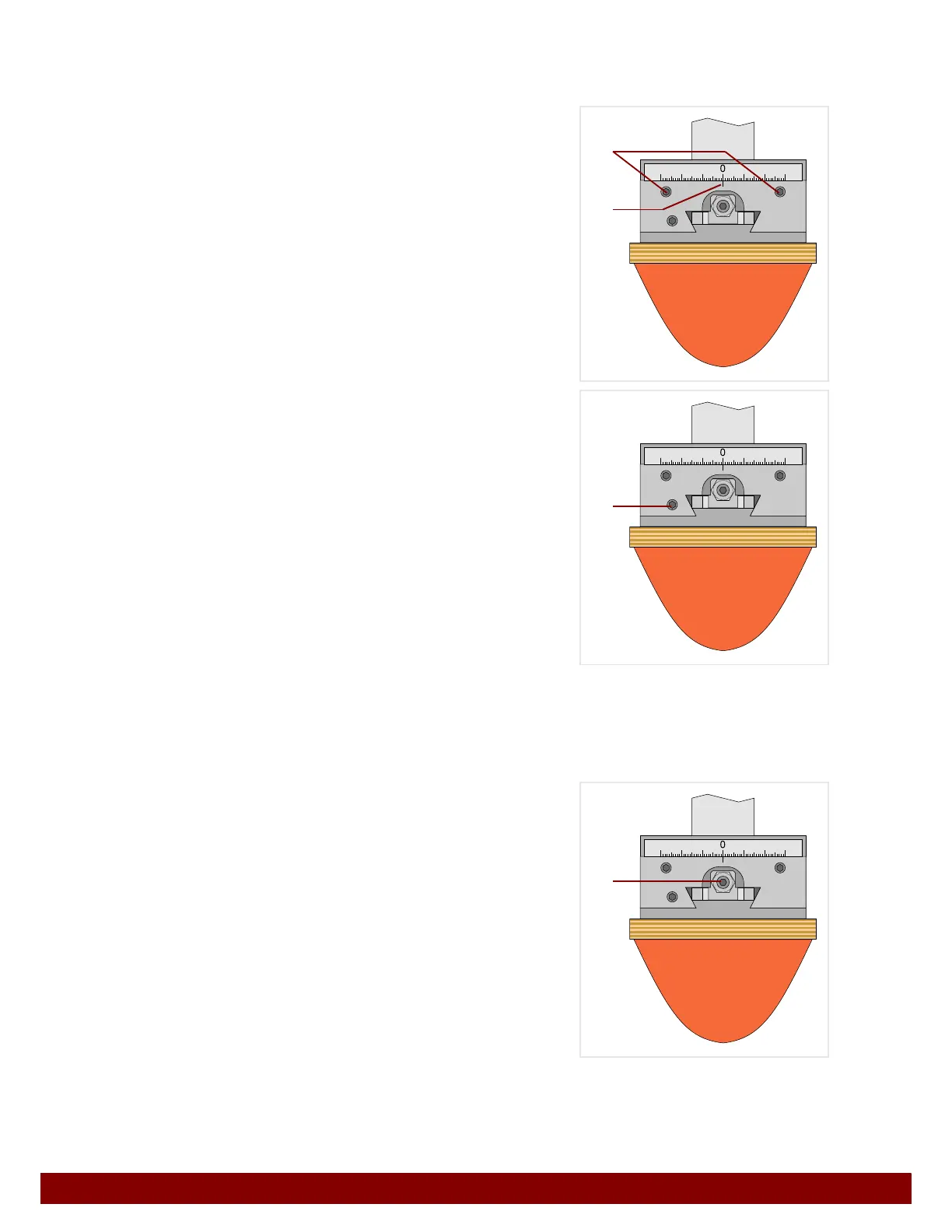

The pad position can be set with the pad sliding coupling.
Left / right movement
Unscrew clamping screws
B.
The pad can be moved to the left or right.
The line marks
C on the ruler indicate the posi-
tion.
Forward / backward movement
Unscrew clamping screw
D.
The pad can be moved forwards or backwards.
All clamping screws must be retightened following
the adjustment of the pad position.
Set the limit stop screw
The set pad position can be fixed in a reproduci-
ble manner with the limit stop screw
E.
In order to do so, undo the lock nut and set the
screw in such a manner that its tip touches the
pad sliding coupling. Then retighten the lock nut.
Once the limit stop screw has been correctly set,
the pad coupling can be removed and, when
inserting, can simply be pushed into the guide
until the limit stop is reached.
B
C
D
E
