15.2 Cliché removal
15.2.1 Remove pad
The pad should be removed in order to pre-
vent damage and to ensure better accessi-
bility.

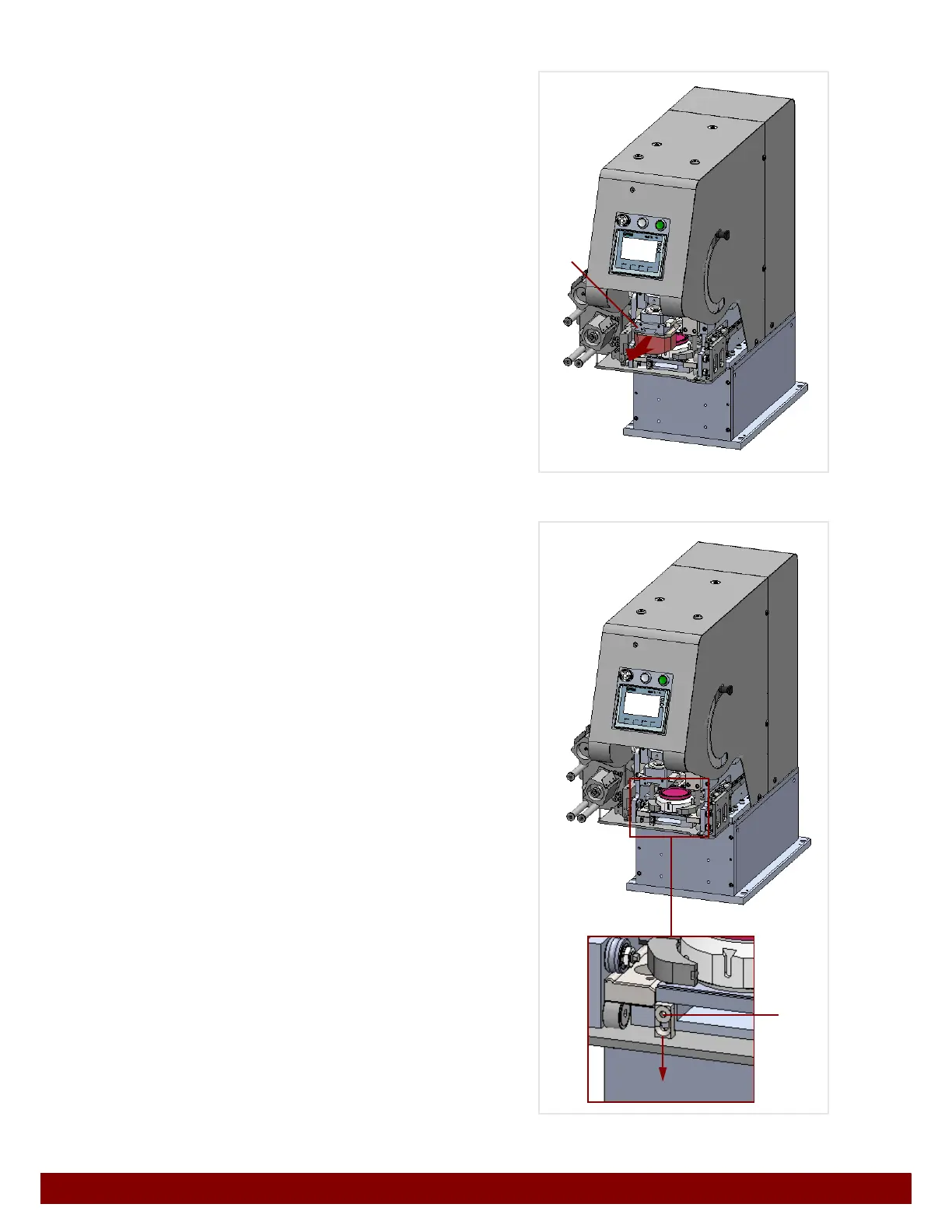

Untighten the clamping screw
B on the
pad coupling.
Pull the pad forwards out of the pad coup-
ling.
15.2.2 Unfasten cliché
Untighten the clamping screw C and push
the clamping block down.
B
C
