Transtech SealCup Express - Overview; Ink Cup Individual Components; Tools; Setup Table

92 Express Liner Ink Cup
19.2 Overview
Pad printers can be fitted with ink cups of different sizes and designs.
In the majority of cases, the principle structure of the ink cups is identical. Slight deviations
from the illustrated images are possible.
Assembly works are to be performed on a level and soft underlay (e.g. rubber mat) in
order to ensure that the sensitive blade edge of the doctor ring is not damaged.

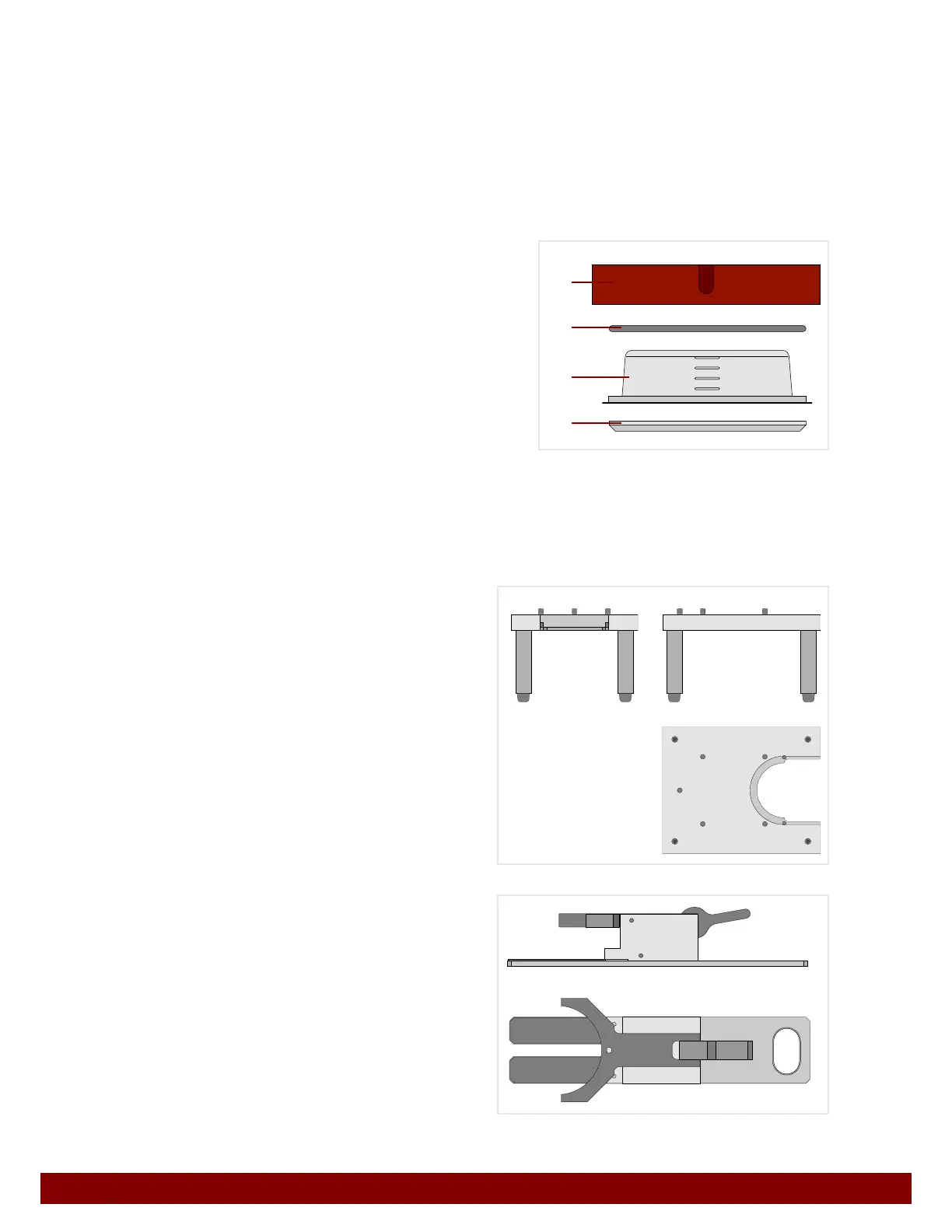

19.3 Ink cup individual components
B
Space frame
C O-ring
D Ink container
E Doctor ring
19.4 Tools
Special tools are required in order to connect the ink cup and the cliché in the correct posi-
tion.
19.4.1 Setup table
The ink cup and the cliché are con-
nected on the setup table.
Views:
B from front
C from side
D from above
19.4.2 Setup tool
The setup tool is used to fix the ink
cup and cliché into position and hold
them together after assembly.
Views:
B from side
C from above
C
B
D
E
BC
D
B
C
