40 Pad cleaning
12.2 Inserting the cleaning tape
12.2.1 Pad cleaning – left-hand version
B

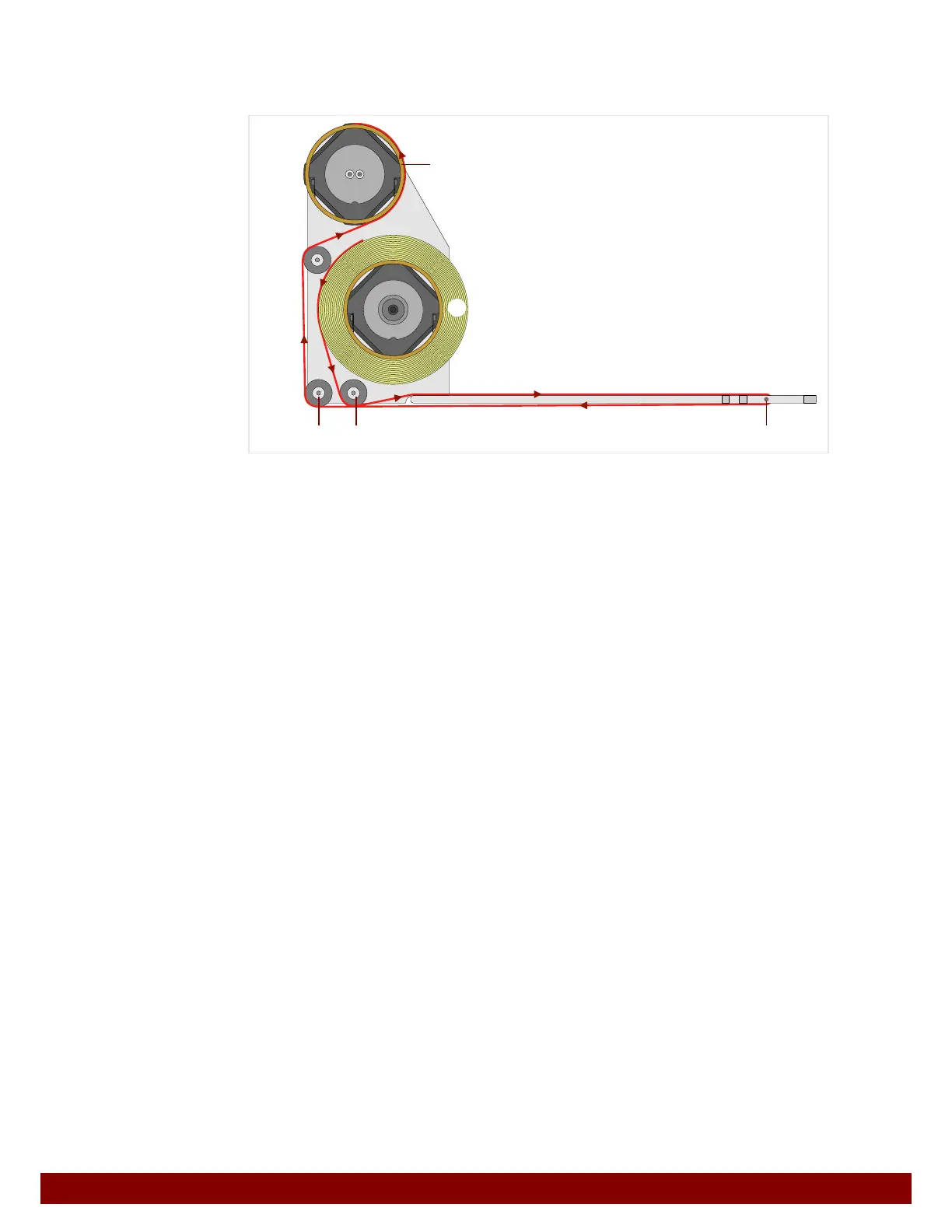

Fit a new roll of cleaning tape to the lower roll holder. In doing so, pay attention to the
unrolling direction.
C Guide the cleaning tape under the deflection roller, out the other side, and then
upwards.
D Guide the cleaning tape to the right over the table surface, around the deflection roller
in the table surface and then downwards.
E Guide the cleaning tape to the left under the table surface, around the deflection roller
and then upwards.
F Guide the cleaning tape around the deflection roller and to the right.
G Fit the empty roll core onto the upper roll holder and stick the cleaning tape on the roll
core. The cleaning tape can be made taut by turning the lower roll of tape backwards.
D
E
F
B
C
G
