Pad Assembly Magnetic Holder 55

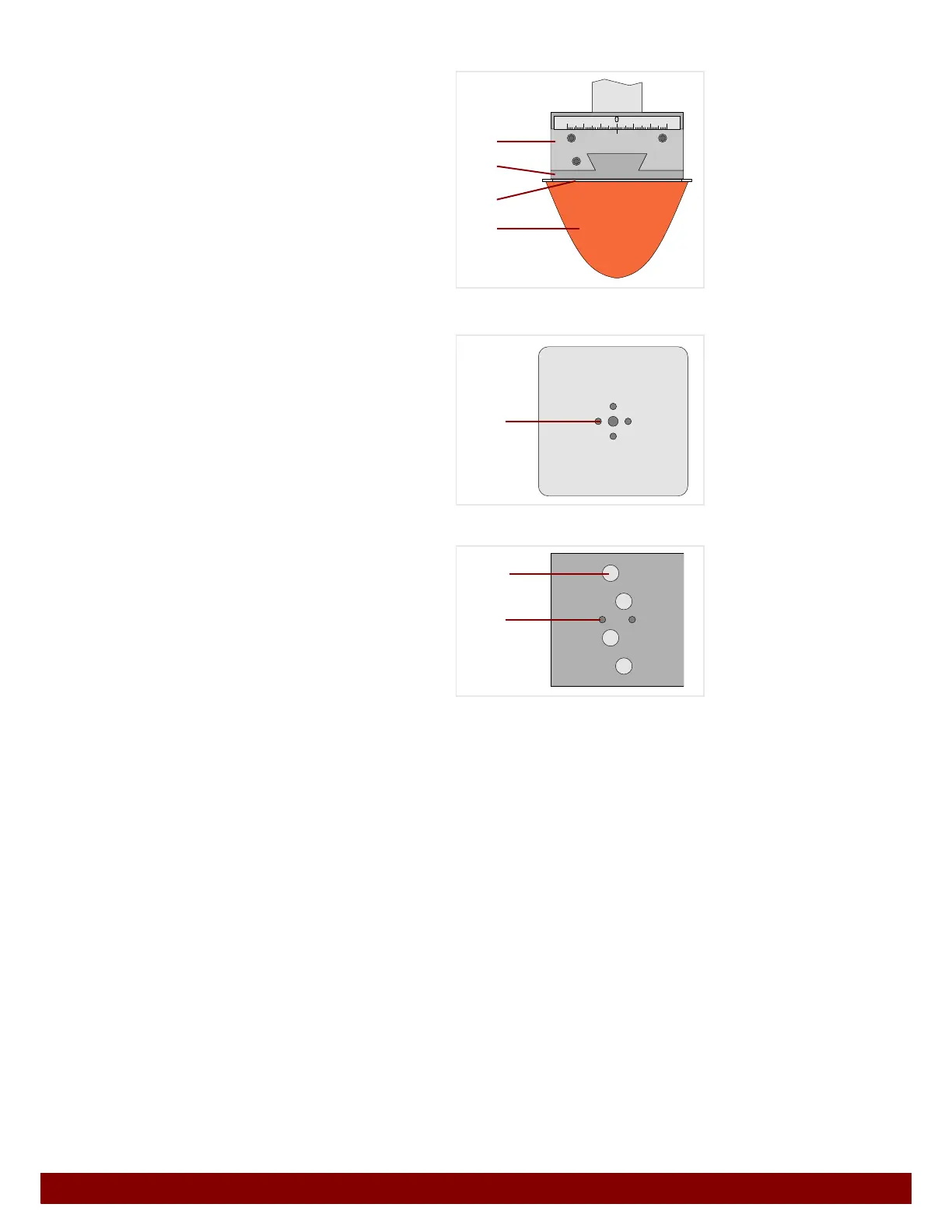

14.4 Pad coupling without limit stop
B
Pad sliding coupling
C Pad coupling
D Pad base plate
E Pad
The pad base plate is manufactured from a mag-
netic sheet.
The holes
F enable the precise positioning of
the pad on the centering pins of the pad coupling.
The pad coupling is fitted with several
magnets
G.
There are two centering pins
H on the underside
of the pad coupling for the precise positioning of
the tampons.
B
D
E
C
F
G
H
