Cliché Assembly (US) 73
16.2.3 Attach setup tool

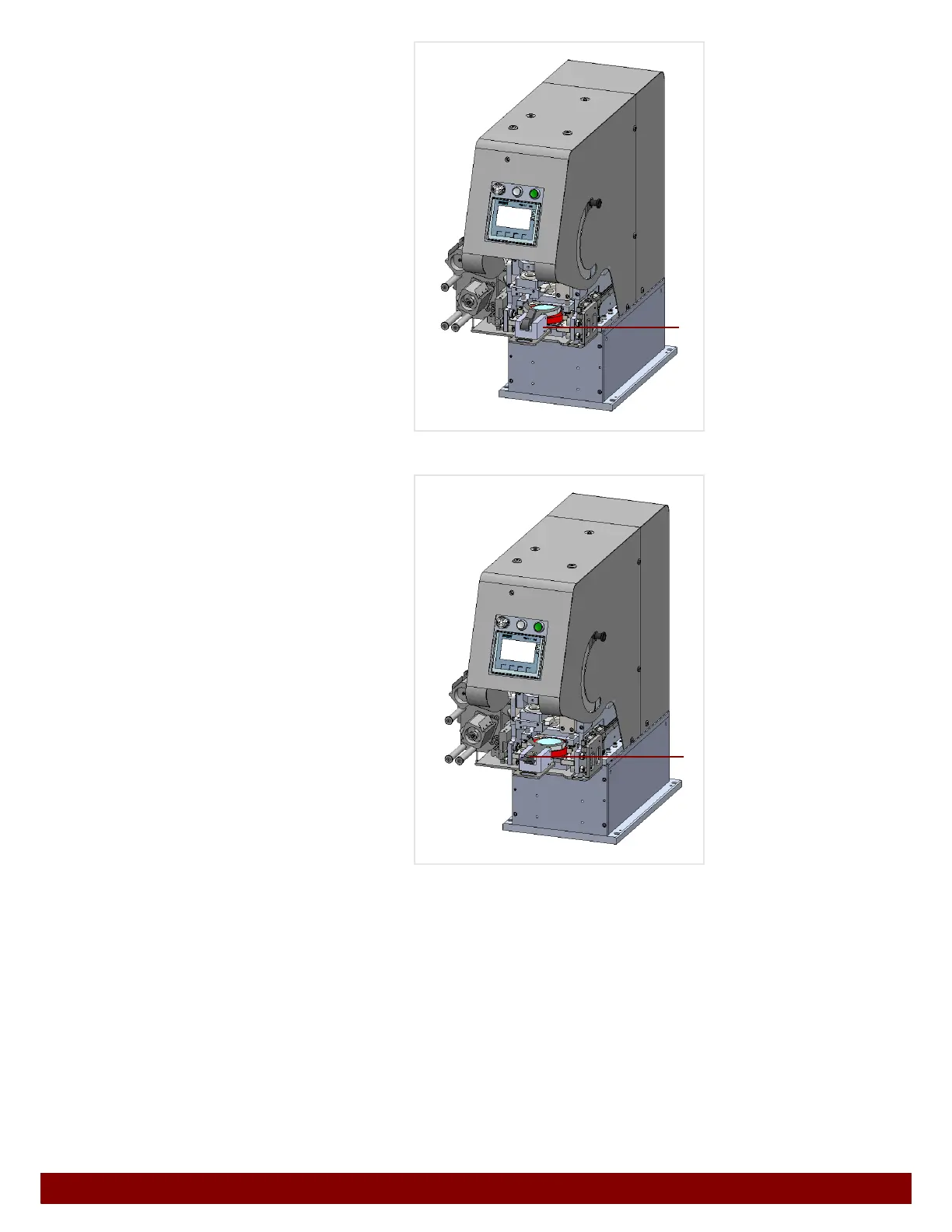

Push the setup tool D with the base plate
into the notch under the cliché in an open
position (clamping lever forwards).
Here, the clamping jack will push under-
neath the ink cup.
Pull the clamping lever
E backwards.
The clamping jack will swivel downwards
and fasten the ink cup to the cliché.
D
E
