Pad Assembly Screw Fastening 43
13 Pad Assembly Screw Fastening
13.1 Overview
The pad printing machines can be equipped with pad sliding couplings and pads of diffe-
rent sizes and designs.
In the majority of cases, the principle structure of the pad sliding couplings is identical.
Slight deviations from the illustrated images are possible.

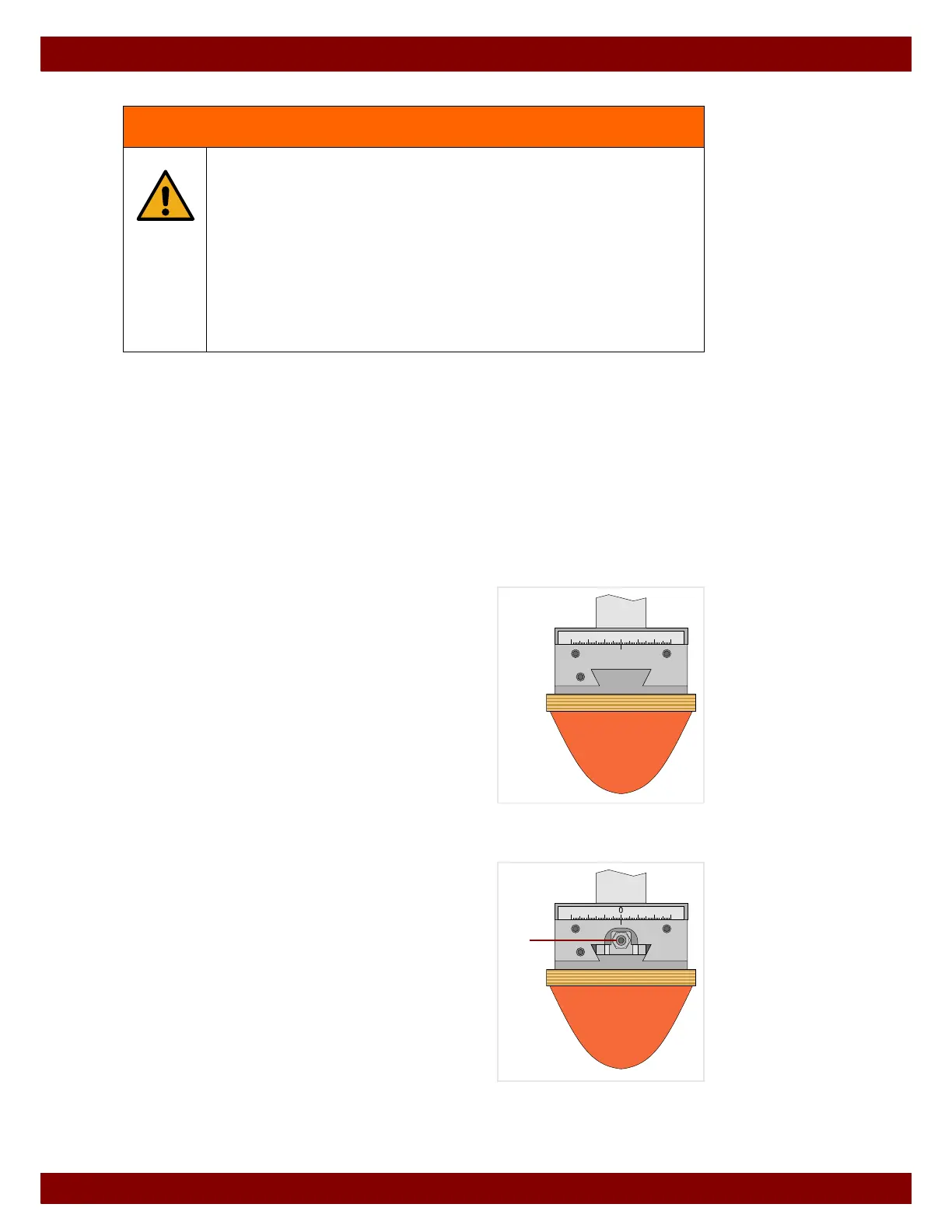

13.2 Versions
13.2.1 Pad coupling without limit stop
The pad position is not fixed in a reproducible manner
when the pad coupling is inserted.
A manual adjustment of the pad position is required.
13.2.2 Pad coupling with limit stop
The set pad position can be fixed in a reproducible man-
ner with the limit stop screw
B.
Once the limit stop screw has been correctly set, the pad
coupling can be removed and, when inserting, can sim-
ply be pushed into the guide until the limit stop is
reached.
WARNING
Danger when performing assembly work in the working area of the
machine caused by unintentionally or carelessly triggered machine
movements.
Machine movements caused by unintentional machine functions or those
triggered by a second person can lead to injuries.
• Work may only be carried out by instructed persons.
• Turn off the main switch of the machine.
• Switch off the compressed air supply.
• The pneumatic system must be unpressurised.
B
