Cliché Assembly (EU) 63
15 Cliché Assembly (EU)

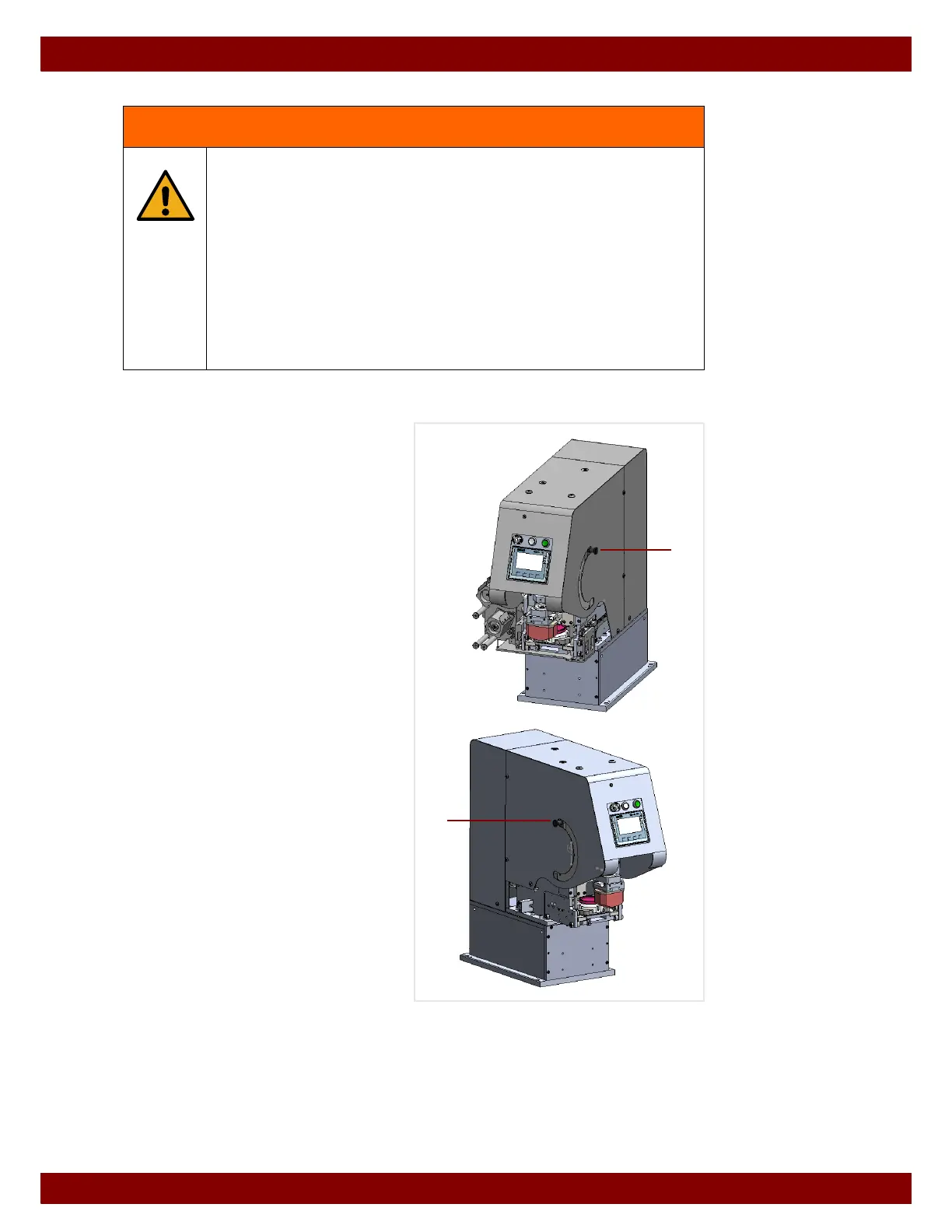

15.1 Machine versions
15.1.1 Right-hand version
In the right-hand version the ink cup fixing
lever
B is located on the right-hand side of
the machine.
15.1.2 Left-hand version
In the left-hand version the ink cup fixing
lever
C is located on the left-hand side of
the machine.
15.1.3 Assembly steps
The following assembly steps for the cliché feature the right-hand version of the machine.
For the left-hand version, the assembly is done in the same way except that the ink cup
fixing lever is operated on the other side of the machine.
WARNING
Assembly works carried out in the machine’s working space may
present a danger due to machine movements caused unintentionally
or due to lack of care.
Machine movements caused by functions which are activated unintentio-
nally or by a second person can lead to injury.
• Work may only be carried out by instructed persons.
• Turn off the main switch of the machine.
• If there is a pneumatic system, the compressed air supply must be
switched off.
• The pneumatic system must be depressurized.
B
C
