98 Express Liner Ink Cup

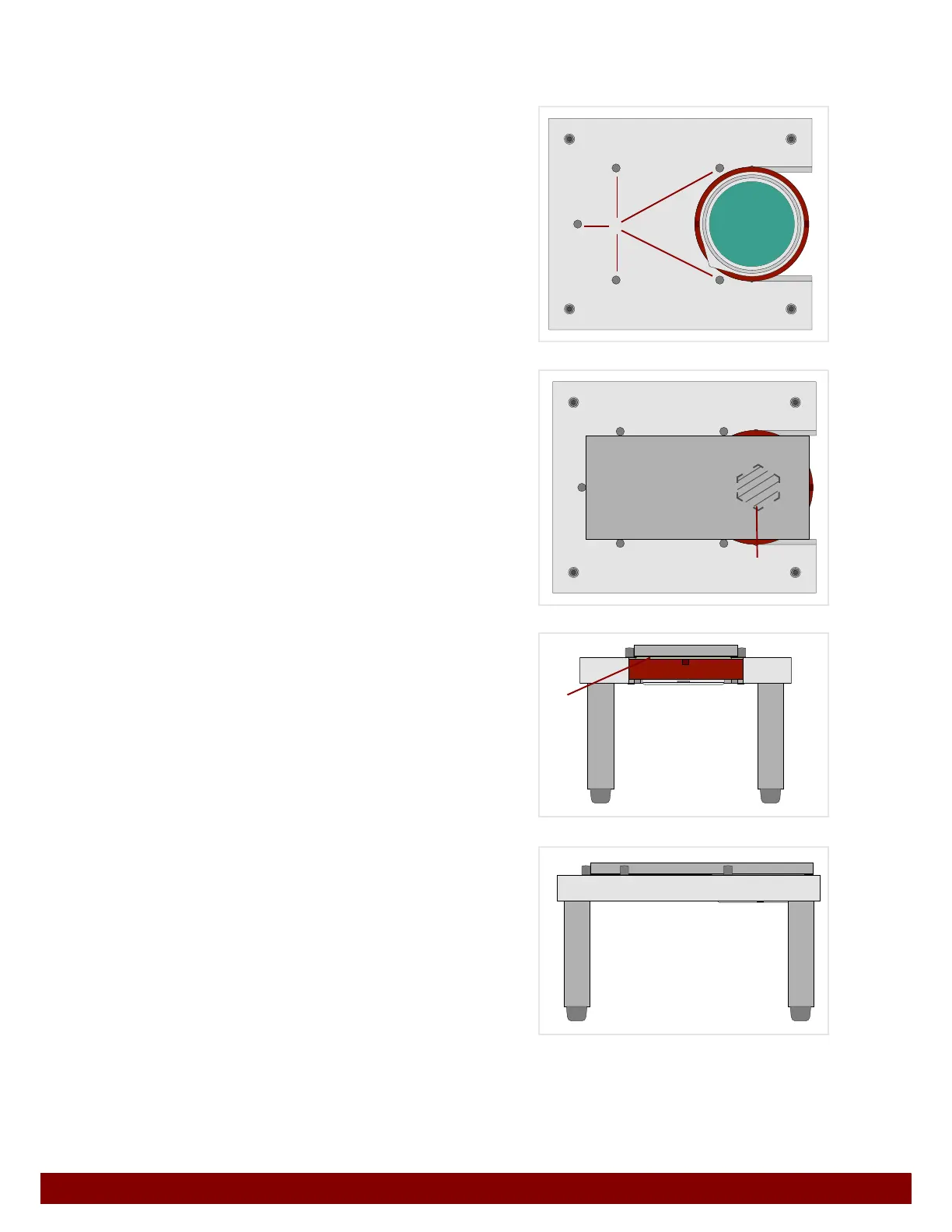

19.7 Joining the ink cup and cliché
The plastic or thin steel clichés are positioned together with the support plate.
The setup table is fitted with several pins
B to allow the cliché to be positioned cor-
rectly.
Place the cliché
C between the pins on
the setup table and push it to the left as far
as the limit stop.
Here, the print image
D in the cliché must
be positioned on the underside, over the ink
cup.
View from the front
The cliché is now resting on the blade edge
E of the ink cup.
View from side
The positions of the ink cup and the cliché
correspond exactly to the positions required
to install them in the machine.
B
C
D
E
