Express Liner Ink Cup 99

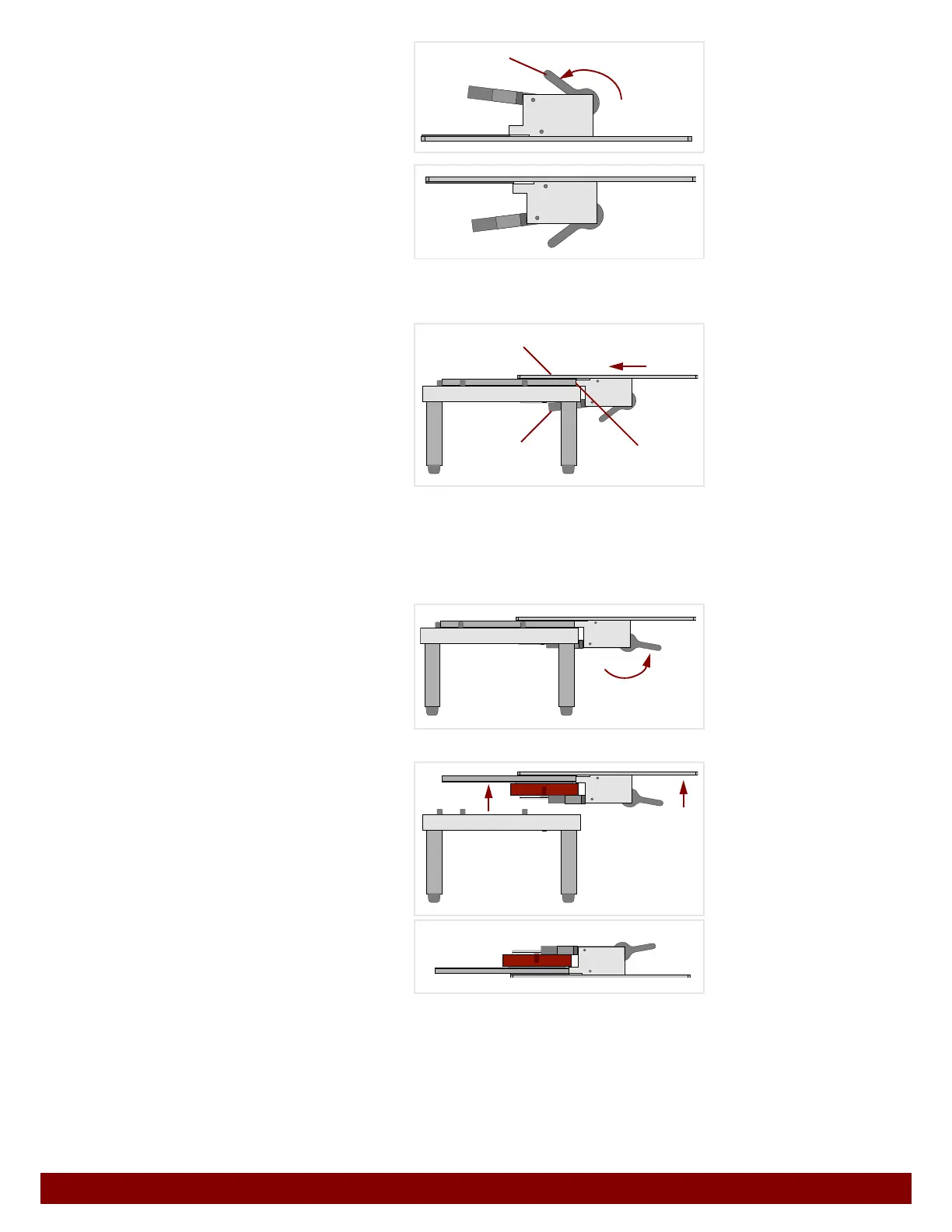

The setup tool B is used to fix the cliché
and ink cup in position for assembly.
Push the clamping lever
C of the setup
tool forwards.
Flip over the setup tool (clamping lever on
bottom).
Carefully place the setup tool on the cliché
and ink cup from the front.
The baseplate
D of the setup tool is positi-
oned on the cliché.
The clamping jack
E of the setup tool is
positioned under the ink cup.
Align the setup tool in the middle of the cliché and push it as far as the limit stop
F on the
cliché.
Pull back the clamping lever of the setup
tool.
The ink cup is pressed onto the cliché from
below with the clamping jack.
Lift the setup tool out of the setup table
together with the ink cup and the cliché.
Handle the fixed parts with care.
A collapse could result in damage or ink
leakage.
Flip over the setup tool along with the ink
cup and the cliché (clamping lever on top).
The cliché and ink cup can be installed in the machine in this fixed form.
See Chapter “Cliché assembly”.
